Removal - Convertible

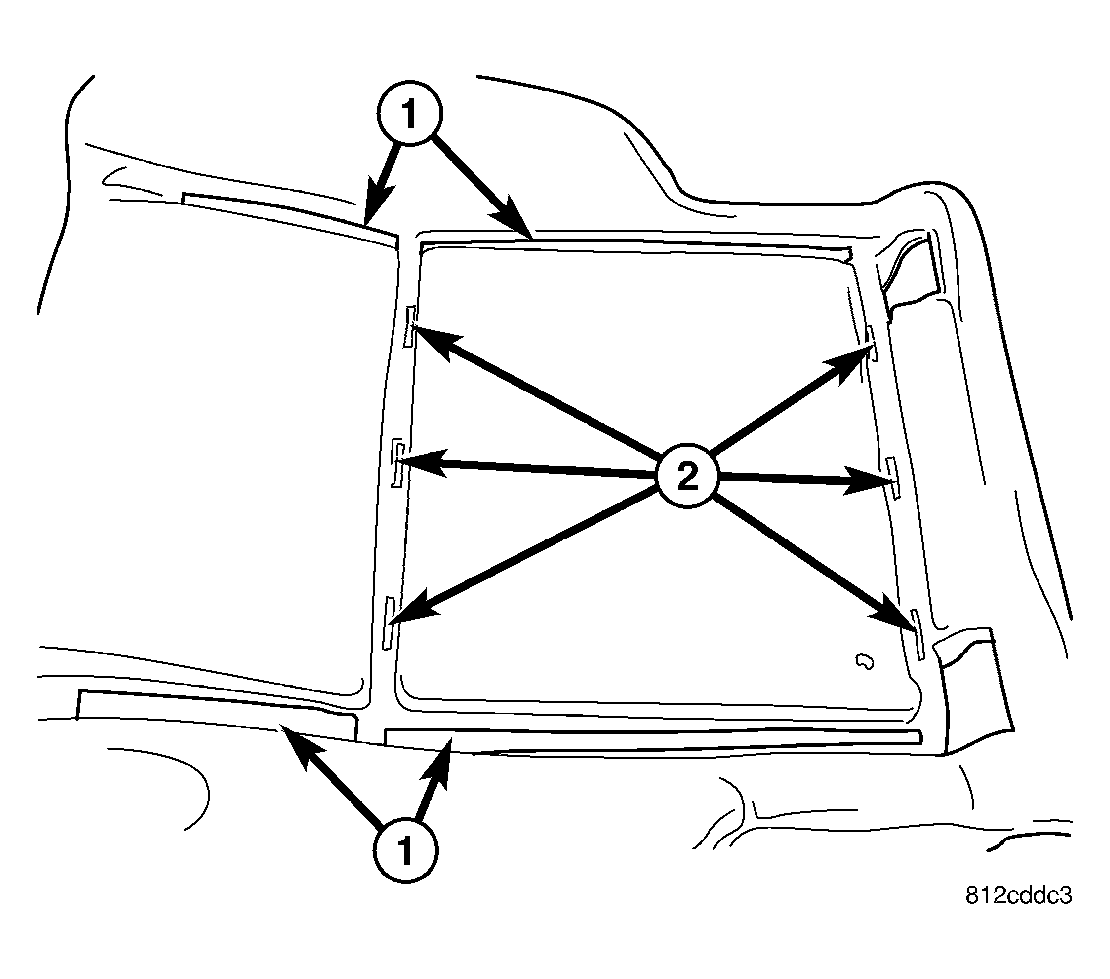

Fig 1: Rear Seat Cushion Foam
GC0022550Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOK AND LOOP
2 - HOG RINGS
  1. Remove seat from vehicle. (Refer to BODY/SEATS/REAR SEAT - REMOVAL) .
  2. Remove seat back. (Refer to BODY/SEATS/REAR SEAT BACK - REMOVAL) .
  3. Disengage J-strap attaching seat cover from the seat cushion frame.
  4. Pull cover off to the hog rings.
  5. Cut hog rings (2) attaching seat cover to seat cushion pad.
    Fig 2: Rear Seat Cushion Frame
    GC0022549Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove seat cushion cover and foam from seat cushion frame.
