Front Seat Cushion: Removal: Coupe

Fig 1: Front Seat Cushion Shield - Outboard

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREWS

Remove seat from vehicle.
Remove upper riser shield, if equipped.
Remove the seat back recliner handle/fold flat handle and front seat cushion shield. Disconnect wire connectors, if equipped.

Fig 2: Front Seat Cushion Shield Mounting Screws - Inboard
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT INNER SEAT BELT ATTACHING SCREW

2 - SHIELD ATTACHING SCREWS
Remove front inner seat belt attaching screw (1) and inboard seat side shield.

Fig 3: Front Side Attaching Screw Front Cushion
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SIDE AND REAR ATTACHING SCREW

2 - FRONT SEAT CUSHION
Remove front seat cushion screws (1), two front side and two rear.

Fig 4: Rear Attaching Screw - Front Seat Cushion
Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR ATTACHING SCREW

2 - FRONT SEAT CUSHION
Disconnect any electrical connectors and wire ties from the bottom of seat cushion, if equipped.
Remove track and recliner assembly.

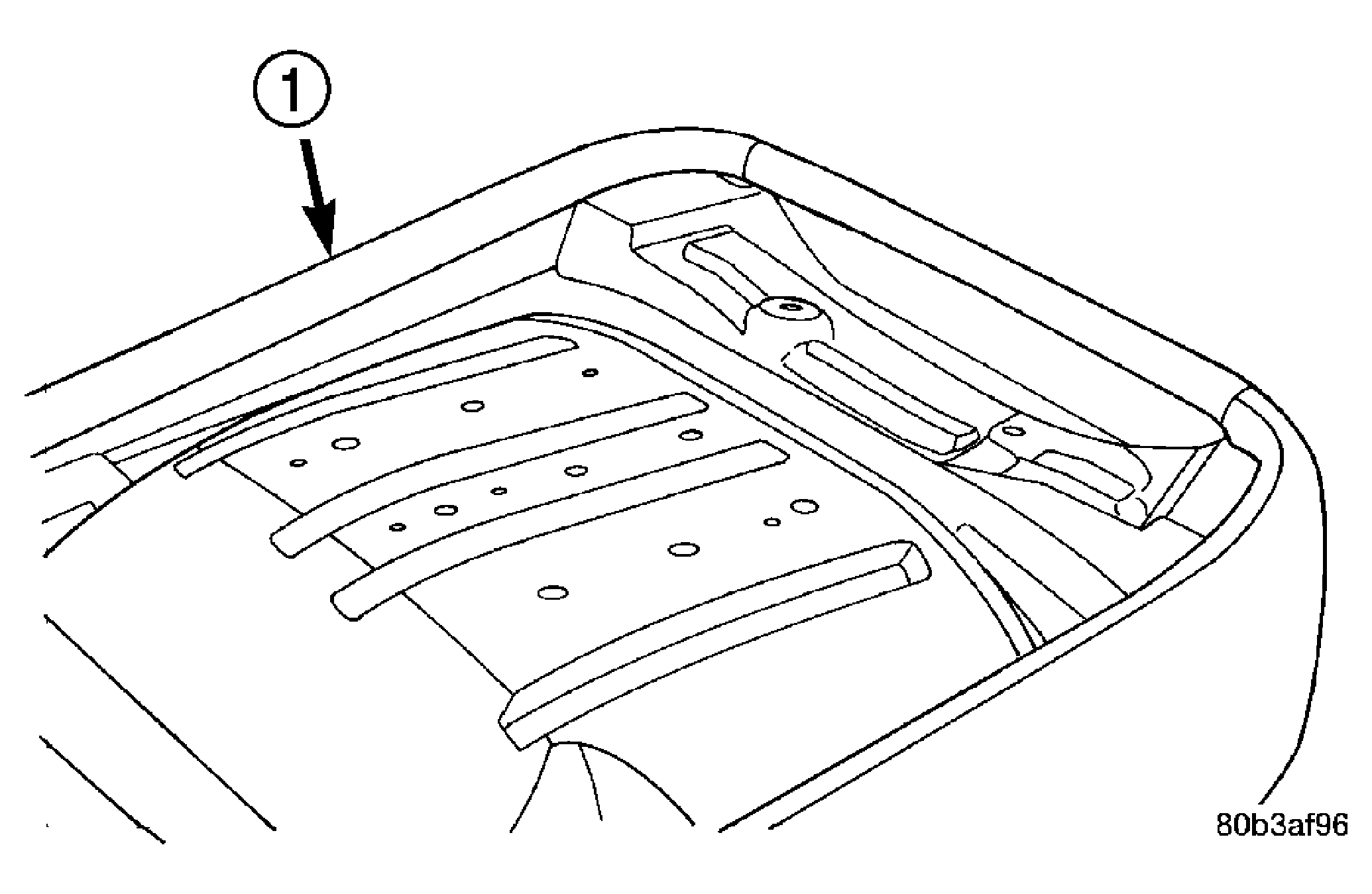

Fig 5: Front Seat Cushion
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SEAT CUSHION
Remove seat cushion (1) from seat frame.
