Front Seat Cushion Cover: Removal: Coupe

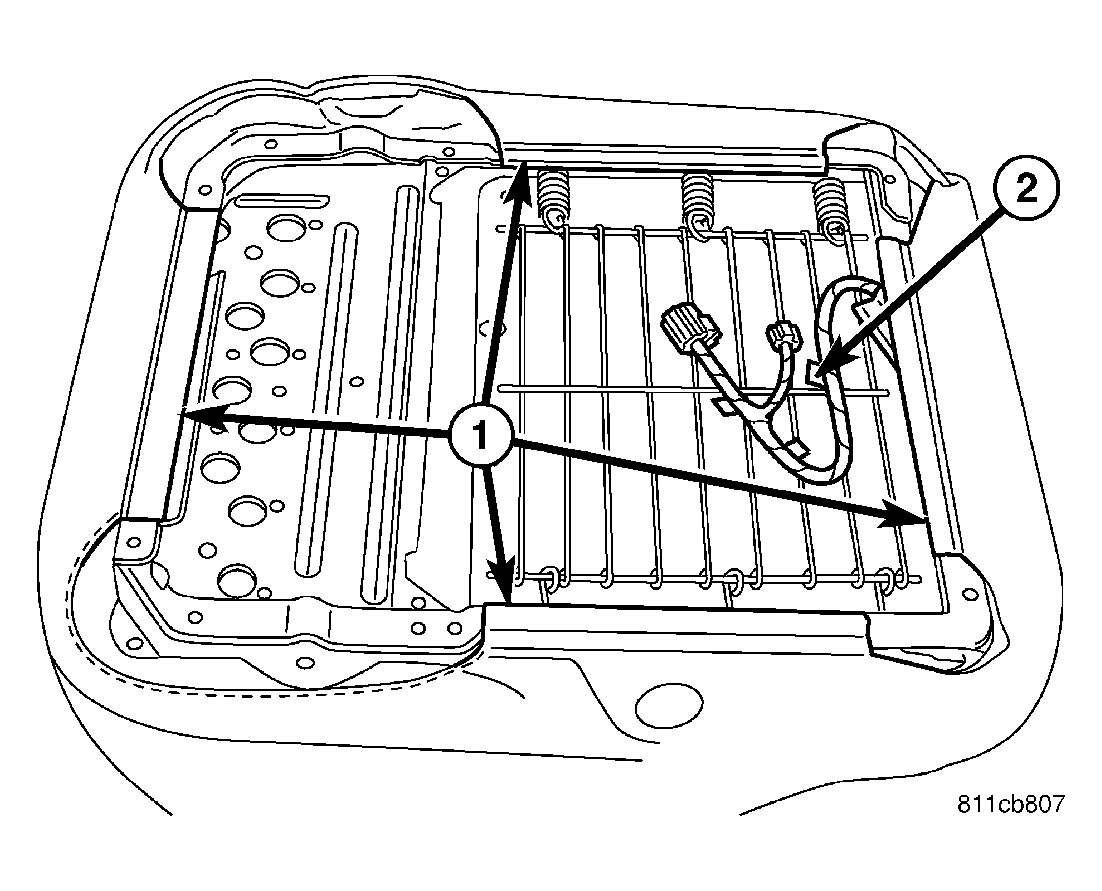

Fig 1: Disengaging J-Straps
GC0022488Courtesy of DAIMLERCHRYSLER CORP.
1 - J-STRAPS
2 - WIRE HARNESS AND SEAT CUSHION FRAME
  1. Remove seat from vehicle (Refer to BODY/SEATS/SEAT - REMOVAL) .
  2. Remove front seat cushion (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
  3. Disengage J-strap (1) attaching seat cover from the seat cushion frame (2) and ensure wire harness free seat frame.

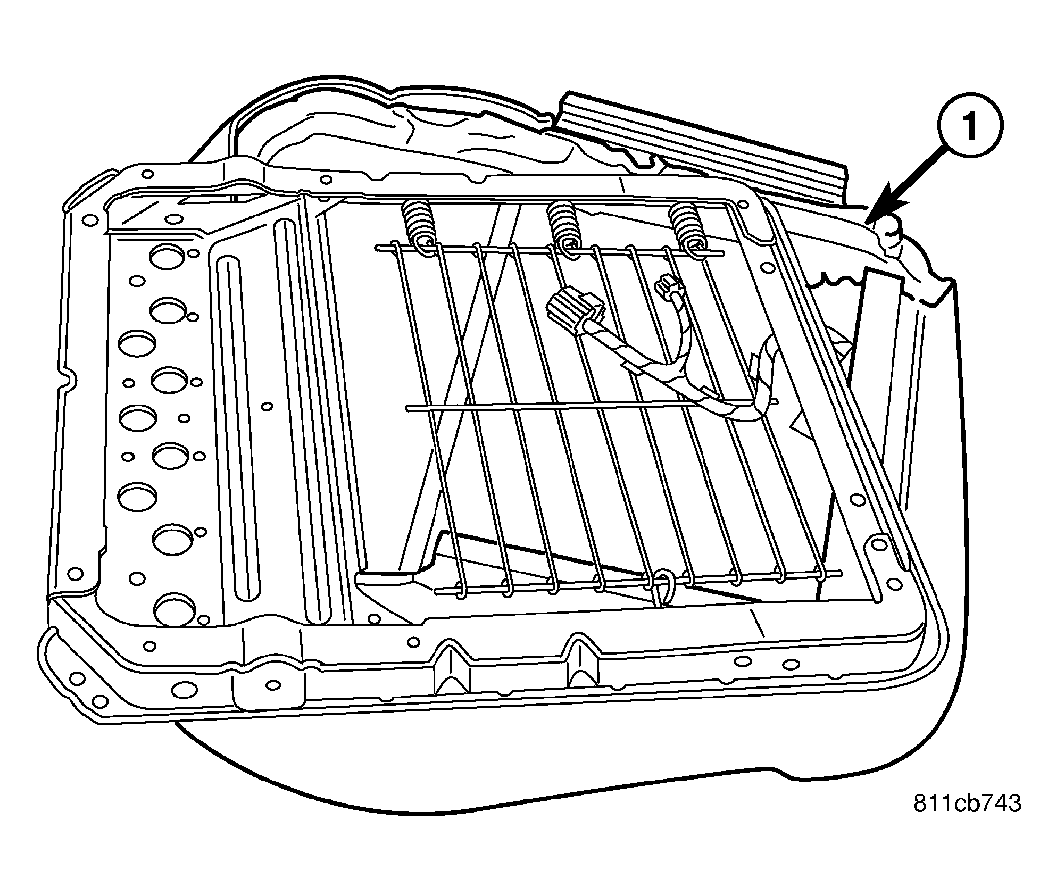

    Fig 2: Remove Seat Cushion Cover And Foam
    GC0022505Courtesy of DAIMLERCHRYSLER CORP.
    1 - SEAT CUSHION COVER AND FOAM
  4. Remove seat cushion cover (1) to the hog rings.
  5. Cut hog rings attaching seat cover to seat cushion pad.
  6. Remove seat cushion cover (1) from seat cushion.
