Removal- Convertible

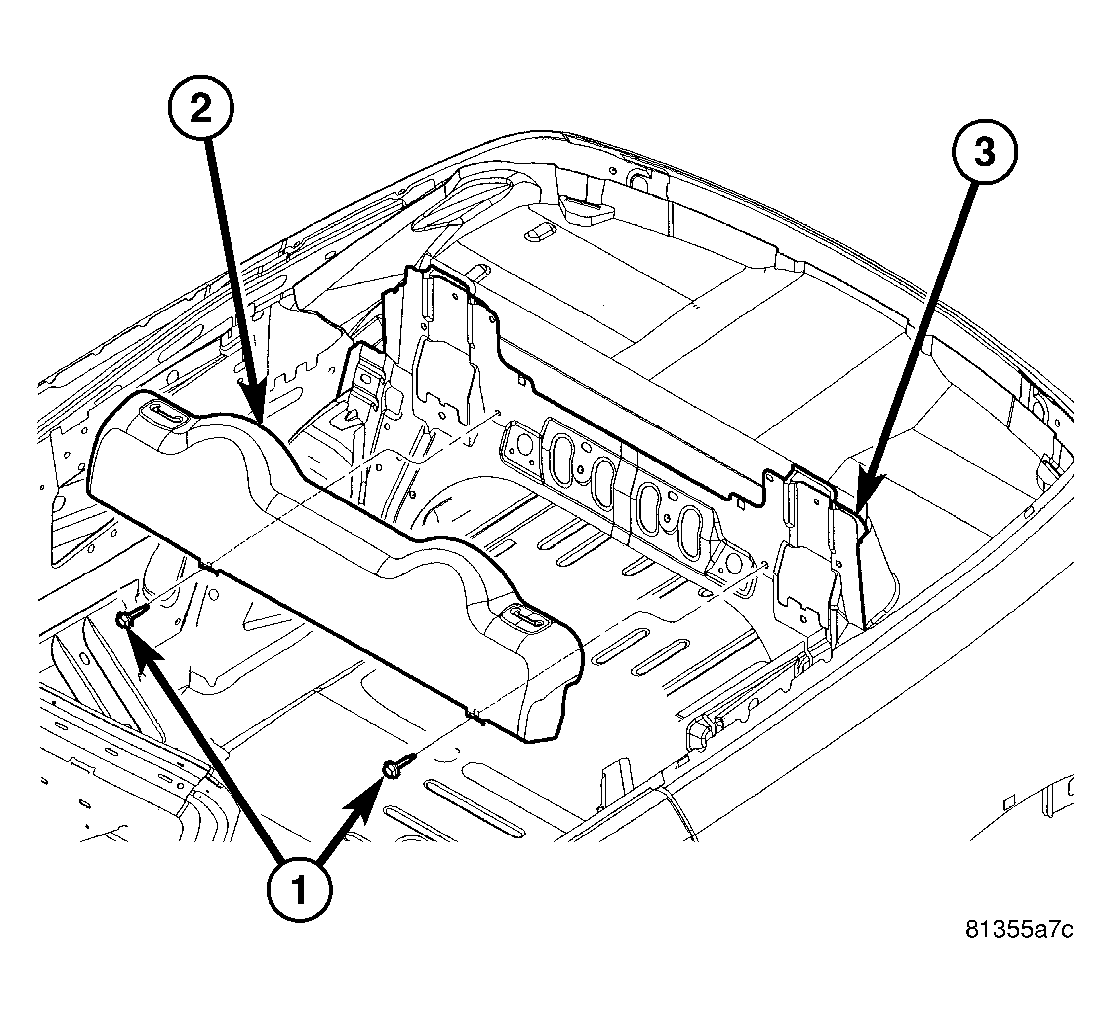

Fig 1: Rear Seat Bolster
GC0022552Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR SEAT BOLSTER ATTACHING SCREW(S)
2 - REAR SEAT BOLSTER
3 - REAR SEAT BACK PANEL
  1. Lower convertible top.
  2. Fold rear seats down and forward.
  3. Remove left rear seat belt lower anchor.
  4. Remove right rear seat belt lower anchor.
  5. Remove push pin fasteners attaching molding upper seat belt to top well.
  6. Remove two screws from front side upper bolster assembly to rear seat back panel (3).
  7. Remove two screws (1) from the rear attaching upper bolster (2) assembly to rear seat back panel.

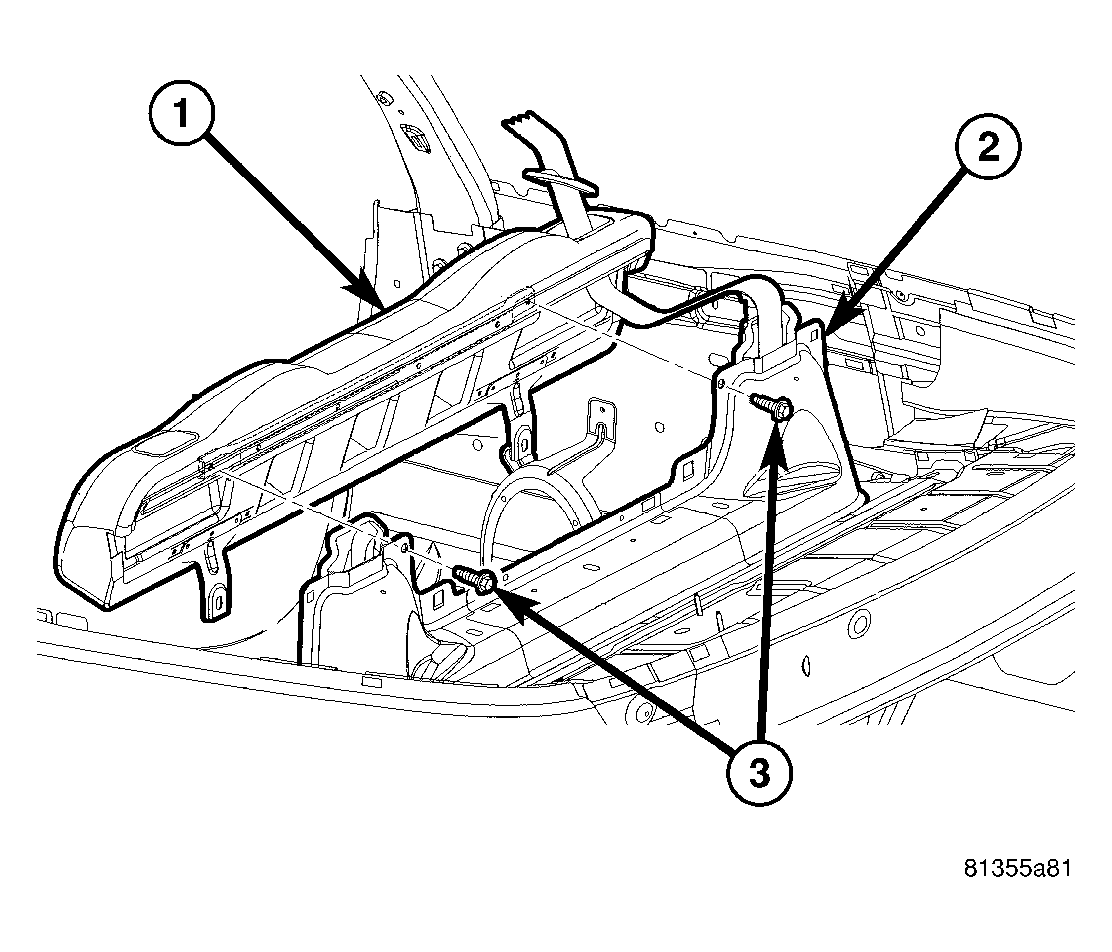

    Fig 2: Rear Seat Bolster Rear Attaching Screws
    GC0022551Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR SEAT BOLSTER
    2 - REAR SEAT BACK PANEL
    3 - ATTACHING SCREW(S)
  8. Remove both bezels at seat belt through holes in headrest assembly.
  9. Fish right and left seat belt through bolster assembly.
  10. Remove rear seat bolster (1) from vehicle.
