Rear Speaker - Convertible

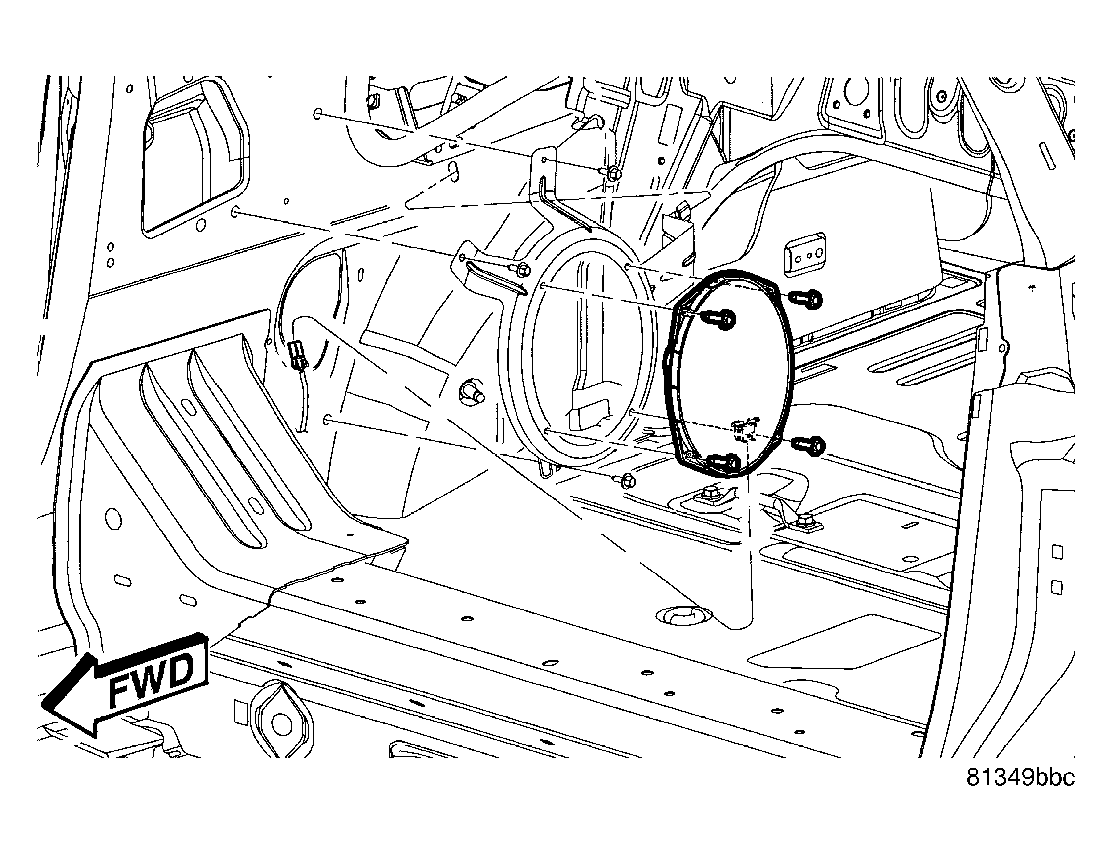

Fig 1: Rear Speaker - Convertible
GC0022872Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the quarter trim panel.
  3. Remove the mounting fasteners.
  4. Remove speaker and disconnect the electrical harness connector.
