Rear Door Water Dam: Removal

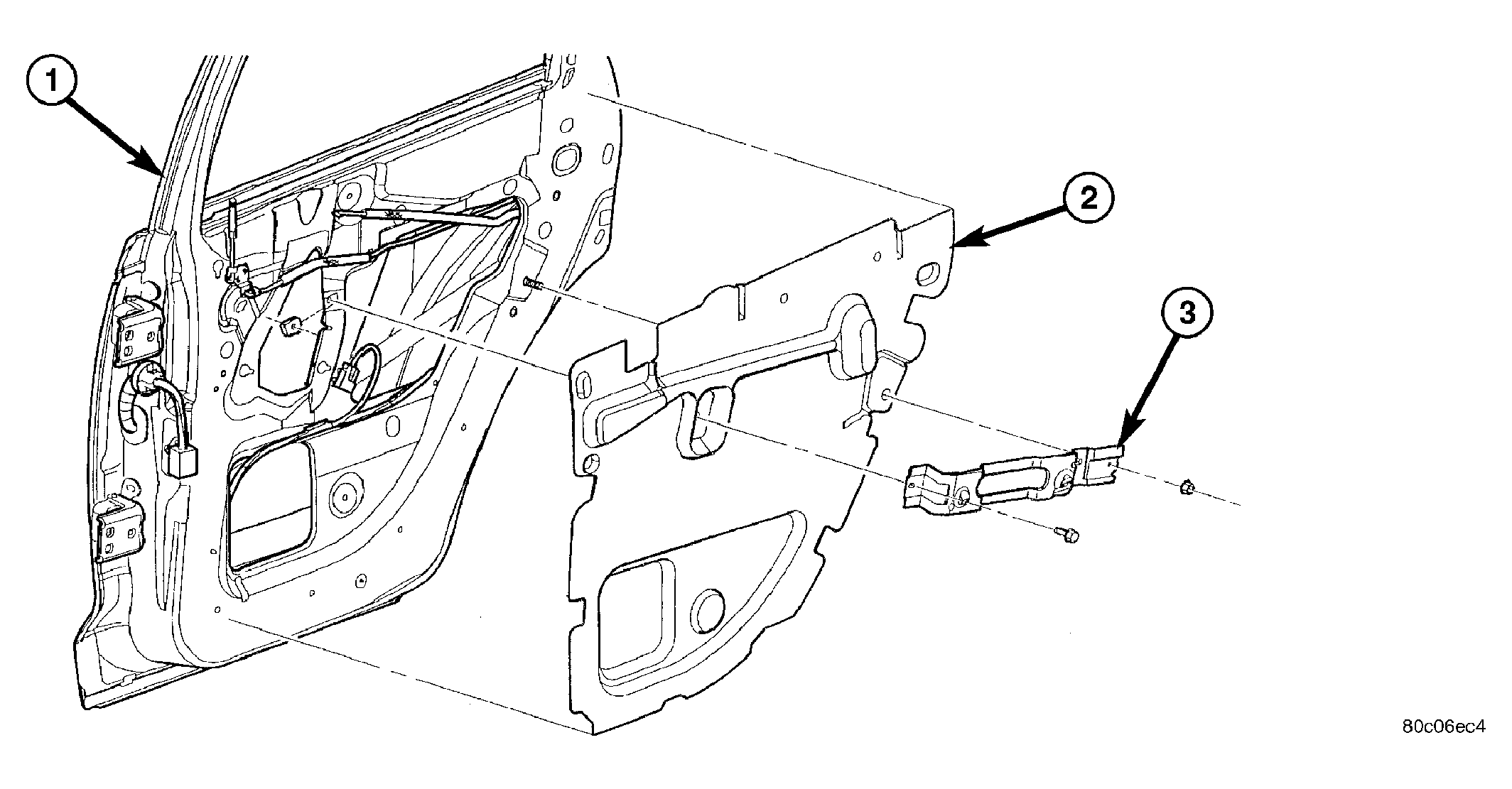

Fig 1: Water Dam
GC0022340Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR DOOR
2 - REAR DOOR WATER DAM
3 - REAR DOOR ARMREST TO INNER PANEL ATTACHING BRACKET
  1. Remove door trim panel.
  2. Remove door speaker, if equipped.
  3. Remove door trim pull cup mount bracket.
  4. Disconnect clip attaching lock linkage to lock button bell-crank.
  5. Peel water dam away from adhesive around perimeter of inner door panel.
