Rear Door Trim Panel: Removal

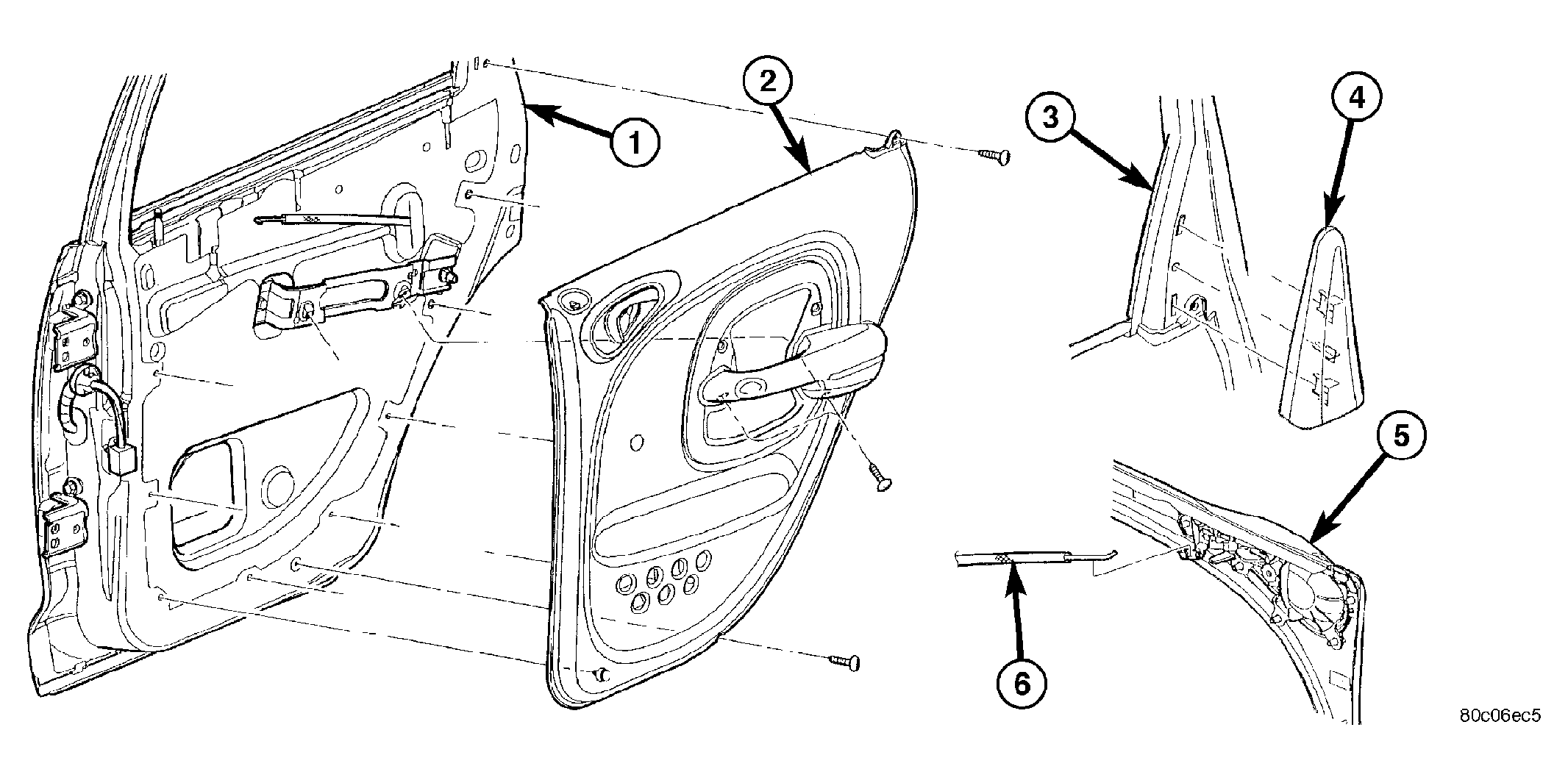

Fig 1: Rear Door Trim Panel
GC0022339Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR DOOR
2 - REAR DOOR TRIM PANEL
3 - REAR DOOR REAR EDGE
4 - REAR DOOR FLAG TRIM
5 - REAR DOOR REMOTE HANDLE/BEZEL ASSEMBLY
6 - REAR DOOR LATCH LINK AND SLEEVE
  1. Release door latch (6) and open door.
  2. Lower window glass.
  3. Remove screw from inside arm rest pull cup.
  4. Remove screw from behind inside latch release handle.
  5. Remove fasteners from door trim panel (2).
  6. Disengage push in fasteners attaching trim to door panel around perimeter of trim panel.
  7. Disengage push-in metal spring clip attaching trim in sail flag area.
  8. Lift trim panel up off belt weatherstrip.
  9. Tilt top of trim panel away from door and disengage clip attaching latch rod to handle.
  10. Remove latch rod from handle.
  11. Remove trim panel (2) from door.
