Rear Door Outside Handle: Removal

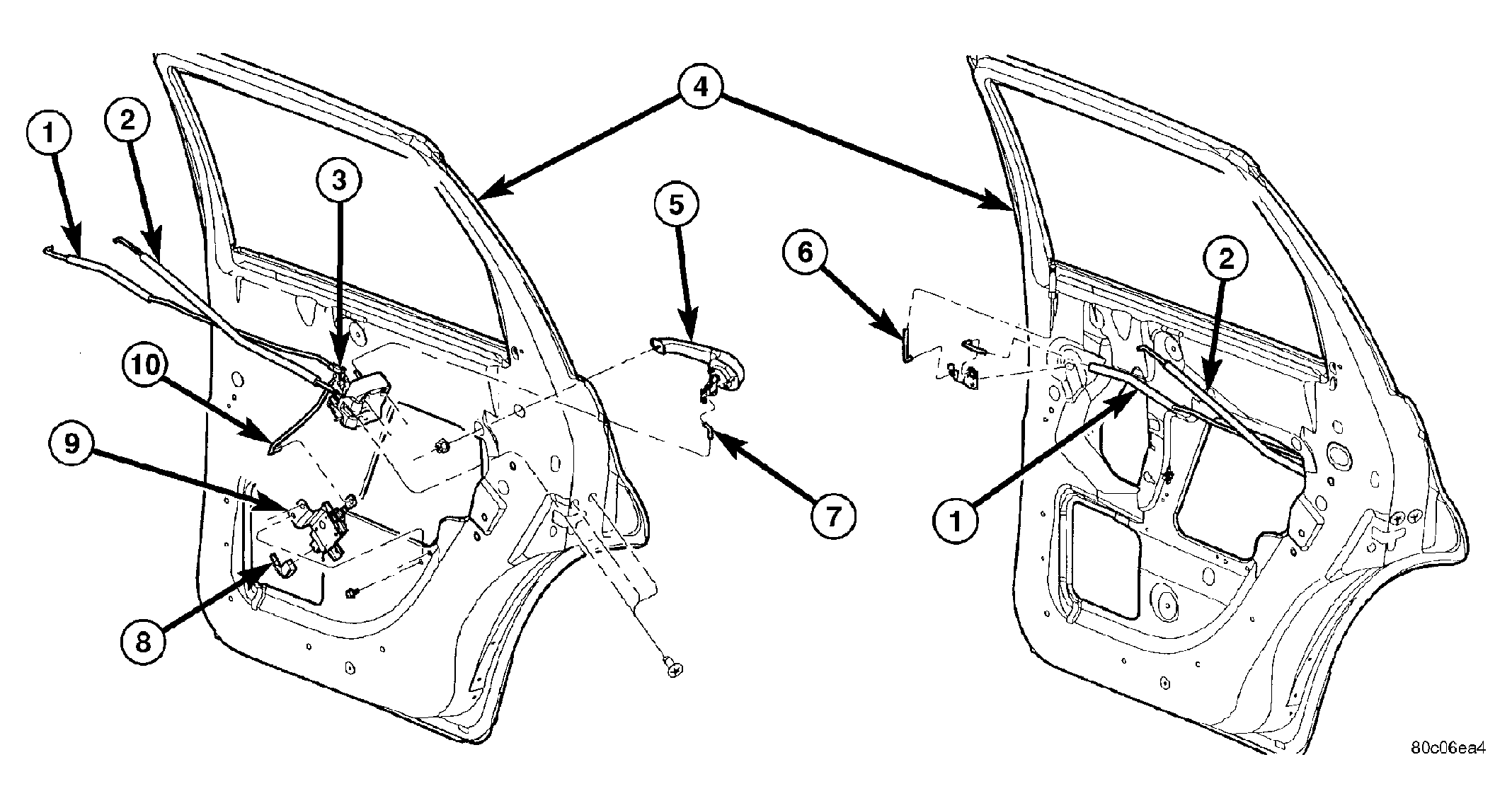

Fig 1: Rear Door Outside Handle
GC0022336Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR DOOR BELLCRANK TO LATCH LINK AND SLEEVE
2 - REAR DOOR INSIDE ROD TO LATCH LINK AND SLEEVE
3 - REAR DOOR LOCK LATCH
4 - REAR DOOR
5 - REAR DOOR OUTSIDE HANDLE
6 - REAR DOOR LATCH LINKAGE KNOB AND ROD
7 - REAR DOOR OUTSIDE HANDLE LINK TO LATCH
8 - REAR DOOR WIRE POWER LOCK CONNECTOR
9 - REAR DOOR POWER LOCK MOTOR AND BRACKET
10 - REAR DOOR POWER LOCK ACTUATOR TO LATCH LINK
  1. Remove door trim panel.
  2. Raise door glass.
  3. Disengage clips attaching linkage rods to door latch.
  4. Remove nuts attaching outside handle to door.
  5. Remove outside handle (5).
