Rear Door Latch Striker: Removal

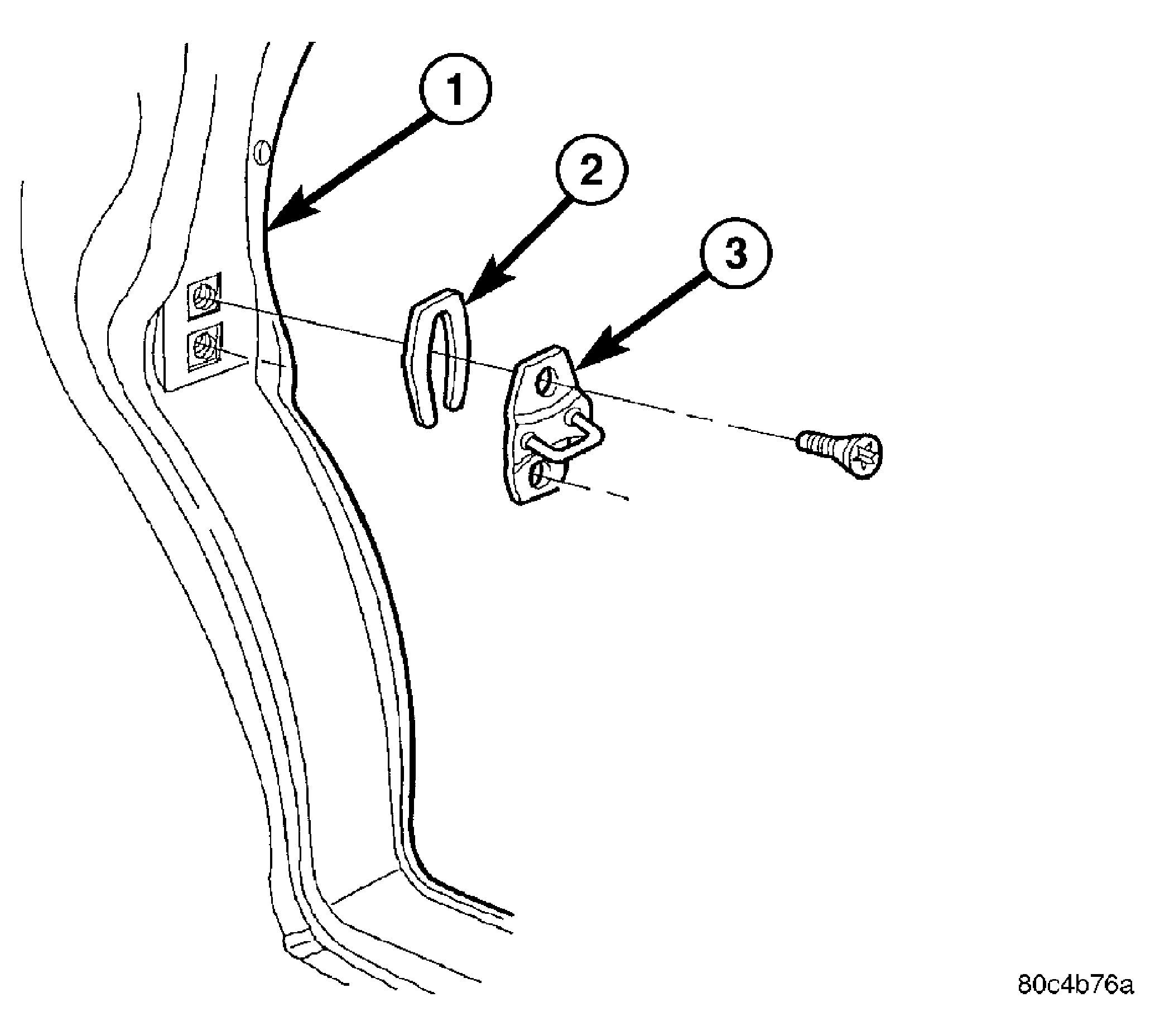

Fig 1: Rear Door Latch Striker
GC0022338Courtesy of DAIMLERCHRYSLER CORP.
1 - C-PILLAR
2 - SPACER
3 - REAR DOOR STRIKER
  1. Mark outline of door latch striker on B-pillar to aid installation.
  2. Remove screws attaching door latch striker to B-pillar.
  3. Remove door latch striker from vehicle.
