Rear Door Glass: Removal

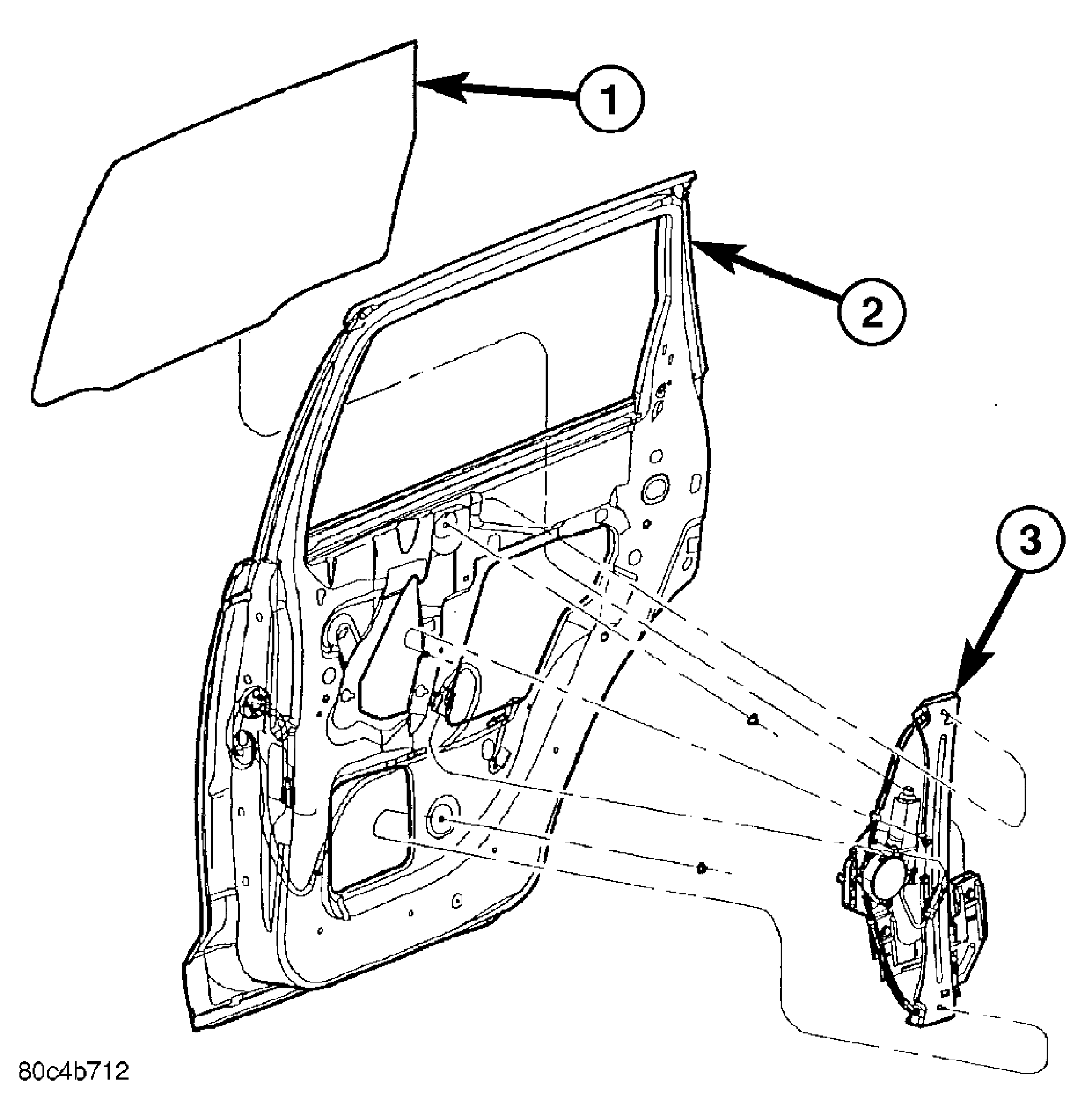

| 1 - REAR DOOR WINDOW GLASS |
| 2 - REAR DOOR |
| 3 - REAR DOOR WINDOW POWER REGULATOR |
- Remove door trim panel and inner belt weatherstrip.
- Lower the window (1) to 50 mm (2 ins.) from bottom of travel.
- Loosen bolts attaching rear lower run channel to inner door panel.
- Remove rear run channels from door.
- Loosen screws attaching window regulator (3) to glass (1).
- Remove glass.
- Lift door glass upward out of the opening at the top of door.
