Rear Door Check Strap: Removal

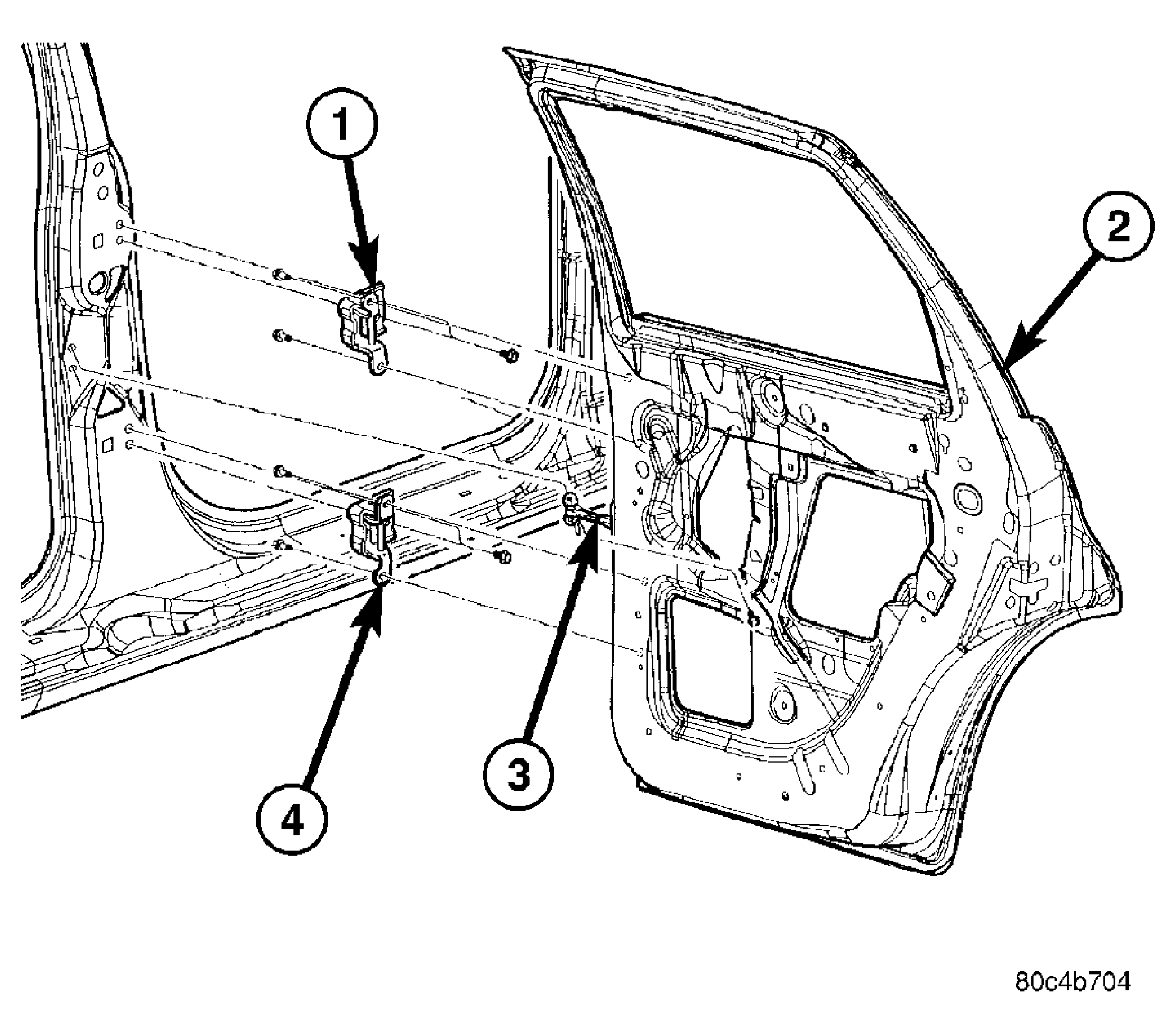

Fig 1: Rear Door Check Strap

GC0022334

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR UPPER HINGE

2 - REAR DOOR

3 - REAR DOOR CHECK STRAP

4 - REAR DOOR LOWER HINGE

Raise glass to full up position.
Remove door trim panel.
Remove bolts attaching check strap (3) to hinge pillar.
Remove check strap seal from door end frame.
Remove bolts attaching check strap (3) to door end frame.
Remove check strap (3) from vehicle.
