Rear Door Applique: Removal

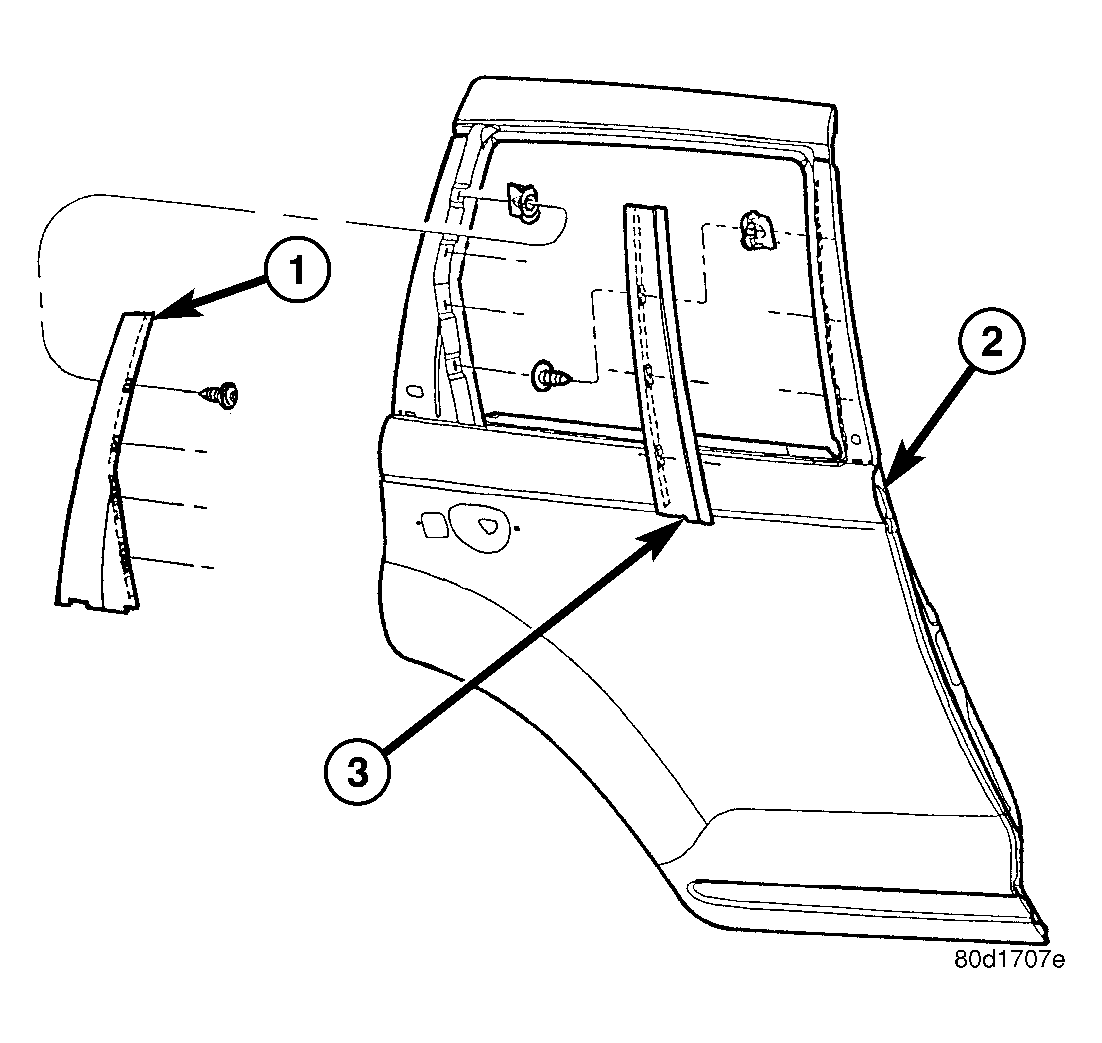

Fig 1: Rear Door Applique

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR C-PILLAR APPLIQUE

2 - REAR DOOR

3 - REAR DOOR B-PILLAR

Open rear door (2).
Lower door window to the lowest position.

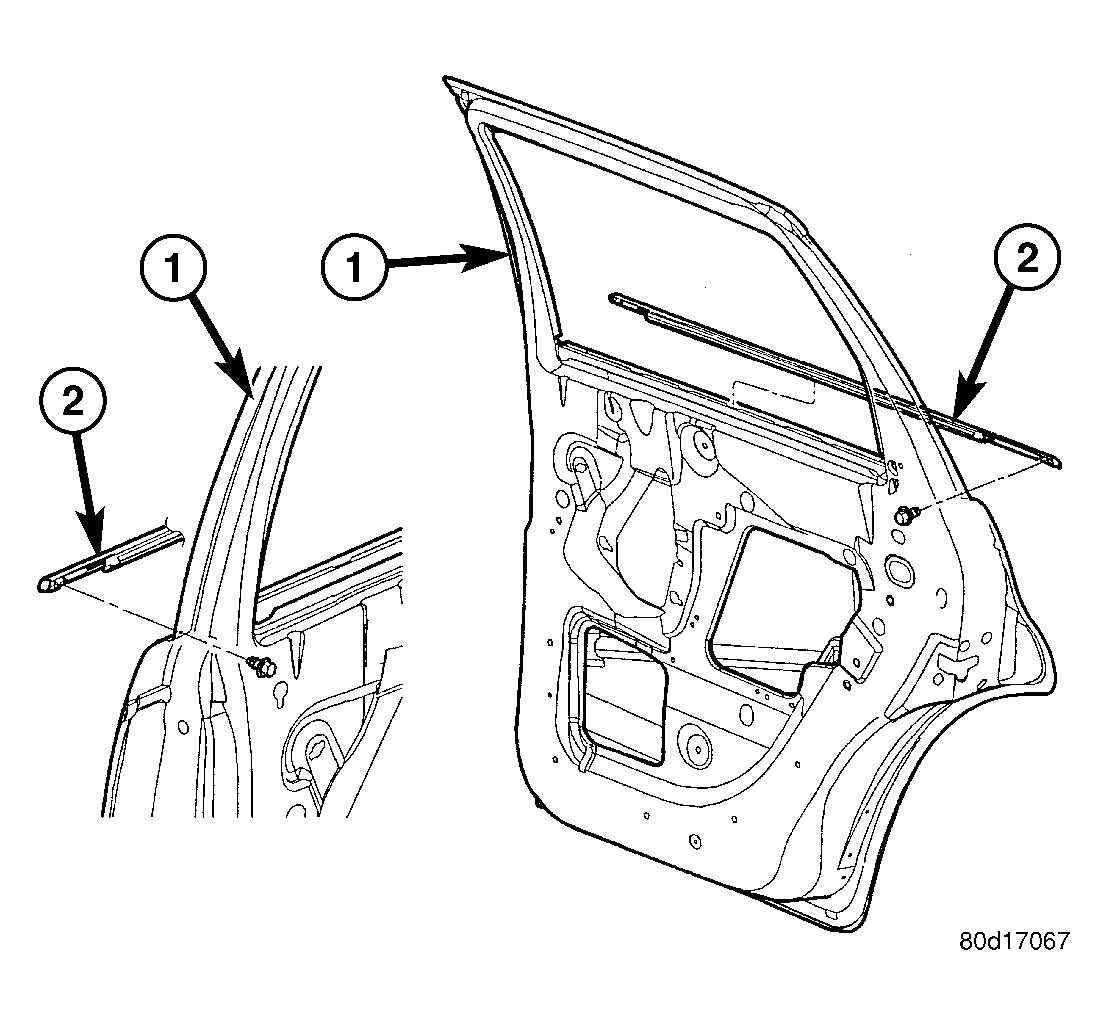

Fig 2: Rear Door Outside Weatherstrip
Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR FRAME

2 - REAR DOOR GLASS RUN WEATHERSTRIP
Remove front and rear screws attaching outside belt weatherstrip and remove from door.

Remove glass run weatherstrip as necessary to access the three screws in the B-pillar applique (3). The glass run weatherstrip (2) will need to be free of the glass on forward edge, so that the front edge of the glass can push outward to access the lower screw.

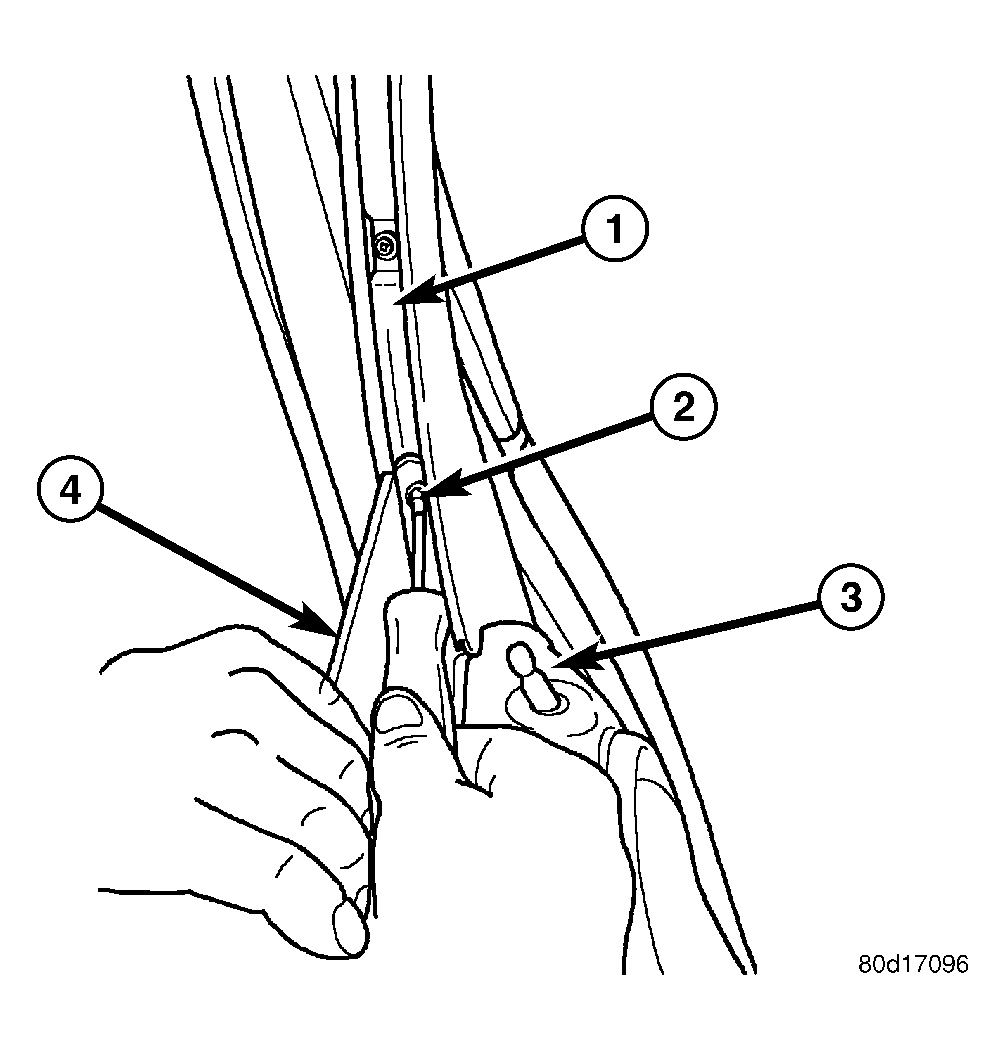

Fig 3: Remove Lower Screw

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER DOOR FRAME

2 - LOWER SCREW

3 - SHOP TOWEL

4 - DOOR WINDOW GLASS

Place a shop towel (3) between the tract and glass so that screw(s) do not fall in to the door opening.
Remove screws attaching B-pillar applique.
Remove B-pillar applique from door.

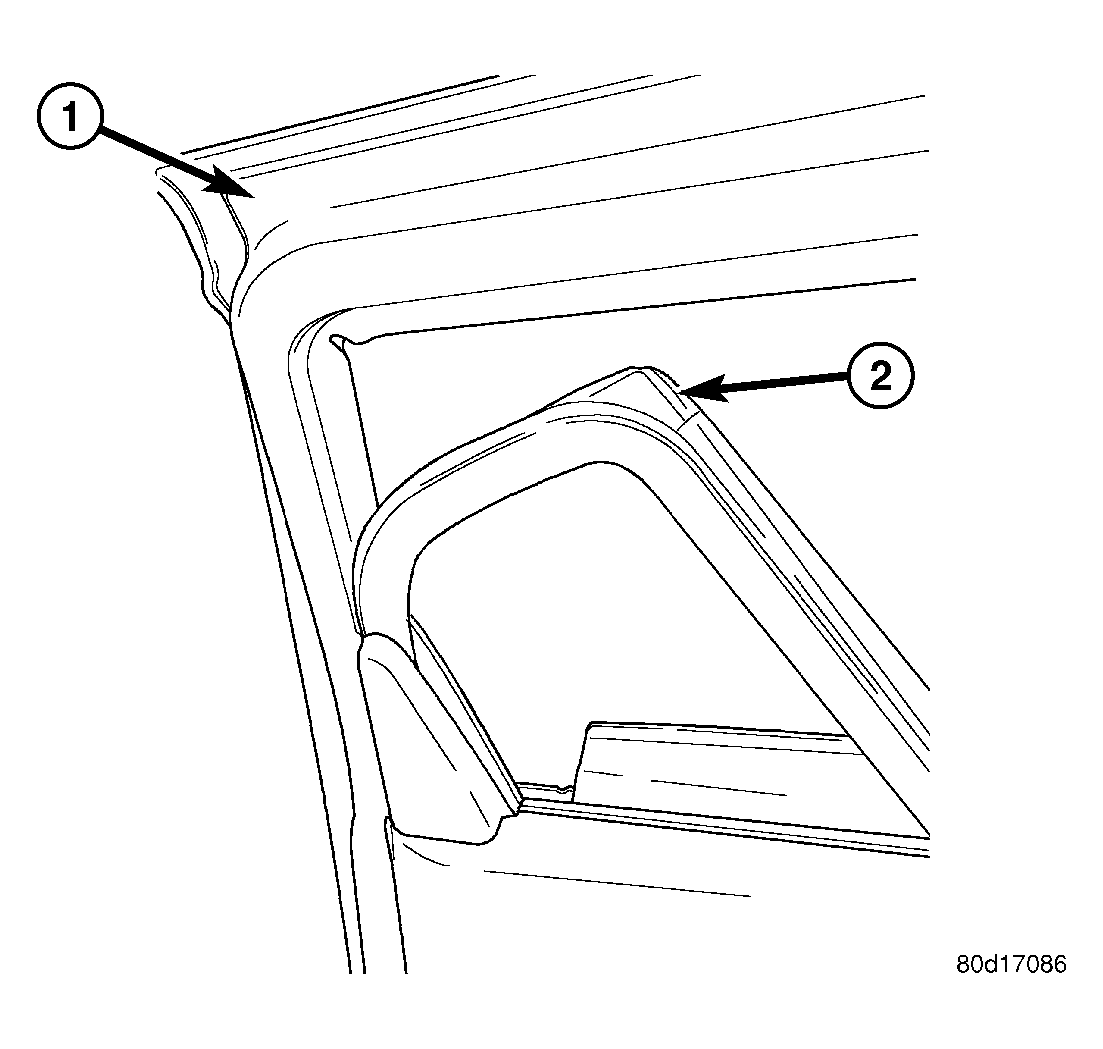

Fig 4: Door Run Weatherstrip
Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER DOOR FRAME

2 - DOOR RUN WEATHERSTRIP
To remove C-pillar applique pull glass run weatherstrip (2) down as necessary to access the three screws in the C-pillar applique.
Remove screws attaching C-pillar applique.
Remove C-pillar from door.
