Front Seat: Installation
WARNING:
Before servicing the seat the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury. Refer to RESTRAINTS - SERVICE INFORMATION
for service procedures.

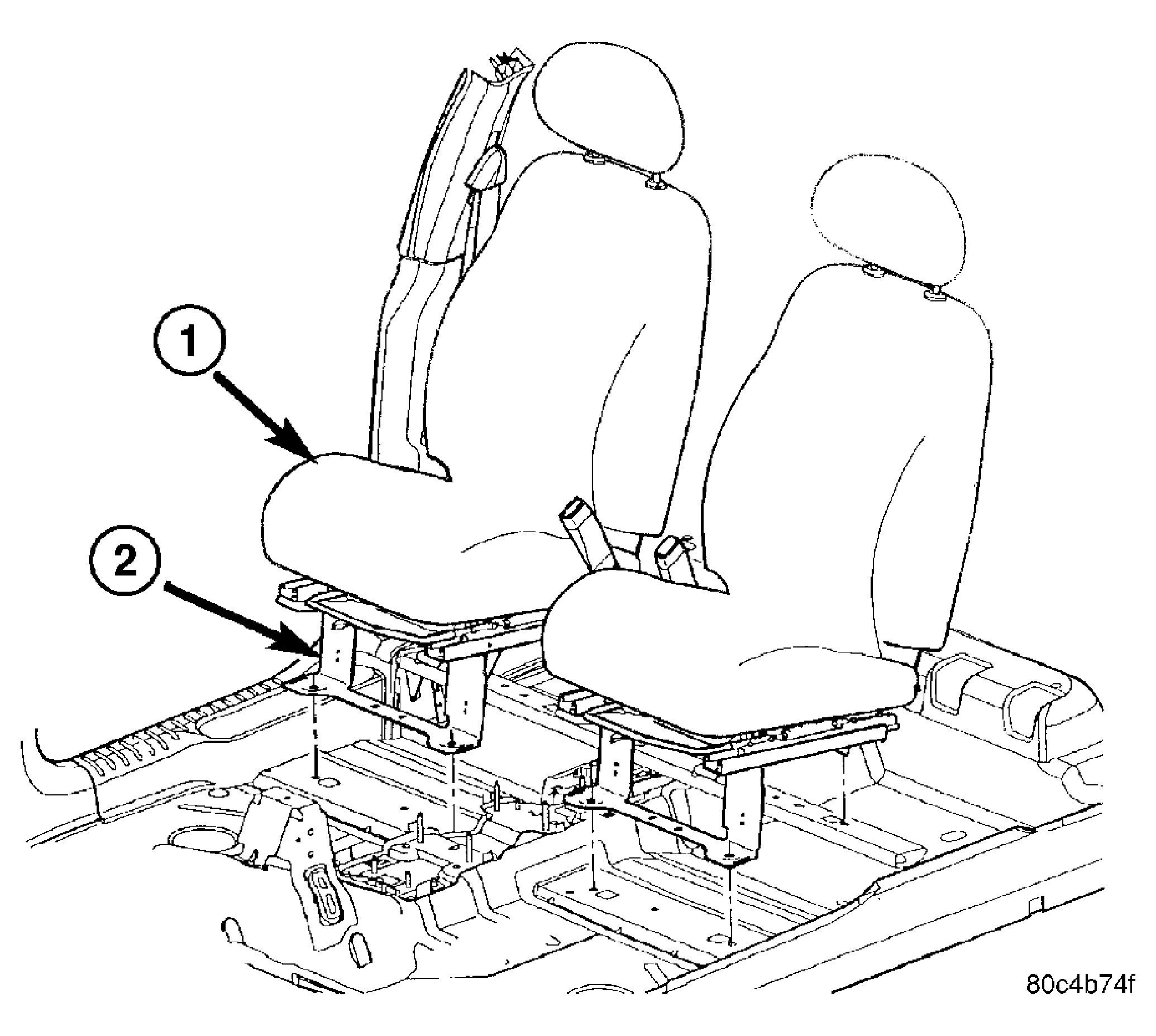

| 1 - FRONT SEAT ASSEMBLY |
| 2 - FRONT SEAT RISER |
- Place seat into position in vehicle. Do not use the head restraint, side shield, recliner handle, or the adjuster lift bar to move the seat.
- Engage electrical connectors, if equipped.
- Install bolts attaching seat track to floor crossmember. Tighten front seat bolt to 55 N.m (40 ft. lbs.).
- Install rear seat track attaching bolts. Tighten rear seat bolts to 55 N.m (40 ft. lbs.).
