Removal-Convertible

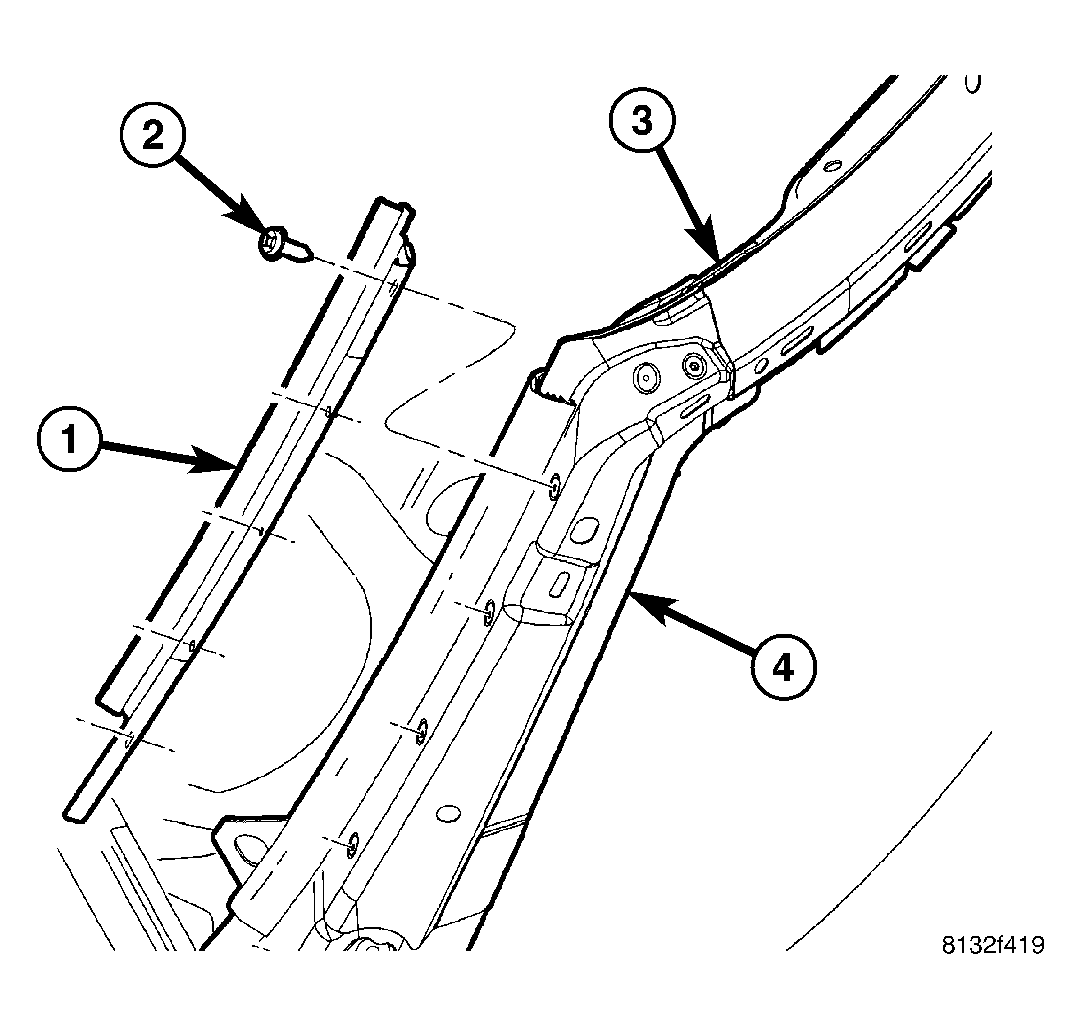

Fig 1: A-Pillar Weatherstrip
GC0022595Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the header and A-pillar weatherstrip (3) as necessary to gain access to the A-pillar weatherstrip retainer (1) (Refer to BODY/WEATHERSTRIP/SEALS/HEADER/WEATHERSTRIP-HEADER AND A-PILLAR - REMOVAL) .
  2. Remove the four screws (2) that secure the A-pillar weatherstrip retainer to the A-pillar (4) and remove the retainer.
