Rear Door Glass Run Weatherstrip: Removal

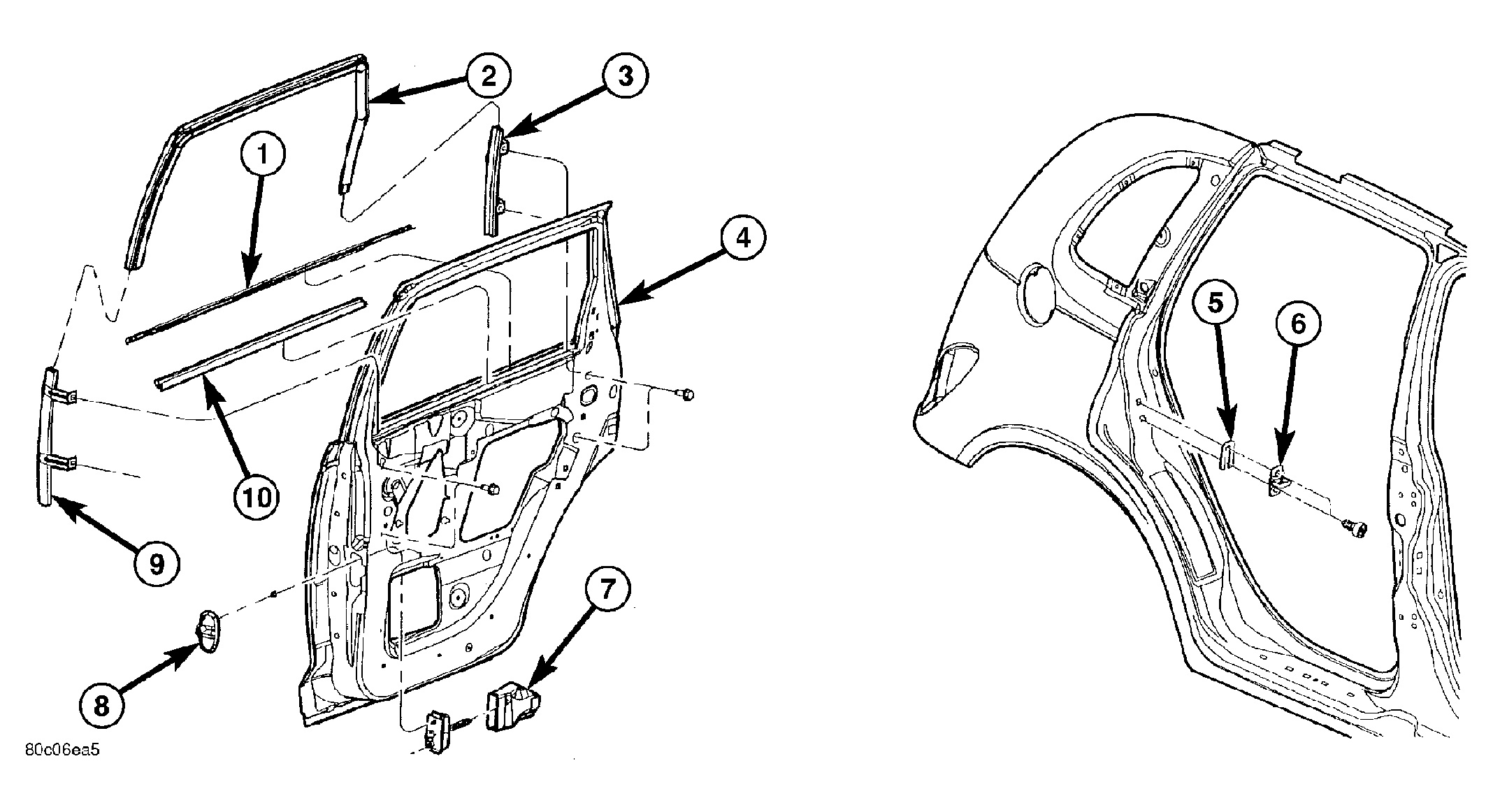

Fig 1: Rear Door Striker

Courtesy of DAIMLERCHRYSLER CORP.

1 -REAR DOOR OUTER BELT WEATHERSTRIP	6 - REAR DOOR LATCH STRIKER
2 - REAR DOOR GLASS RUN WEATHERSTRIP	7 - REAR DOOR CHECK STRAP AND COVER
3 - REAR DOOR GLASS LOWER CHANNEL REAR	8 - REAR DOOR CHECK STRAP SEAL
4 - REAR DOOR	9 - REAR DOOR GLASS LOWER CHANNEL FRONT
5 - REAR DOOR LATCH STRIKER SPACER	10 - REAR DOOR INNER BELT WEATHERSTRIP

1. Remove door trim panel, water shield as necessary.
2. Remove door glass.
3. Pull weatherstrip from flange.
4. Pull run weatherstrip from window frame channel.
