Quarter Window: Removal

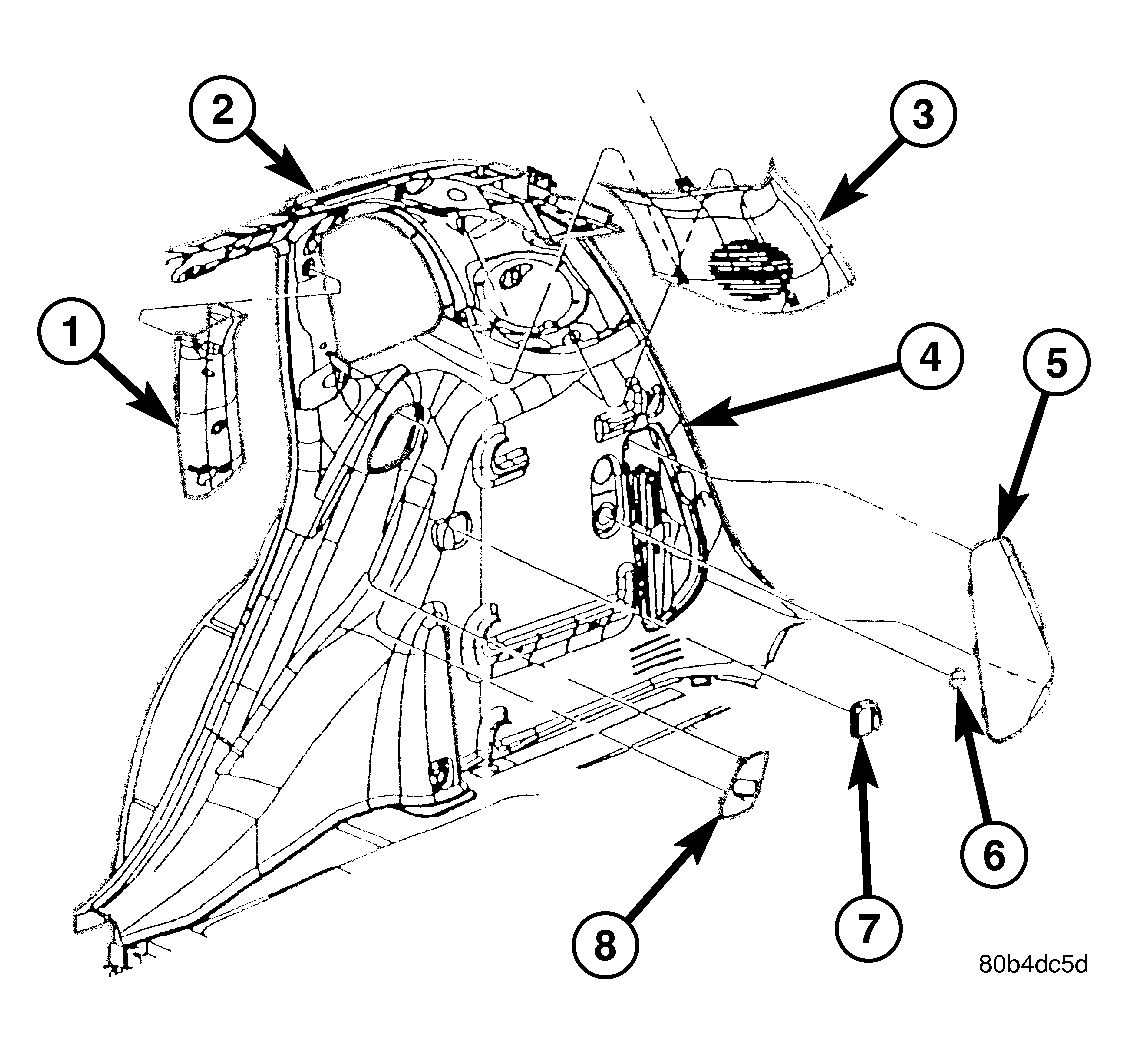

Fig 1: Quarter Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1 - C-PILLAR UPPER TRIM PANEL

2 - REAR QUARTER PANEL

3 - D-PILLAR UPPER TRIM PANEL

4 - QUARTER LOWER TRIM PANEL

5 - JACK STORAGE ACCESS DOOR

6 - QUARTER TRIM PANEL LOWER PLUG

7 - VERTICAL BUMPER

8 - SEAT LATCH STRIKER COVER

NOTE: Refer to the WINDSHIELD removal procedure for a description of tools and adhesive systems that are recommended for use in this procedure.

Remove C & D Pillar upper trim panel.

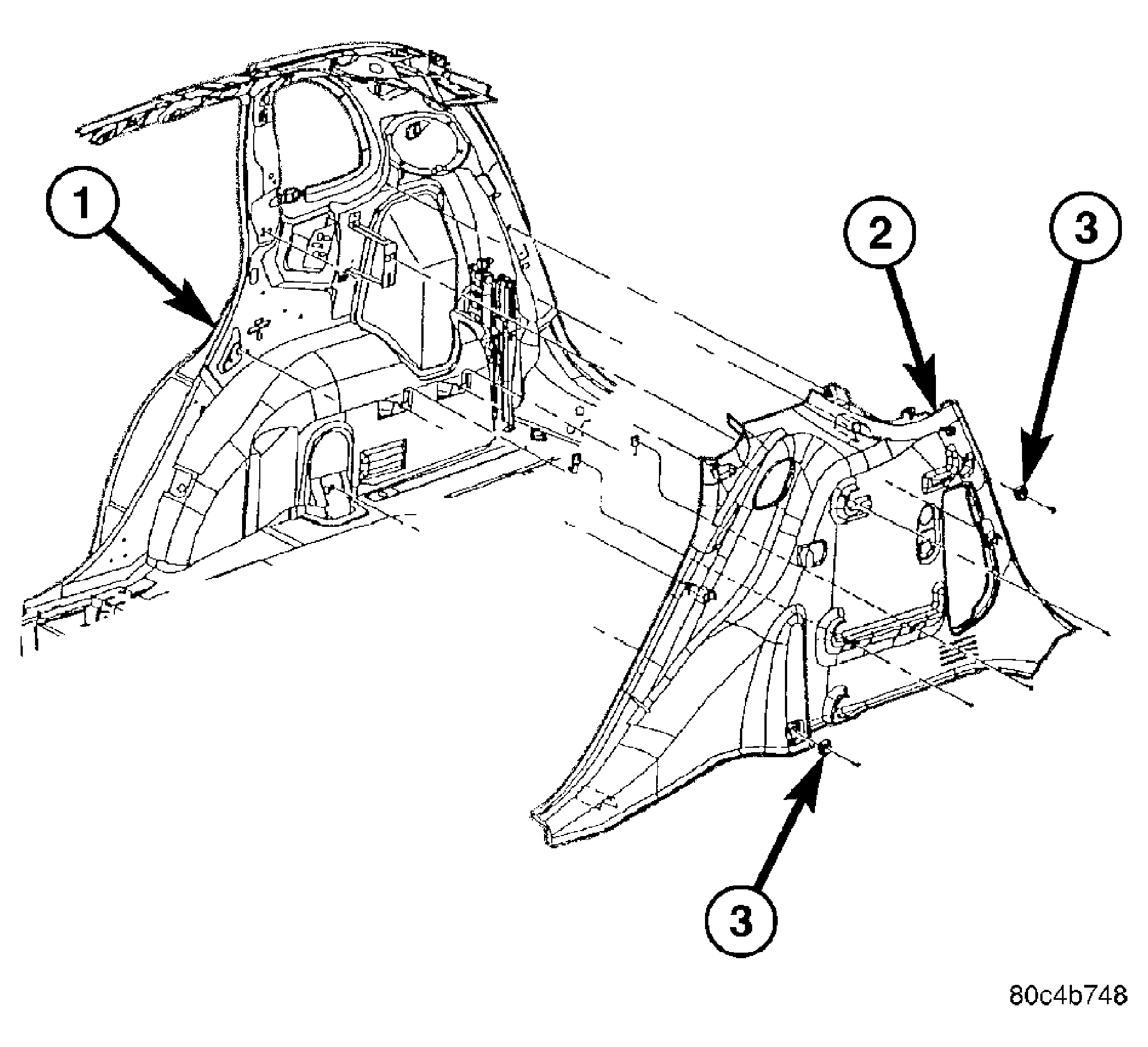

Fig 2: Lower Quarter Trim

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR QUARTER PANEL

2 - REAR QUARTER TRIM PANEL

3 - CARGO TIE DOWN QUARTER TRIM LOWER LOOP

Remove lower quarter trim panel as necessary.

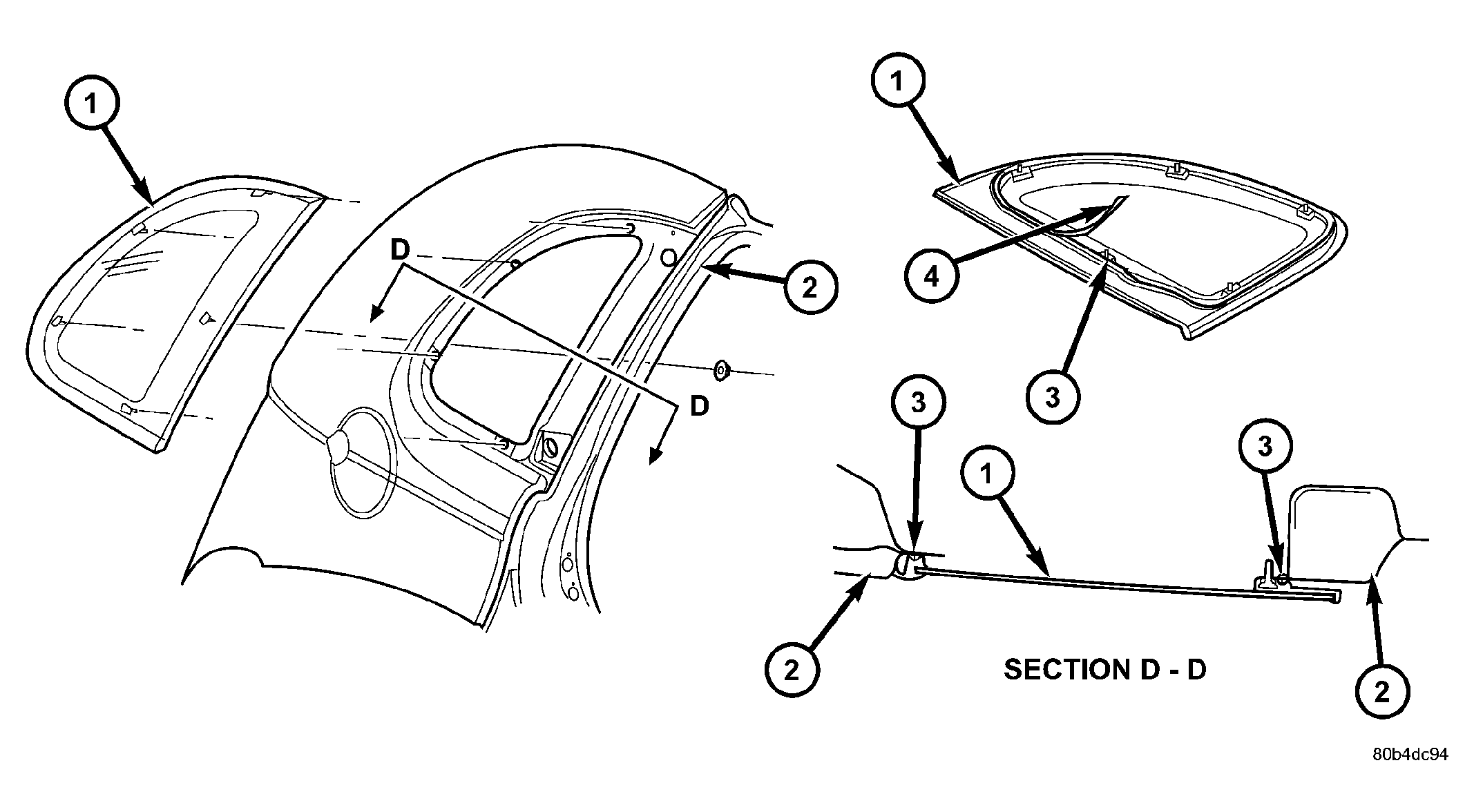

Fig 3: Quarter Window Glass

Courtesy of DAIMLERCHRYSLER CORP.

1 - QUARTER WINDOW GLASS

2 - C-PILLAR

3 - BUTYL

4 - BUTYL RELEASE PAPER

Remove nuts attaching quarter window glass.
WARNING: Wear eye and hand protection when handling safety glass. Personal injury can result.

CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.
Remove the quarter window glass (1) from the vehicle by pushing on glass from inside of vehicle.
