Front Seat Cushion: Removal: Convertible

Fig 1: Handles

Courtesy of DAIMLERCHRYSLER CORP.

1 - TILT FORWARD HANDLE

2 - ATTACHING SCREWS

3 - RECLINING HANDLE

Remove seat from vehicle. (Refer to BODY/SEATS/SEAT - REMOVAL) .
Remove upper riser shield, if equipped.
Remove the seat back recliner handle/fold flat handle (3) and front seat cushion shield.

Fig 2: Seat Side Shield Wire Connectors
Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRE CONNECTORS
Disconnect wire connectors (1), if equipped.

Fig 3: Side Shield
Courtesy of DAIMLERCHRYSLER CORP.

1 - SIDE CUSHION SHIELD

2 - SEAT BELT ATTACHING BOLT
Remove front inner seat belt attaching bolt (2) and inboard seat side shield (1).

Fig 4: Front Seat Cushion - Front Side
Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREWS

2 - TOWEL BAR
Remove front seat cushion screws, two front side and two rear and towel bar.
Disconnect any electrical connectors and wire ties from the bottom of seat cushion, if equipped.

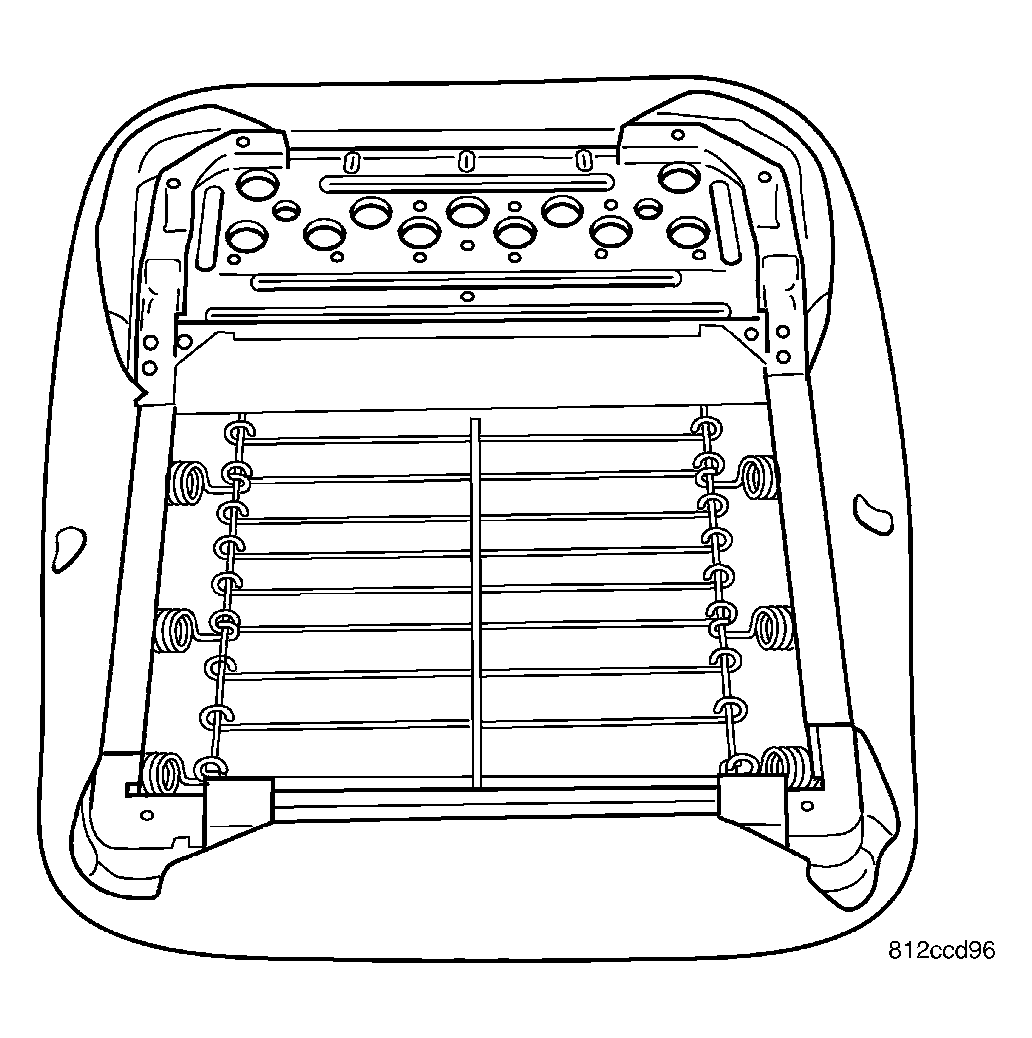

Fig 5: Seat Cushion, Foam And Seat Pan
Courtesy of DAIMLERCHRYSLER CORP.
Remove seat cushion from seat frame.
