Side Cowl Trim Panel: Removal

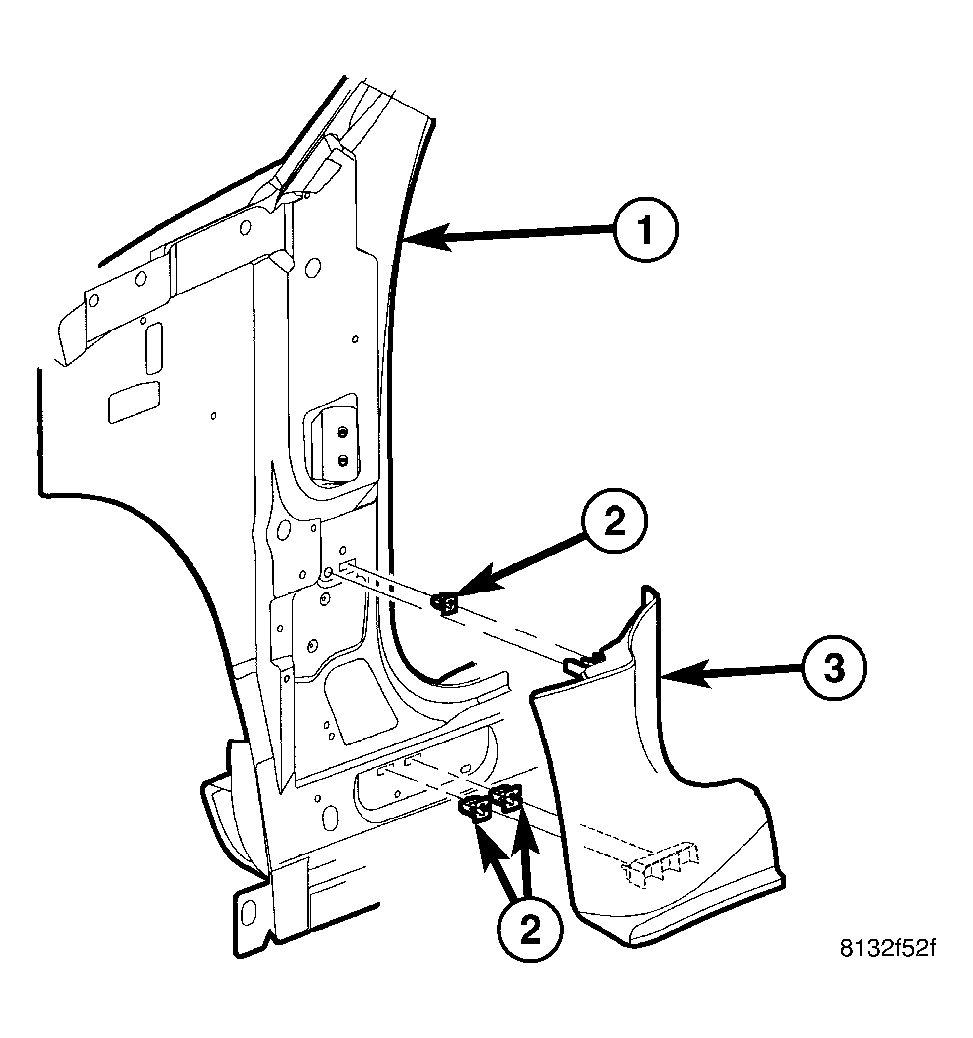

Fig 1: Cowl Side Trim Panel
GC0022420Courtesy of DAIMLERCHRYSLER CORP.
1 - INNER COWL PANEL
2 - PLASTIC NUT(S)
3 - COWL SIDE TRIM PANEL
  1. Disengage clips (2) attaching cowl side trim panel (3) to inner cowl panel (1).
  2. Remove cowl side trim panel (3) from vehicle.
