Removal - Convertible

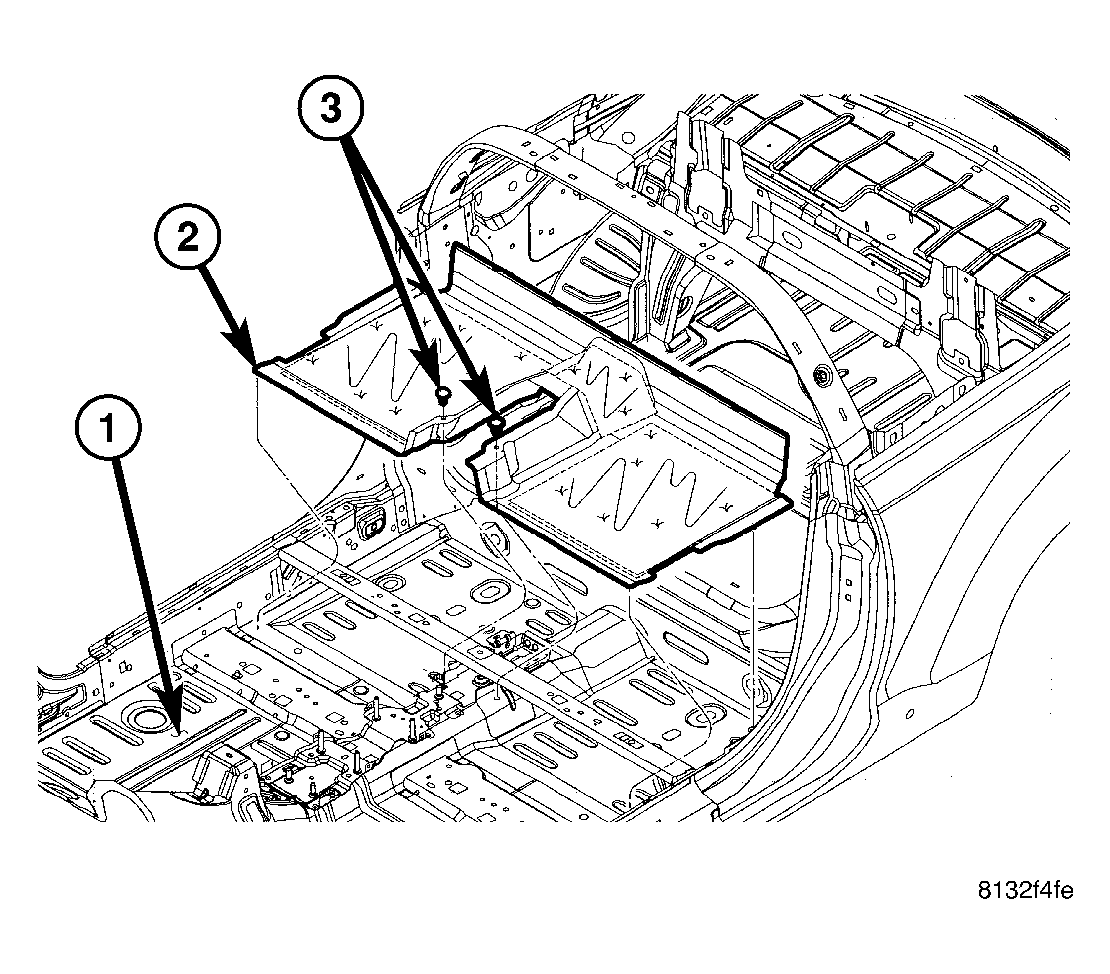

Fig 1: Rear Carpet
GC0022411Courtesy of DAIMLERCHRYSLER CORP.
1 - FLOOR PANEL
2 - REAR FLOOR CARPET
3 - PUSH PIN FASTENERS
  1. Remove front seats. (Refer to BODY/SEATS/SEAT - REMOVAL) .
  2. Remove door sill trim covers. (Refer to BODY/INTERIOR/DOOR SILL TRIM - REMOVAL) .
  3. Remove center floor console. Refer to CENTER CONSOLE .
  4. Remove push pin fasteners (3) at console area and rear edge of carpet
  5. Remove rear floor carpet from vehicle (2).
