A-Pillar Trim: Removal: Coupe

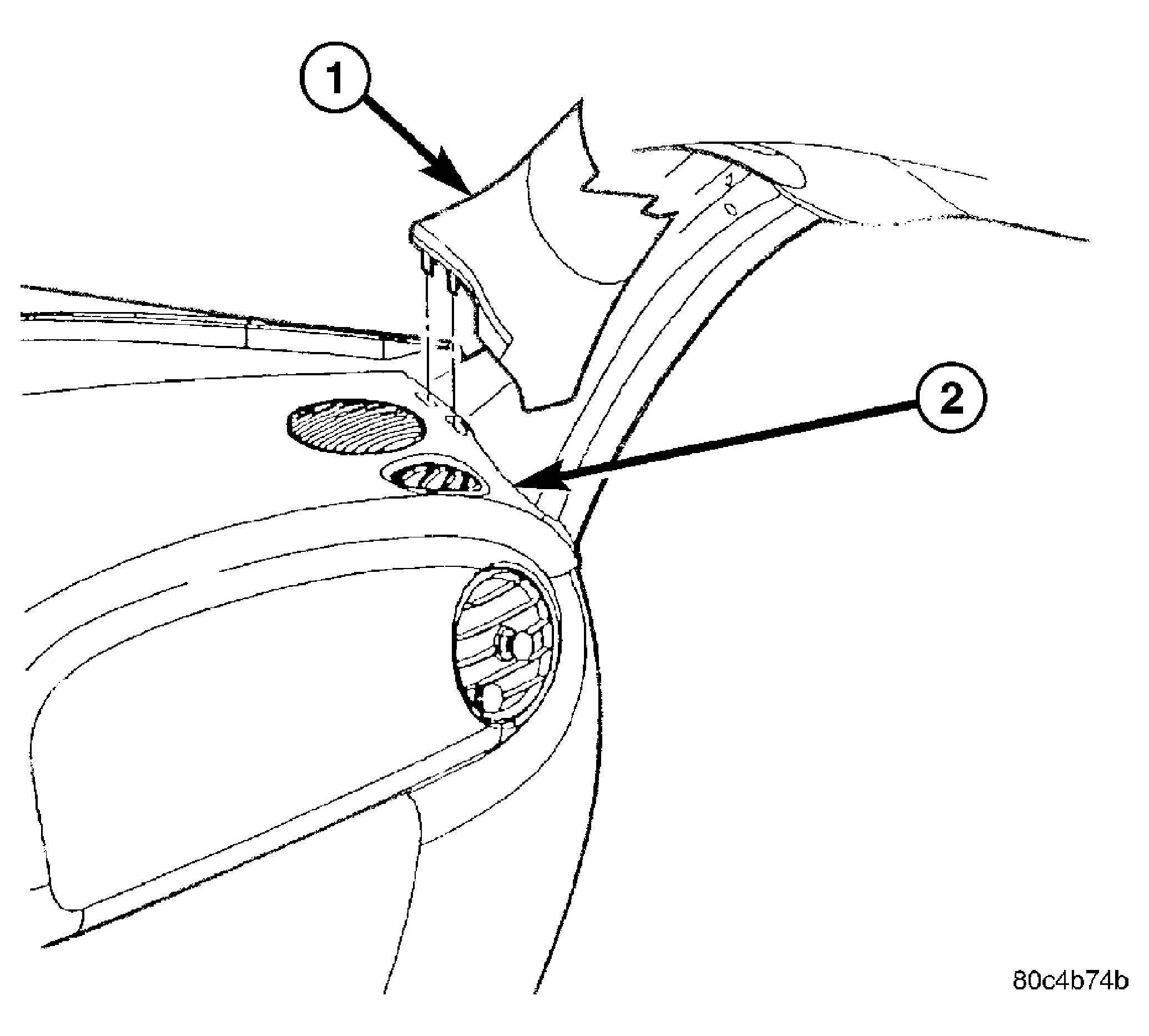

Fig 1: A-Pillar Trim
GC0022397Courtesy of DAIMLERCHRYSLER CORP.
1 - WINDSHIELD ( A-PILLAR ) SIDE GARNISH TRIM
2 - INSTRUMENT PANEL TOP COVER
  1. Disengage clips attaching trim to A-pillar.
  2. Remove A-pillar trim (1) from vehicle.
