Specifications - Body Gap And Flush Measurements - Coupe

INDEX

DESCRIPTION	FIGURE
BODY GAP AND FLUSH	Fig 1.

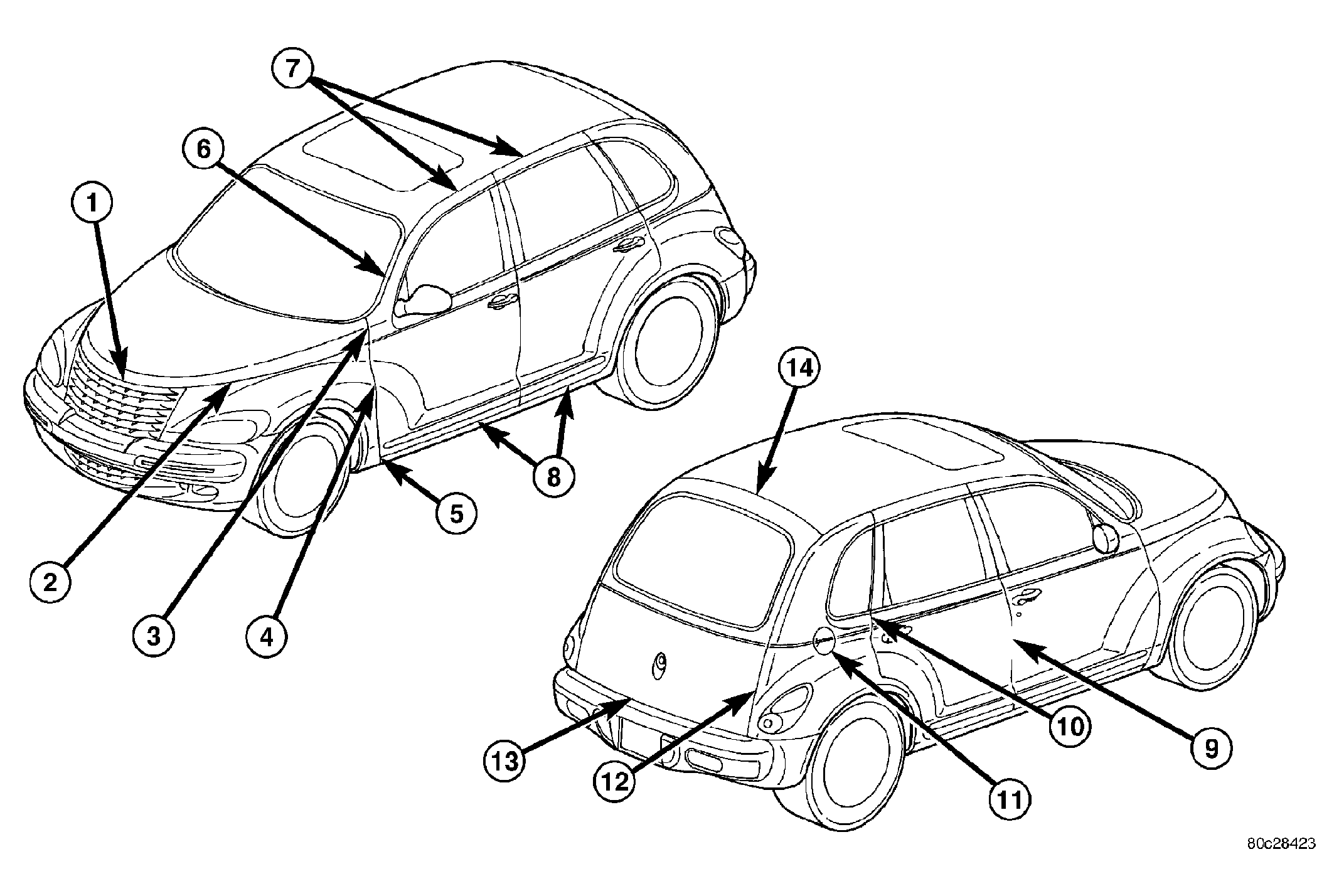

Fig 1: Body Gap And Flush

Courtesy of DAIMLERCHRYSLER CORP.

	LOCATION	GAP	FLUSH
1	Hood to Grille	// within 2.0	Grille Ends 5.0
			Grille Center 7.0
			Under flush +/- 1.5
2	Hood to Fender	6.0 +/- 1.0 // 1.0	Fender Front Overflush 1.5 +/- 1.0
			Fender Middle & Rear +/- 1.0
			Consistent Within 1.0
3	Hood to Door	5.0 +/- 1.0 // 1.0	+/- 1.5 Consistent within 1.0
4	Front Door to Fender	5.0 +/- 1.0 // 1.0	+0.5 -1.5 Lower Area Underflush 1.0 +/- 1.0 Consistent within 1.0
-	Fender to Sill	4.5 +/- 1.5 // 1.0	+/- 1.0
6	Front Door To Windshield Molding (A-Pillar)	5.0 +/- 1.75 // 1.0	+/- 1.0 Consistent Within 1.0
7	Front & Rear Door to Roof	6.0 +/- 1.5 // 1.0	Overflush 2.0 +/- 2.0 // 1.5
8	Front & Rear Door To Sill	6.0 +/- 1.5 // 1.0	Underflush 1.0 +/- 1.0
9	Front Door to Rear Door	4.5 +/- 1.0 // 1.0	Excluding Door Header +/- 1.5
			Door Header +/- 1.0
			Front Door Lower Area Overflush 1.0 +/- 1.0 Consistent Within 1.0
10	Rear Door to Body Side	4.5 +/- 1.0 // 1.0	+/- 1.0 Consistent Within 1.0
11	Body Side to Fuel Filler	3.0 +/- 1.0 Consistent Within 1.0	Body Side 0.5 Overflush +/- 0.75
12	Liftgate to Body Side	4.0 +/- 1.0 // 1.0	Liftgate Underflush 1.0 +/- 1.0 Consistent Within 1.0
13	Liftgate to Rear Fascia	7.0 +/- 1.5 // 1.5	N/A
14	Liftgate to Roof	8.0 +/- 1.5 // 1.5	Liftgate Underflush 1.0 +1.0 -2.0 Consistent Within 1.5
NOTE: NOTE: ALL MEASUREMENTS ARE IN mm
