Interior & Exterior (1 Of 2): Exterior: Grille-Upper: Removal

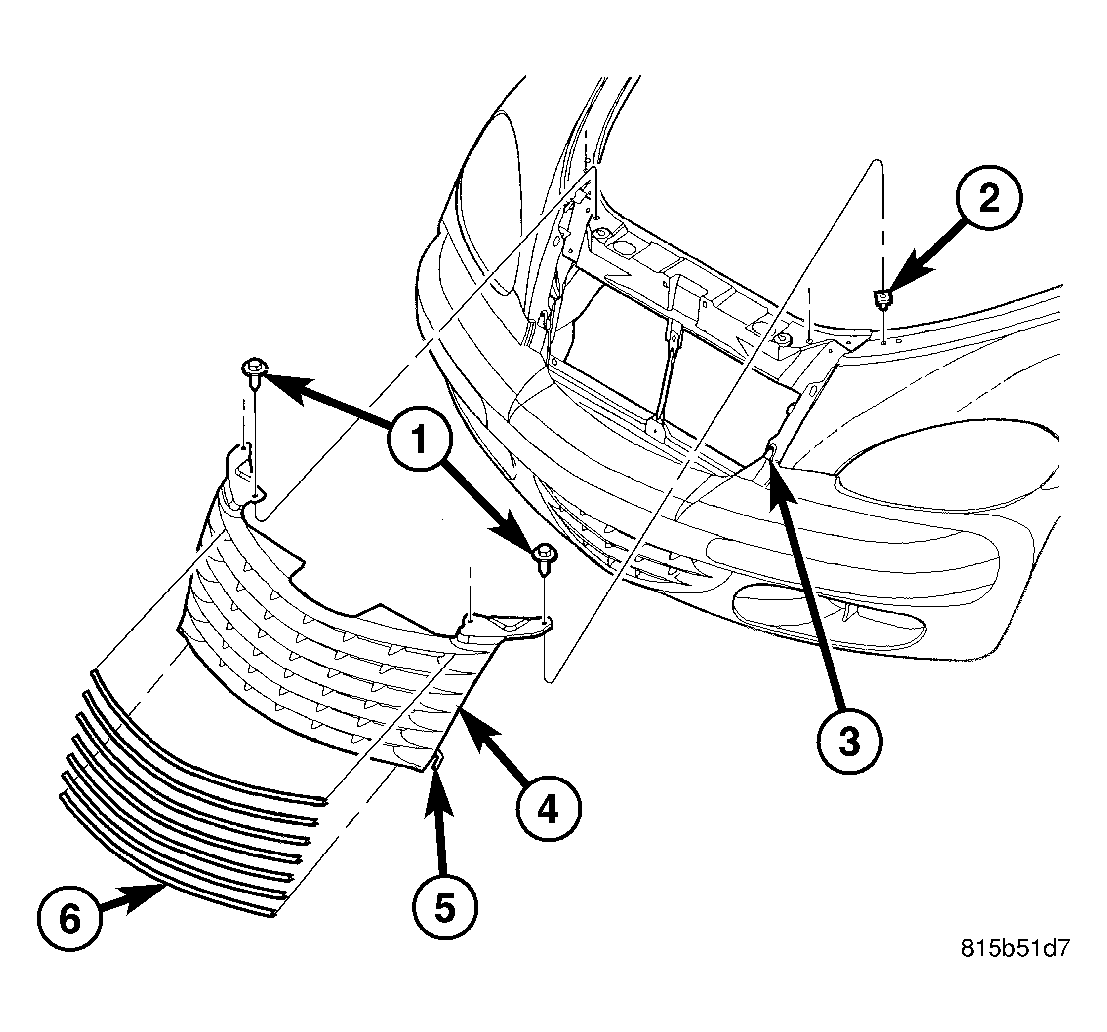

Fig 1: Grille-Removal & Installation

Courtesy of DAIMLERCHRYSLER CORP.

1. Open and support the hood.
2. Remove the four screws (1) that secure the grille (4) to the nuts (2) located on the top of the fender and upper radiator support.
3. Carefully pull the grille upward and outward to disengage the two retaining hooks (5) from the fender (3) and remove the grille.
4. If equipped and required, remove the chrome strips (6) from the grille by using a small flat blade tool to release the retaining tabs.
