Sunroof Drive Motor: Removal

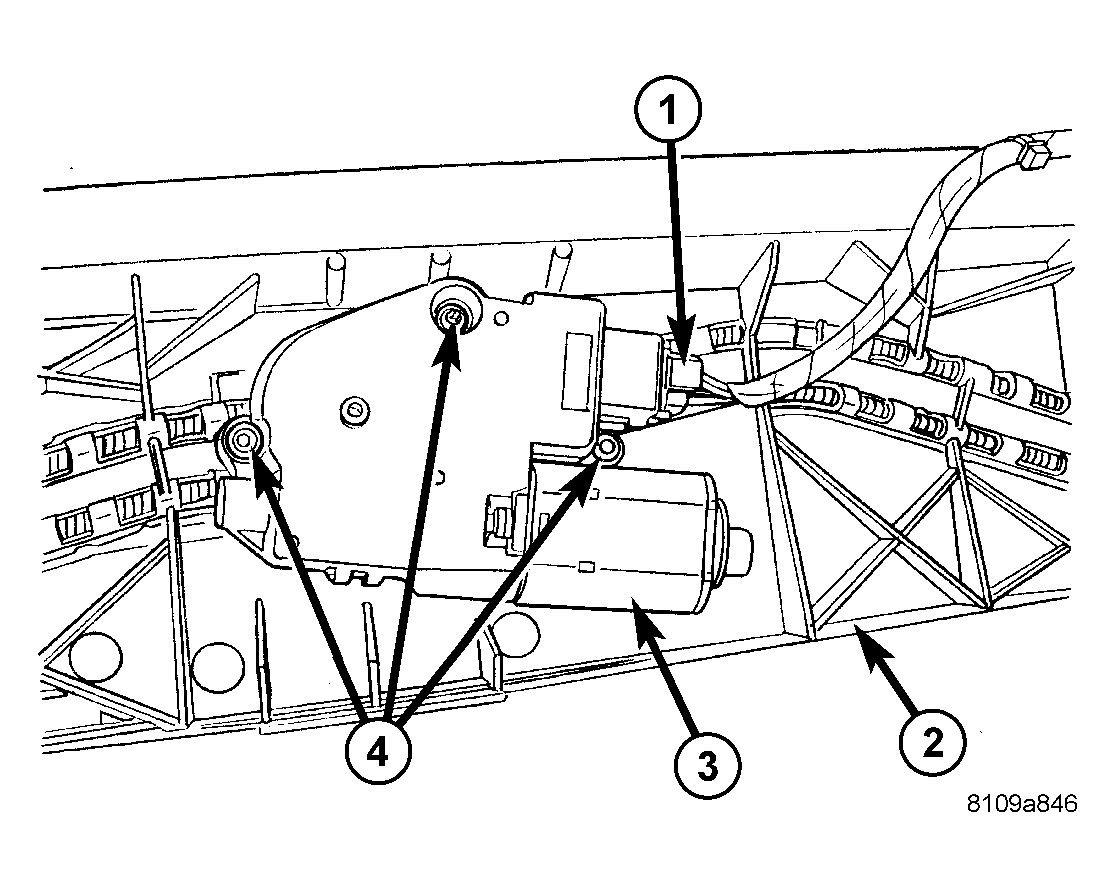

Fig 1: Drive Motor

Courtesy of DAIMLERCHRYSLER CORP.

1 - ELECTRICAL CONNECTOR

2 - MODULE ASSEMBLY

3 - DRIVE MOTOR

4 - MOUNTING SCREWS

Remove headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL)
Disconnect the electrical connector (1).
Remove three motor assembly attaching screws from bottom side of motor assembly.
Remove motor assembly from the motor bracket.
