Glass Panel: Removal

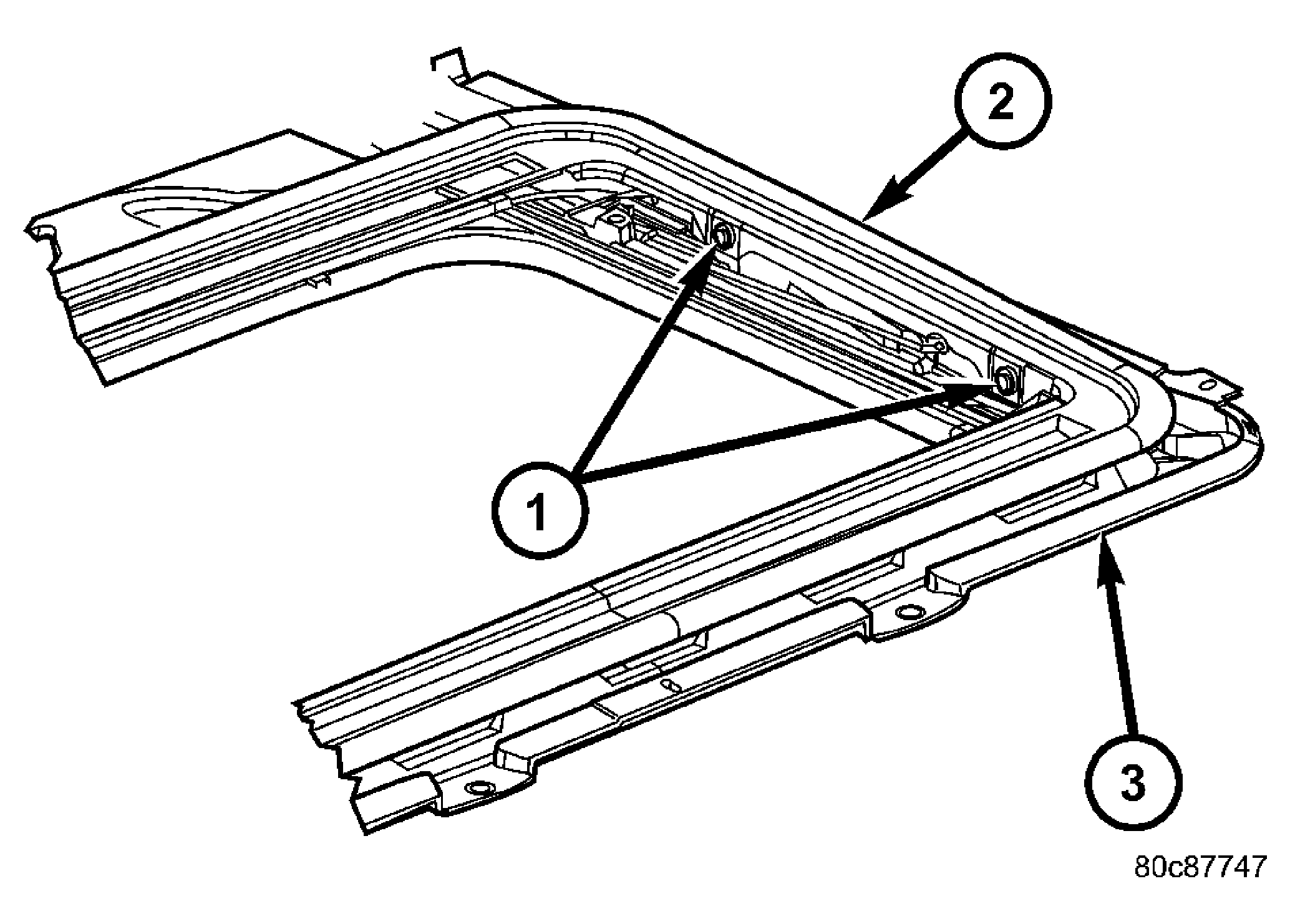

Fig 1: Glass Panel

GC0022586

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREWS

2 - GLASS PANEL

3 - MODULE ASSEMBLY

Move the glass panel (2) to the closed position.
Slide sunshade rearward to the open position.
Remove the four glass panel screws (1).
Lift off glass panel (2) and remove from vehicle.
