Under Seat Storage Bin: Removal

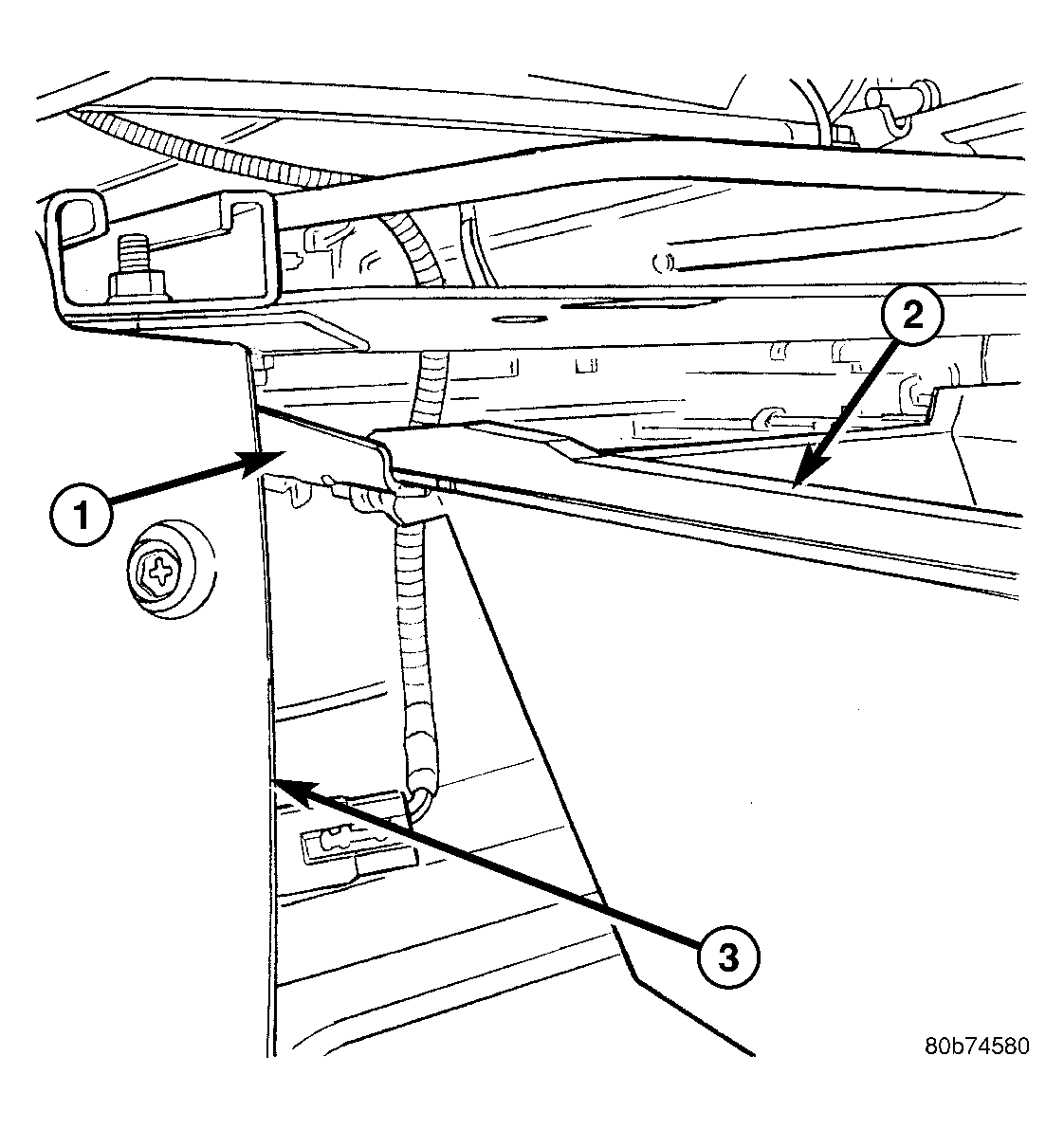

Fig 1: Cargo Bin
GC0022561Courtesy of DAIMLERCHRYSLER CORP.
1 - CARGO BIN TRACK
2 - CARGO BIN
3 - SEAT TRIM
  1. Open cargo bin.
  2. Pull cargo bin (2) out until it reaches the end of the guide.
  3. Lift upward on cargo bin (2) and remove.
