Interior & Exterior (1 Of 2): Hood: Emblem: Removal

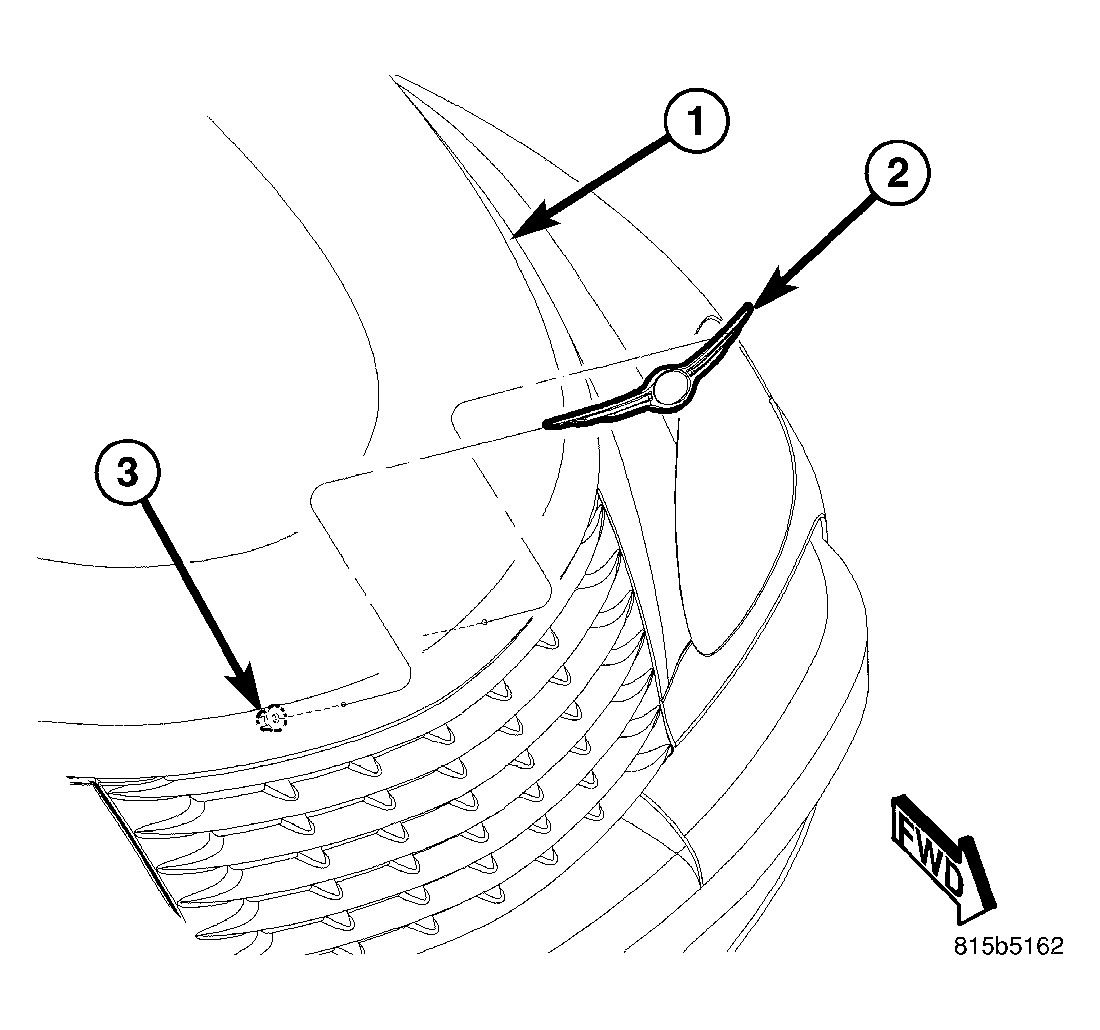

Fig 1: Emblem-Hood

Courtesy of DAIMLERCHRYSLER CORP.

1. Open and support the hood (1).
2. Remove the two nuts (3) that secure the hood emblem (2) the hood and remove the emblem.
