Convertible Top: Assembly-Latch: Description

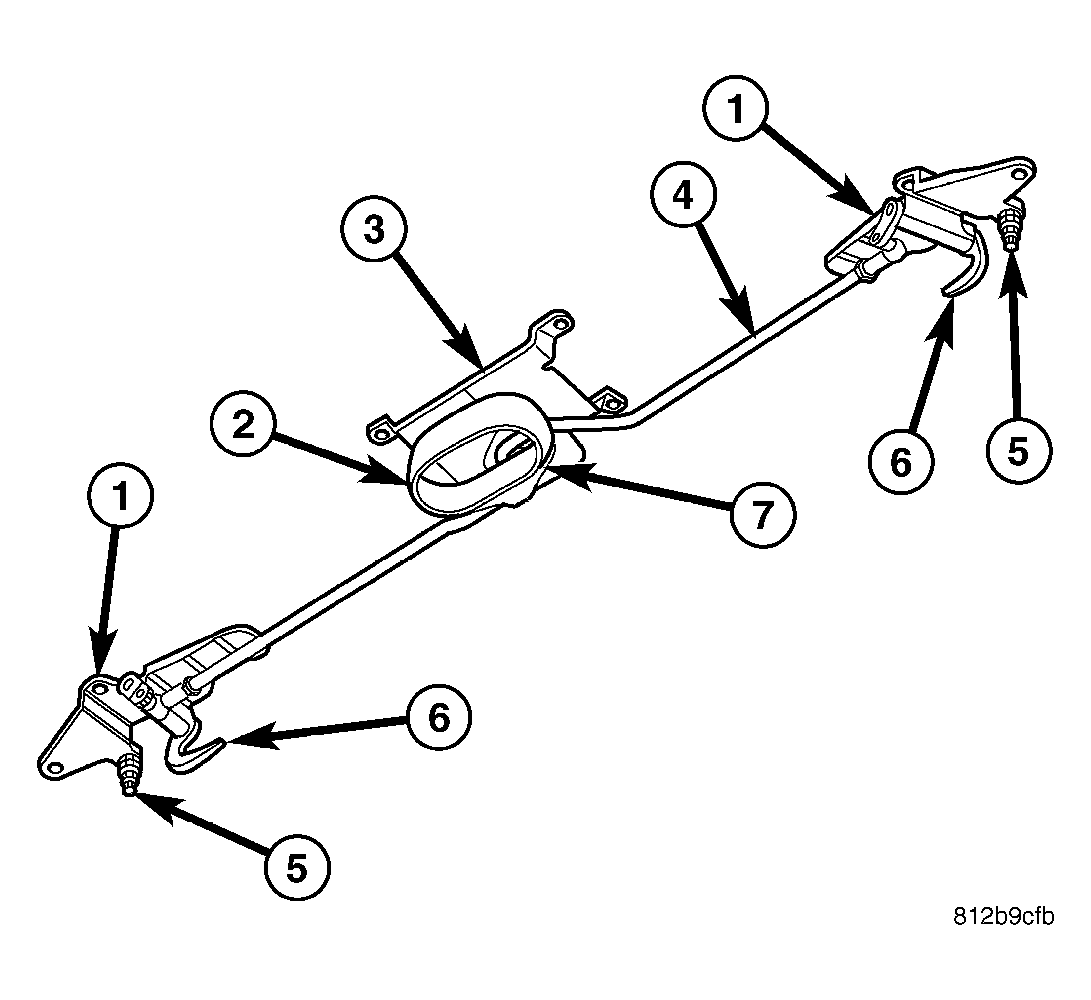

Fig 1: Latch System

Courtesy of DAIMLERCHRYSLER CORP.

The latch assembly for the folding convertible top consists of the following integral components:

1. Latch handle base (1)
2. D-handle and washer (2)
3. Latch handle base plate (3)
4. Two tie rods and ball sockets (4)
5. Two dowel pins (5)
6. Two latch hooks and levers (6)
7. Shaft bushing and turn stile (7)

The latch assembly is serviced only as an assembly. If any component of the latch assembly is damaged or inoperative, the entire assembly must be replaced.
