Dome Lamp - Pt27: Removal

  1. Open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Using a trim stick (special tool #C-4755) or equivalent, gently pry off the dome lamp cover from the sport bar. See Fig 1.

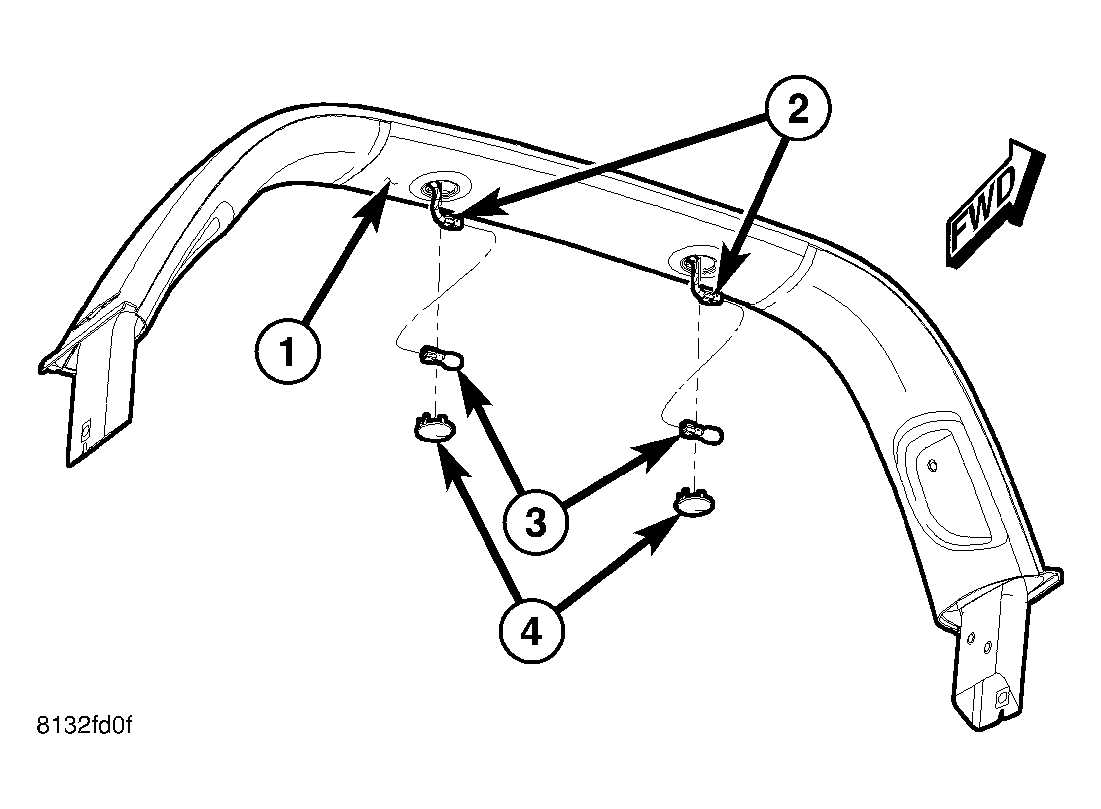

    Fig 1: DOME LAMPS - REMOVE/INSTALL
    GC0022940Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPORT BAR CENTER MOULDING
    2 - DOME LAMP ELECTRICAL CONNECTORS
    3 - DOME LAMPS
    4 - DOME LAMPS COVERS
  4. Disconnect the dome lamp from the connector. See Fig 1.
  5. Remove lamp from vehicle.
