B162F-Right Low Beam Control Circuit Low: Notes

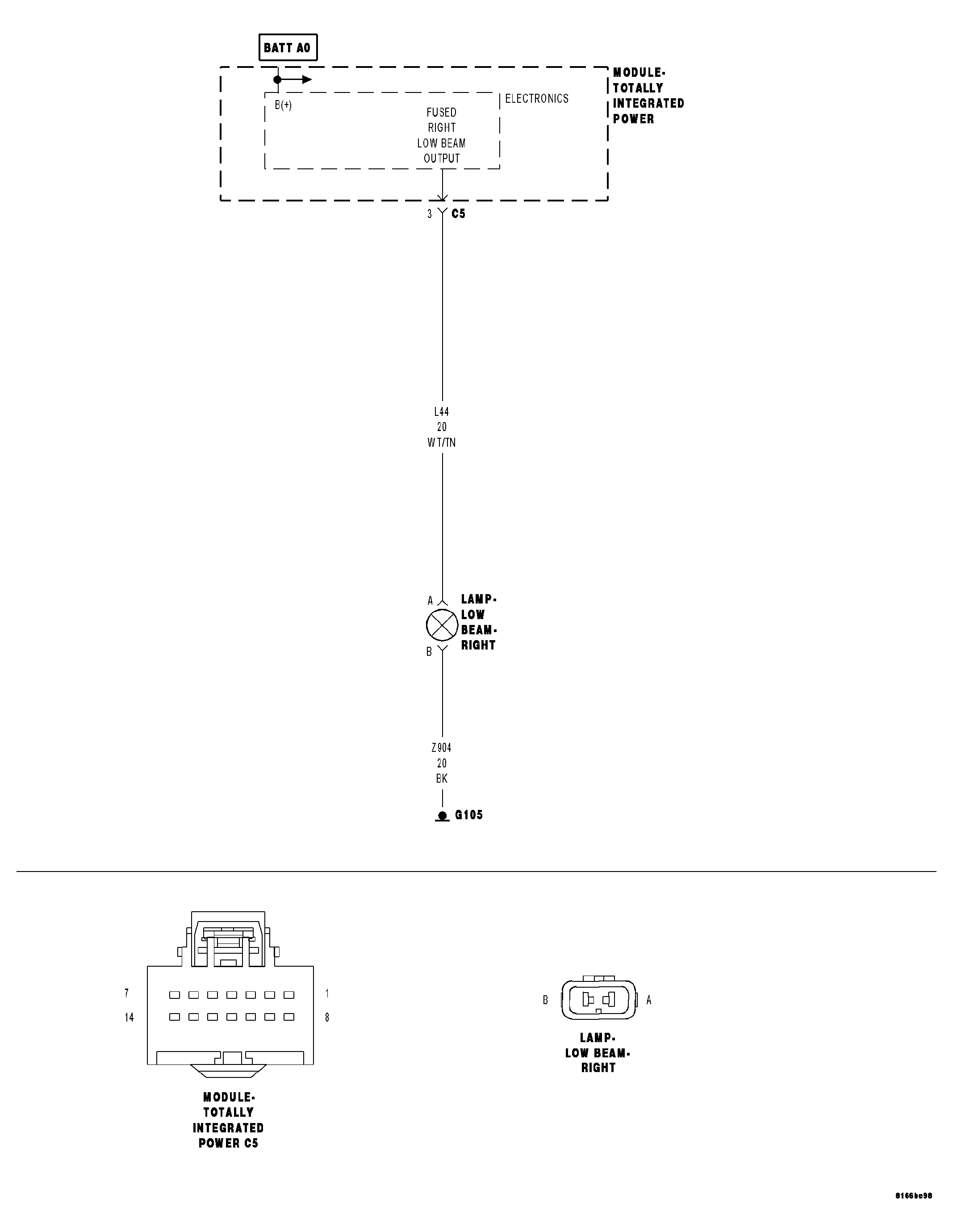

Fig 1: Right Low Beam Control Circuit

GC0041340

Courtesy of DAIMLERCHRYSLER CORP.
