Lighting Systems - Exterior (Service Information): Headlamp: Removal

1. Remove headlamp access cover in splash shield. See Figure.
2. Rotate socket counterclockwise one quarter turn.
3. Remove bulb and socket from headlamp housing.
4. Disconnect wire connector from back of headlamp high or low beam bulb.

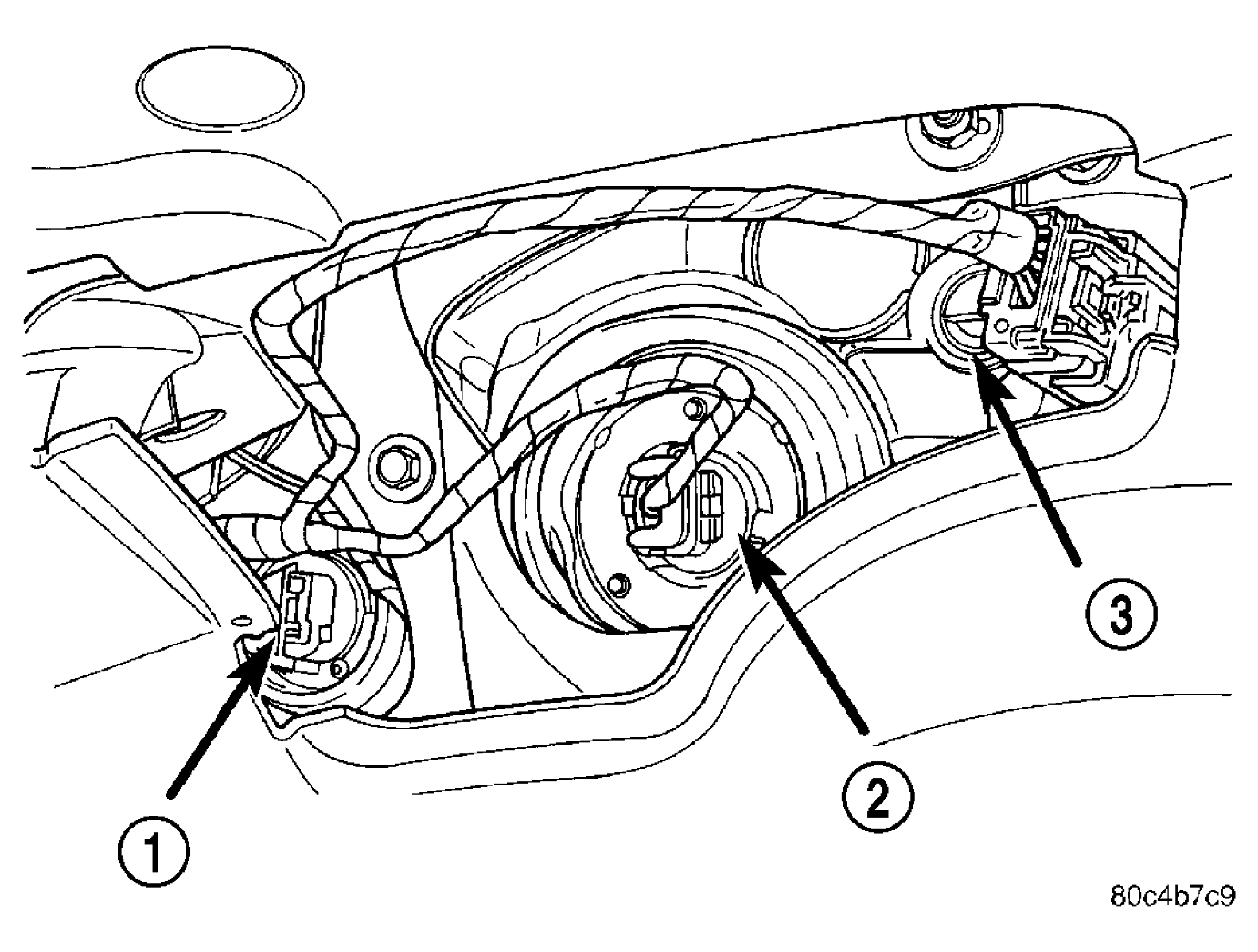

Fig 1: Headlamp Access

Courtesy of DAIMLERCHRYSLER CORP.

1 - HIGH BEAM LAMP

2 - LOW BEAM LAMP

3 - PARK/TURN SIGNAL LAMP
