Schematics And Diagrams

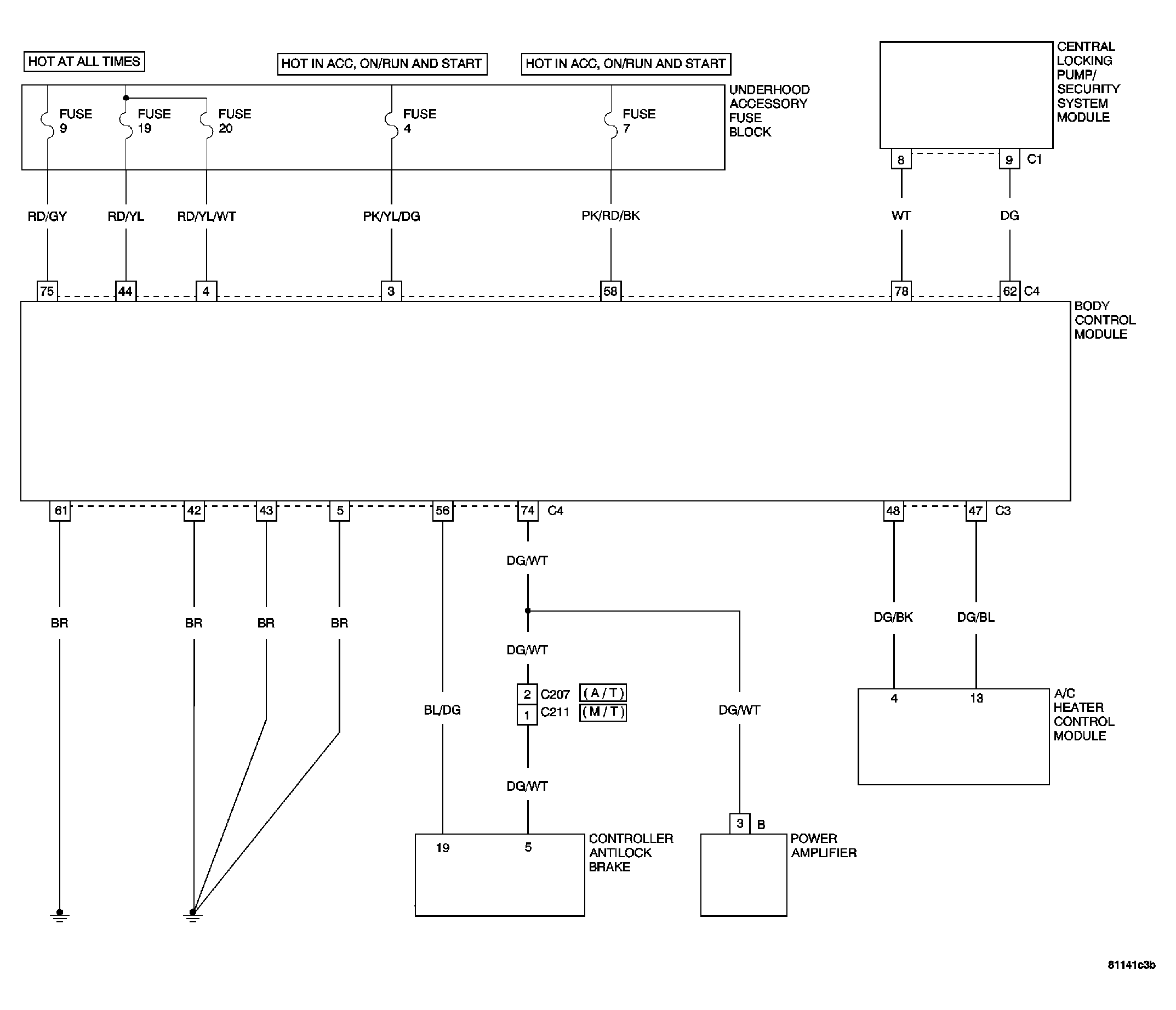

Fig 1: Body Control Module Circuit Diagram (1 Of 3)
GC0034894Courtesy of DAIMLERCHRYSLER CORP.

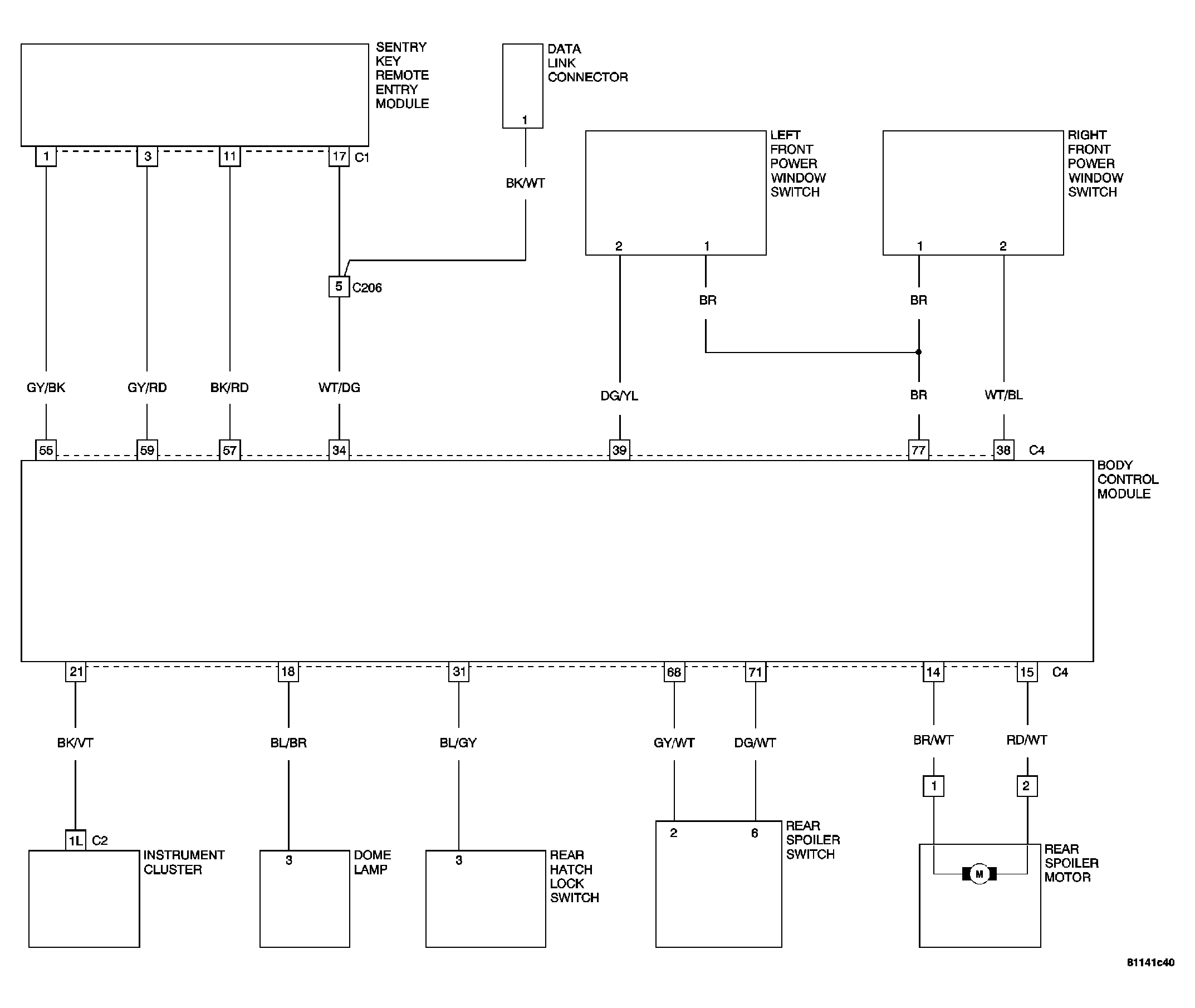

Fig 2: Body Control Module Circuit Diagram (2 Of 3)
GC0034895Courtesy of DAIMLERCHRYSLER CORP.

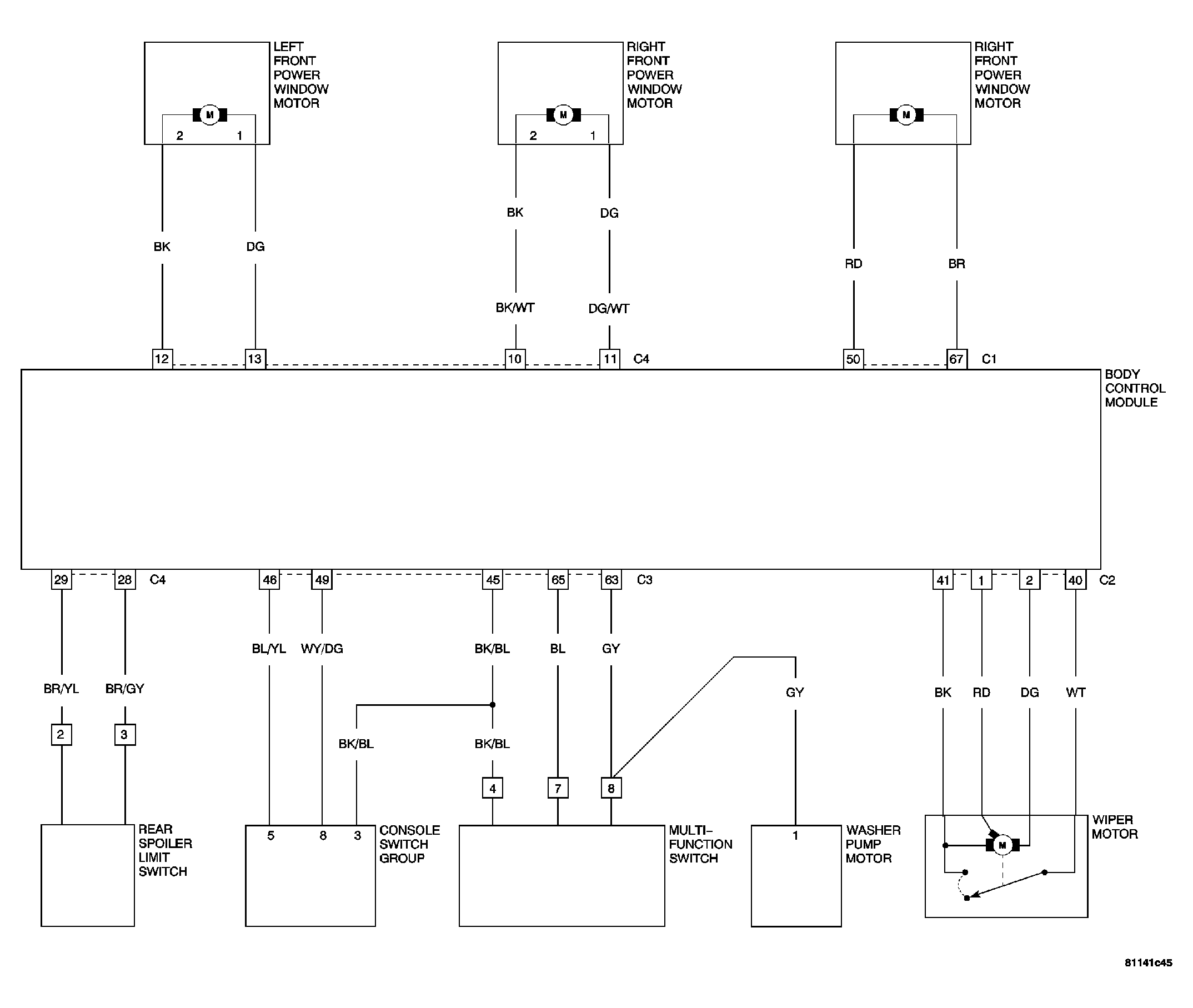

Fig 3: Body Control Module Circuit Diagram (3 Of 3)
GC0034896Courtesy of DAIMLERCHRYSLER CORP.
