Schematics And Diagrams

Fig 1: Vehicle Theft Security System Circuit Diagram

GC0035723

Courtesy of DAIMLERCHRYSLER CORP.

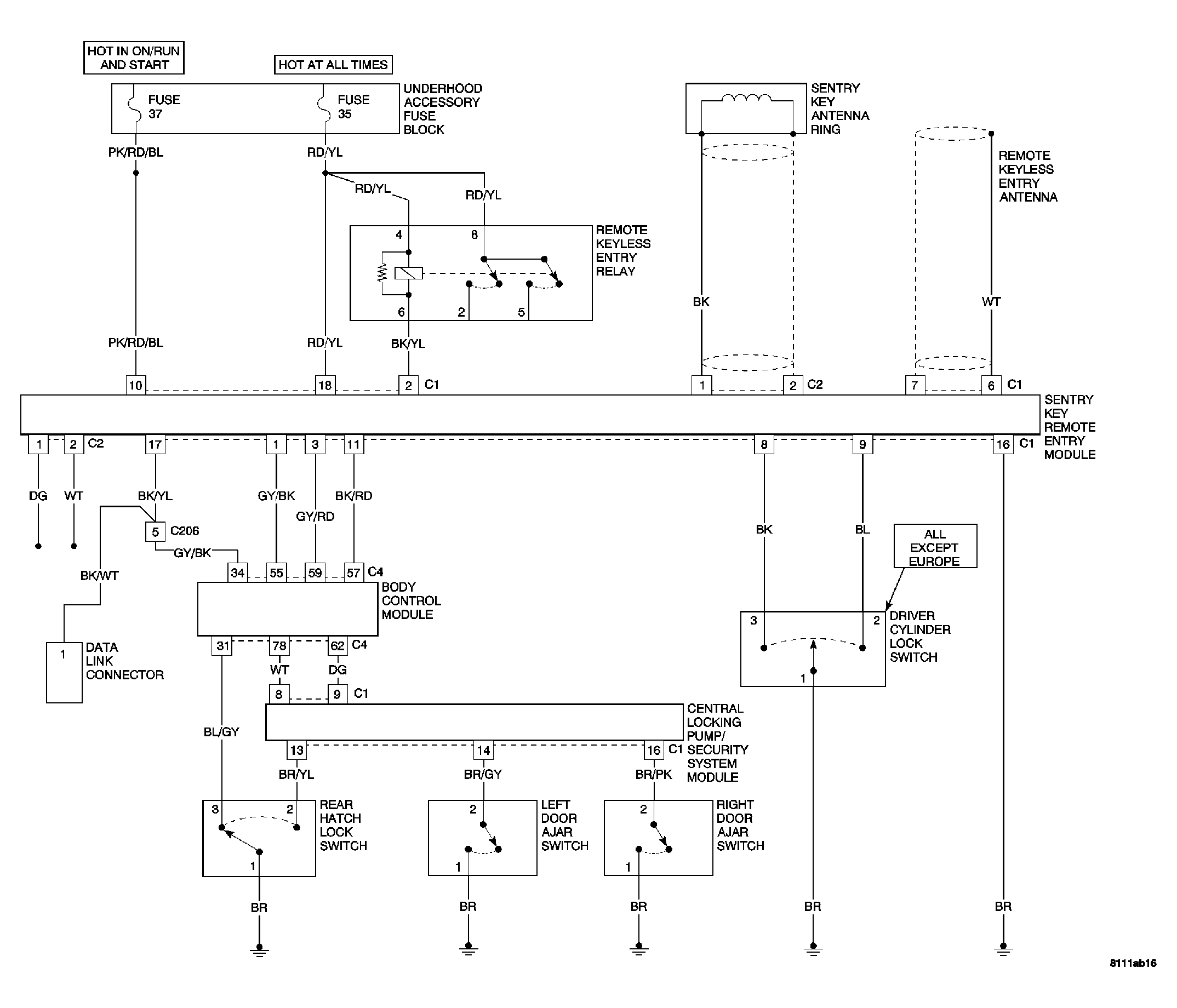

Fig 2: Sentry Key Remote Entry Module Circuit Diagram

GC0035722

Courtesy of DAIMLERCHRYSLER CORP.
