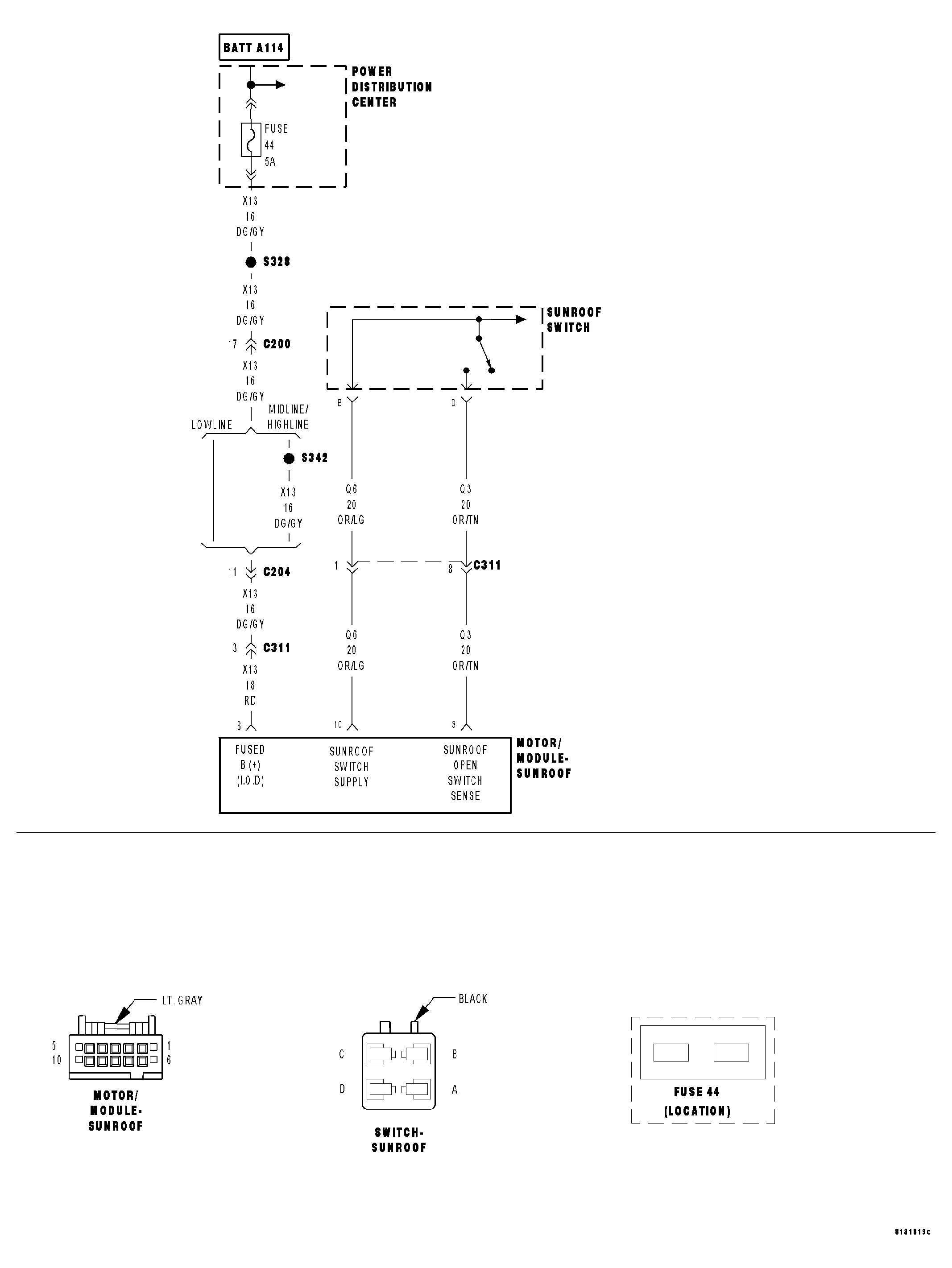

Home >> Chrysler >> 2006 >> 300 Base, 42RLE >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Power Top & Sunroof - Electrical Diagnosis >> Electrical Diagnosis >> Diagnosis And Testing >> B1841-Sunroof Open Switch Input Circuit High >> Circuit Schematic
