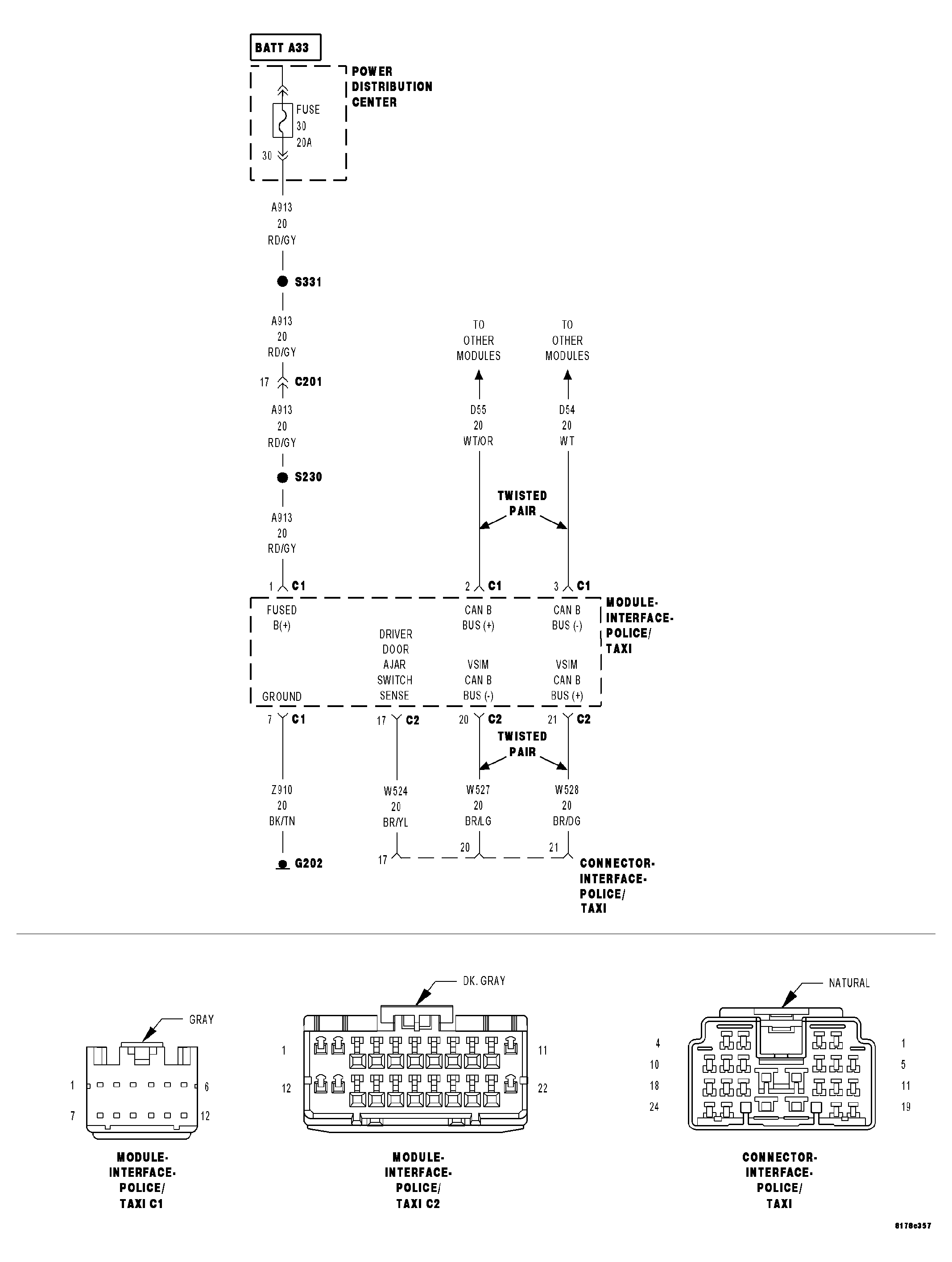

Home >> Chrysler >> 2006 >> 300 Base, 42RLE >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Message Center - Electrical Diagnostics >> Message Center - Electrical Diagnostics >> DTC Troubleshooting >> B19B4 - Driver Door Ajar Output Circuit Low >> Circuit Schematic
