Headlamp Switch: Locations

Instrument Panel Harness Connectors:

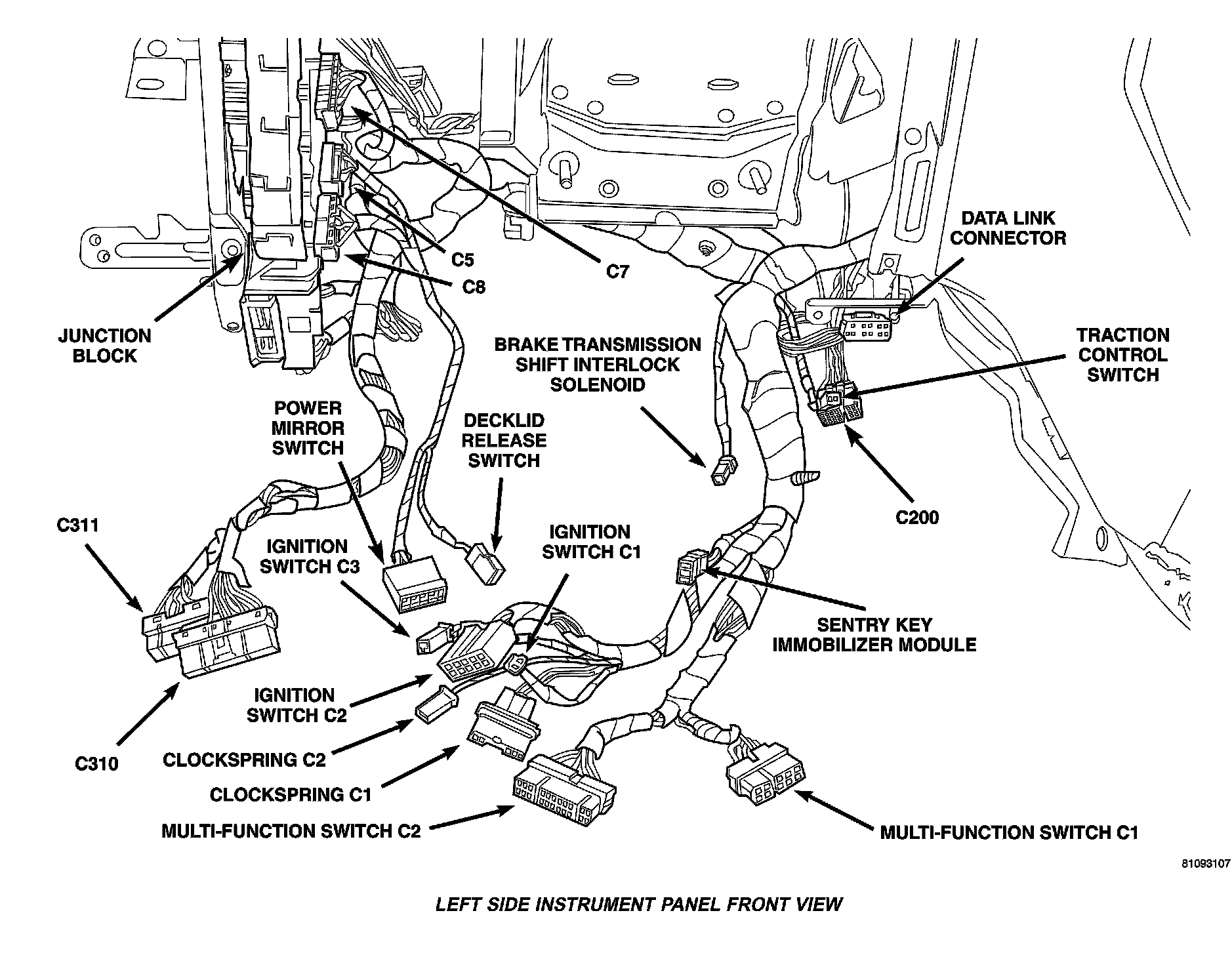

Left Side Instrument Panel Front View:
