Shift Interlock Cable: Installation

Verify that ignition key is in ACC position. See Fig 1.

Fig 1: Ignition Key/Switch Positions

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOCK

2 - ACC

3 - ON

4 - START

Install shift interlock cable to ignition cylinder. See Fig 2. Secure cable to instrument panel at retainer.

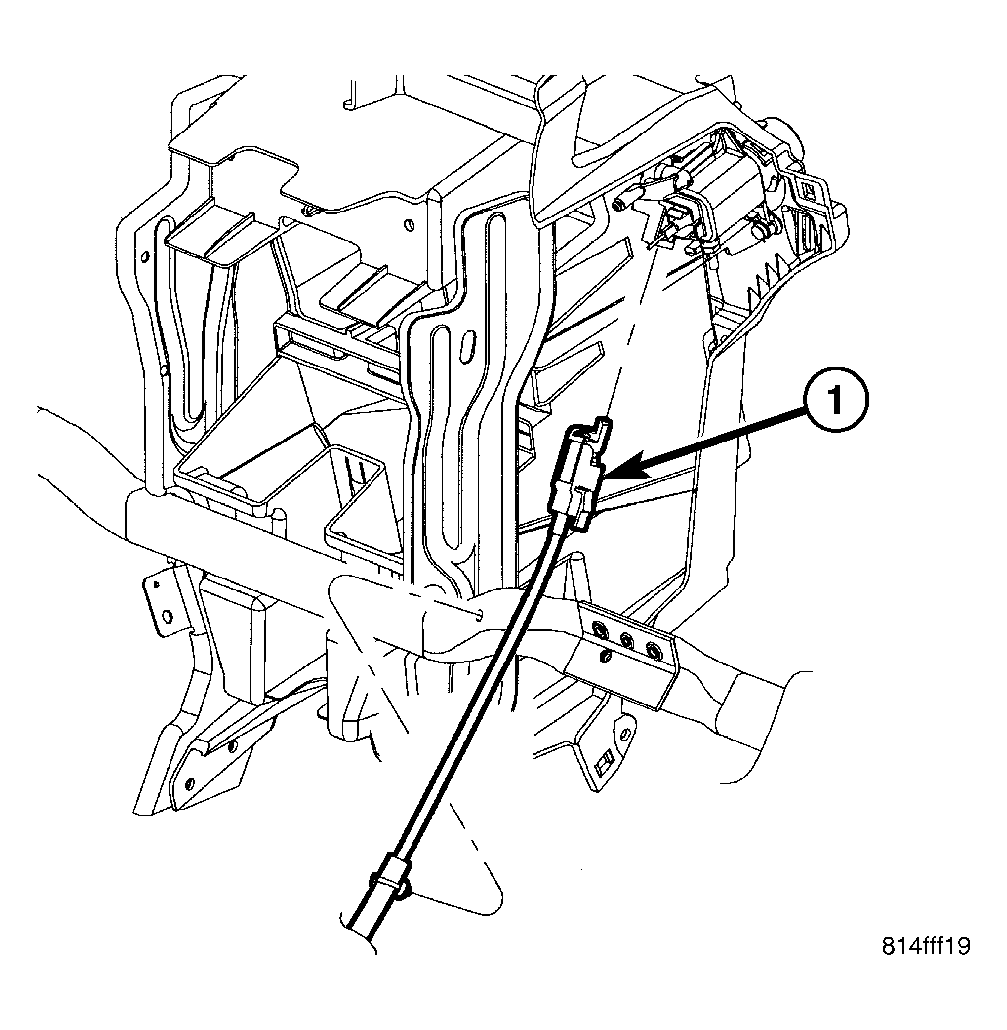

Fig 2: Interlock Cable At Ignition Cylinder
Courtesy of DAIMLERCHRYSLER CORP.

1 - INTERLOCK CABLE
Route shift interlock cable towards shift mechanism.
Connect interlock cable core to shift mechanism cam, and then secure cable housing to shift mechanism. See Fig 3.

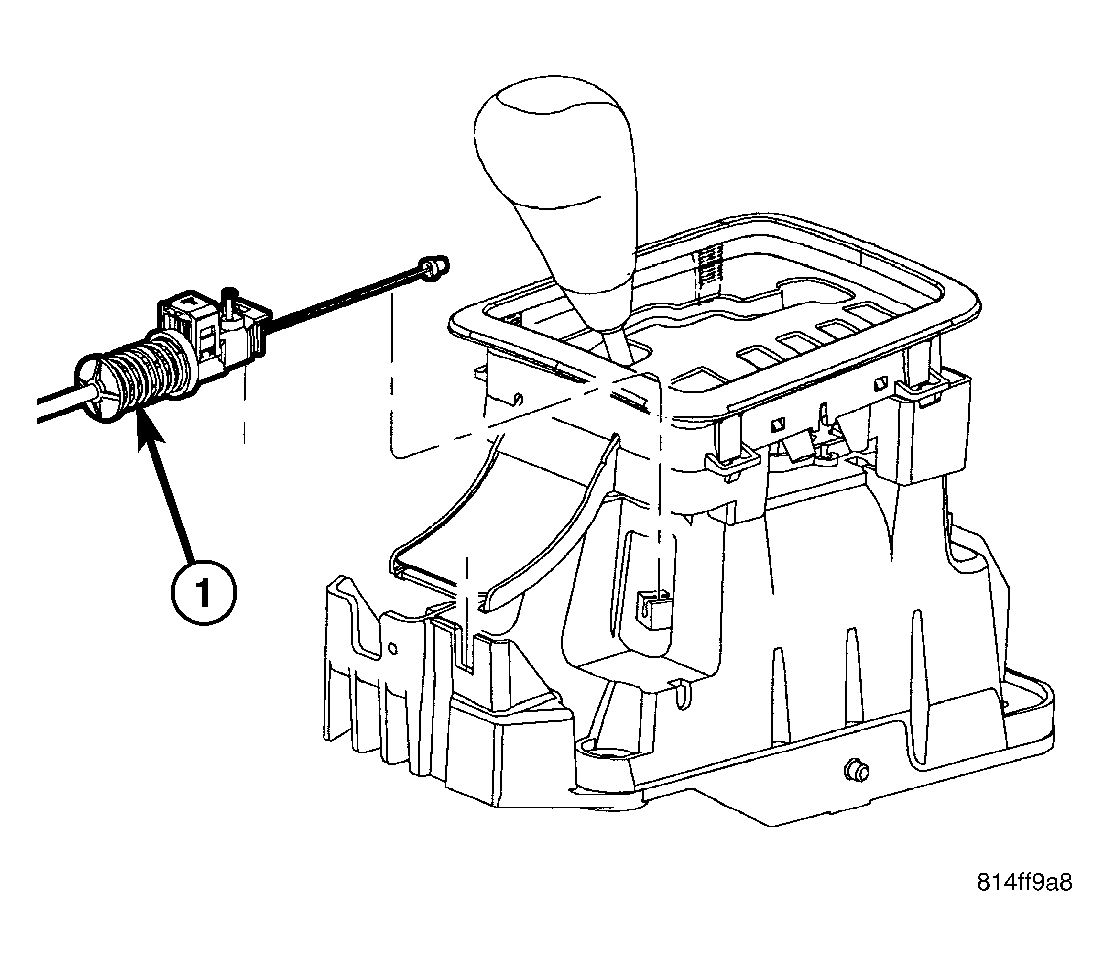

Fig 3: BTSI Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.

1 - BTSI CABLE
Adjust interlock cable. (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE/SHIFT INTERLOCK CABLE - ADJUSTMENTS)
Install center console assembly. (Refer to BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION)
