Second Row Seat Load Floor Panel: Removal

1. Fold second row seat down flat. See Fig 1.
2. Using a trim stick C-4755 or equivalent, disengage the seat back load floor panel push pins by pulling away from seat back.

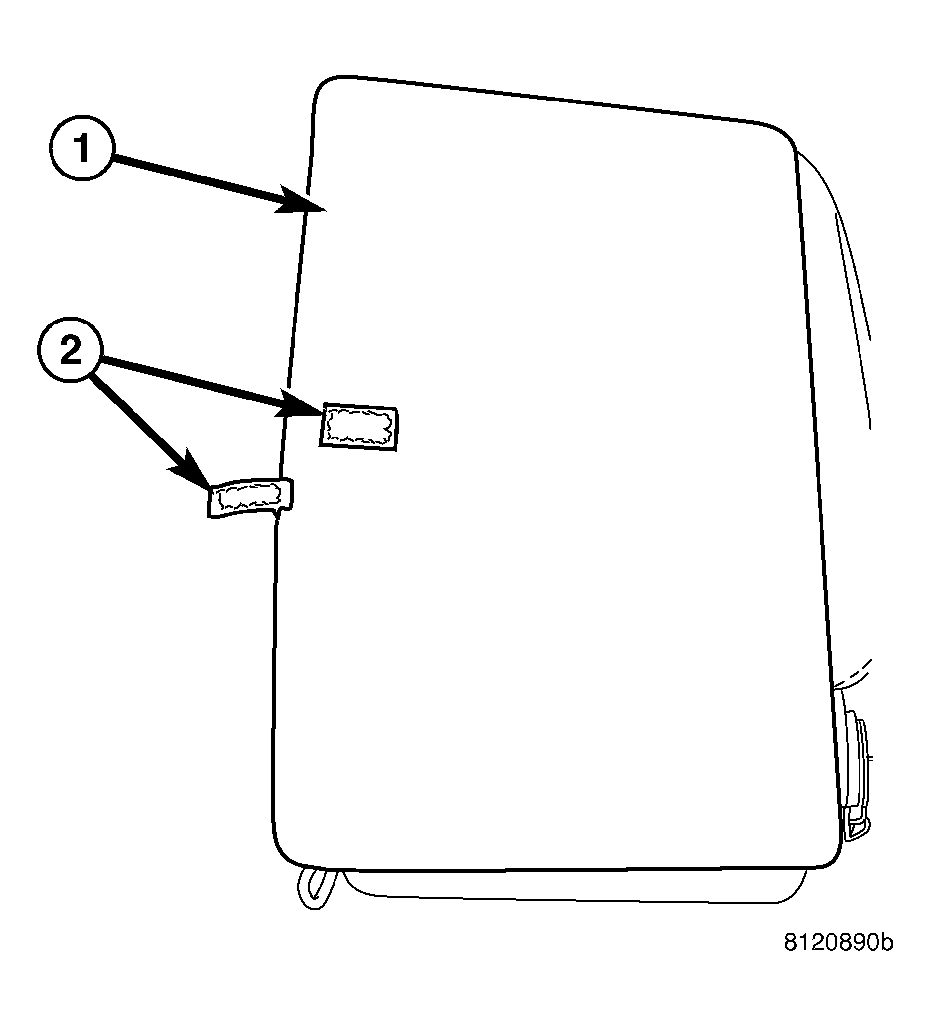

Fig 1: SEAT BACK LOAD FLOOR PANEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOAD FLOOR PANEL

2 - HOOK AND LOOP WITH STRAP
