Sun Visor: Removal

All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air bag warning label applied to the sun visor, verify label availability and ensure the label is installed.

Disengage sun visor from center support.
Remove screws attaching sun visor to roof header. See Fig 1.
Remove sun visor from roof.
If equipped, disconnect illuminated vanity mirror wire connector from body harness.
Remove sun visor from vehicle.

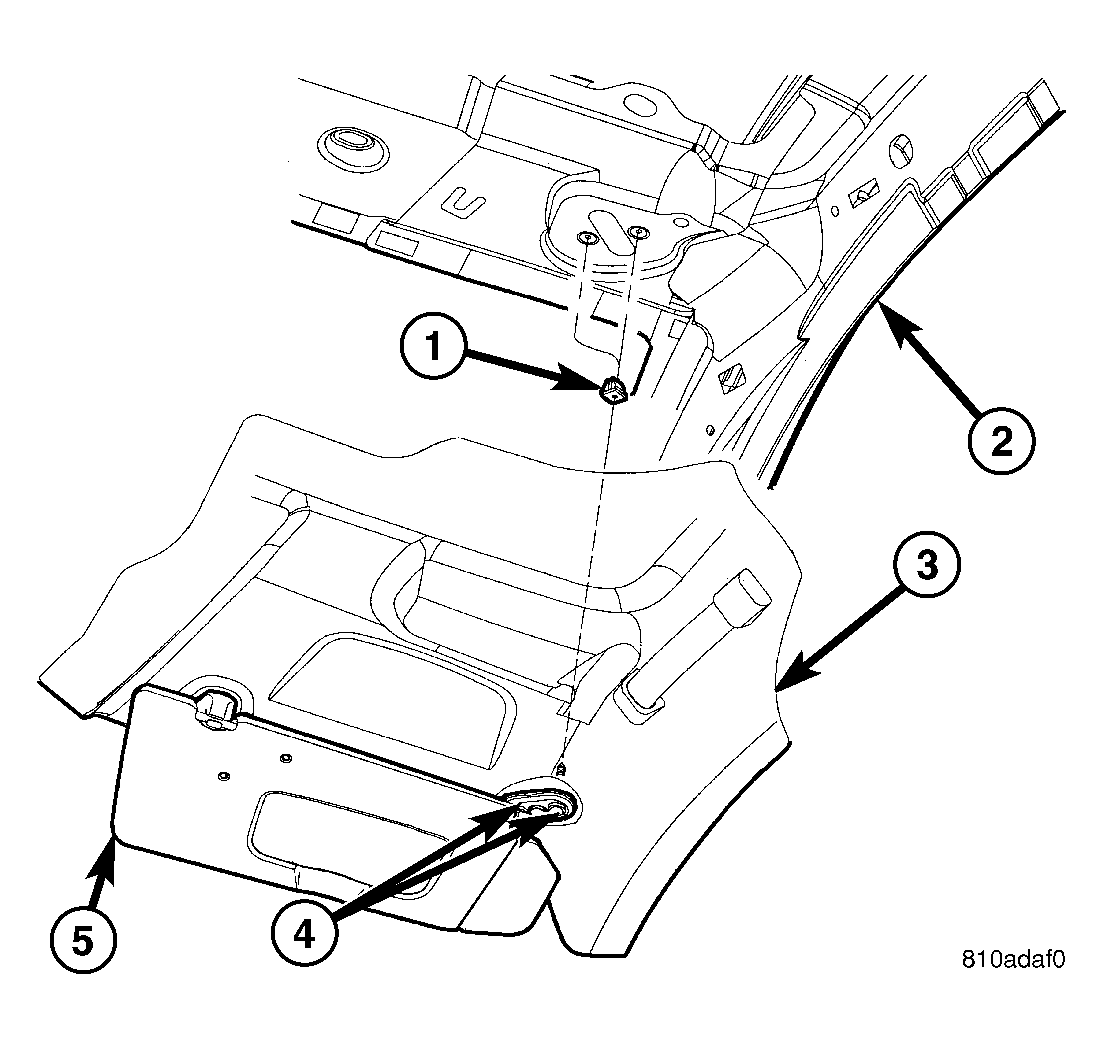

Fig 1: SUN VISOR AND HEADLINER ATTACHING SCREWS

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPRING NUTS

2 - ROOF PANEL

3 - HEADLINER ASSEMBLY

4 - VISOR AND HEADLINER ATTACHING SCREWS

5 - SUN VISOR AND SUN VISOR CENTER SUPPORT
