B-Pillar Upper Trim: Removal
- Remove bolt attaching lower seat belt anchor to floor.
- Lower shoulder belt height adjuster to the bottom of travel.
- Remove shoulder belt turning loop from height adjuster.
- Use a Snap-on® Trim Pad Remover tool (A179A), or equivalent, and remove shoulder belt height adjuster knob.

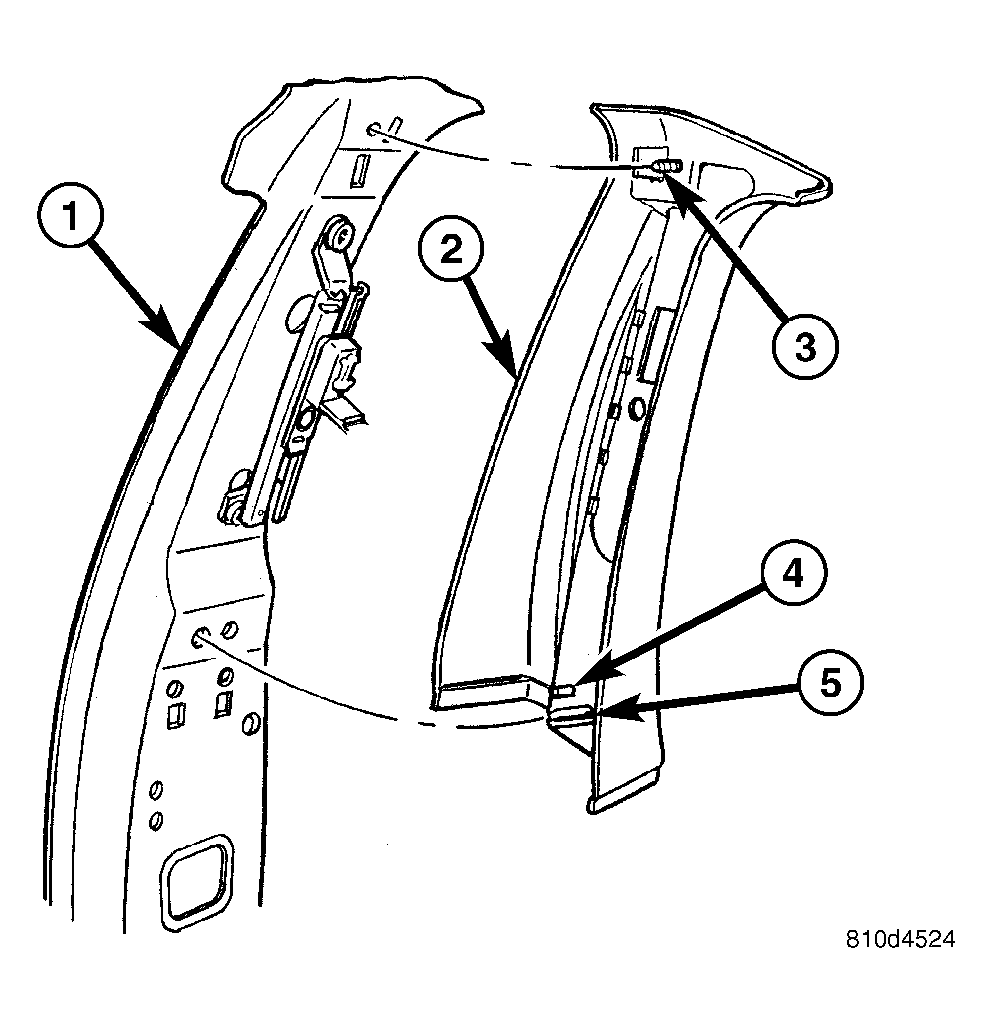

- Remove shoulder belt bezel from trim cover. See Fig 1.
- Remove screw attaching trim cover to B-pillar from inside bezel cavity.
- Disengage hidden clips attaching trim cover to B-pillar.
- Remove B-pillar trim cover from vehicle.
| 1 - B-PILLAR |
| 2 - B-PILLAR UPPER TRIM PANEL |
| 3 - ATTACHING SCREW |
| 4 - LOCATING PIN |
| 5 - 4-WAY LOCATOR PIN |
