Side View Mirror: Removal
- Using a trim stick C-4755 or equivalent, move the front door frame molding. (Refer to REMOVAL ).
- Remove door trim panel and water dam. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
- Disconnect the electrical connector, if equipped. See Fig 1.
- Using a trim stick or equivalent, remove the mirror flag stuffier. See Fig 2.
- Remove the nuts attaching mirror. See Fig 3.
- Remove the mirror from the door.

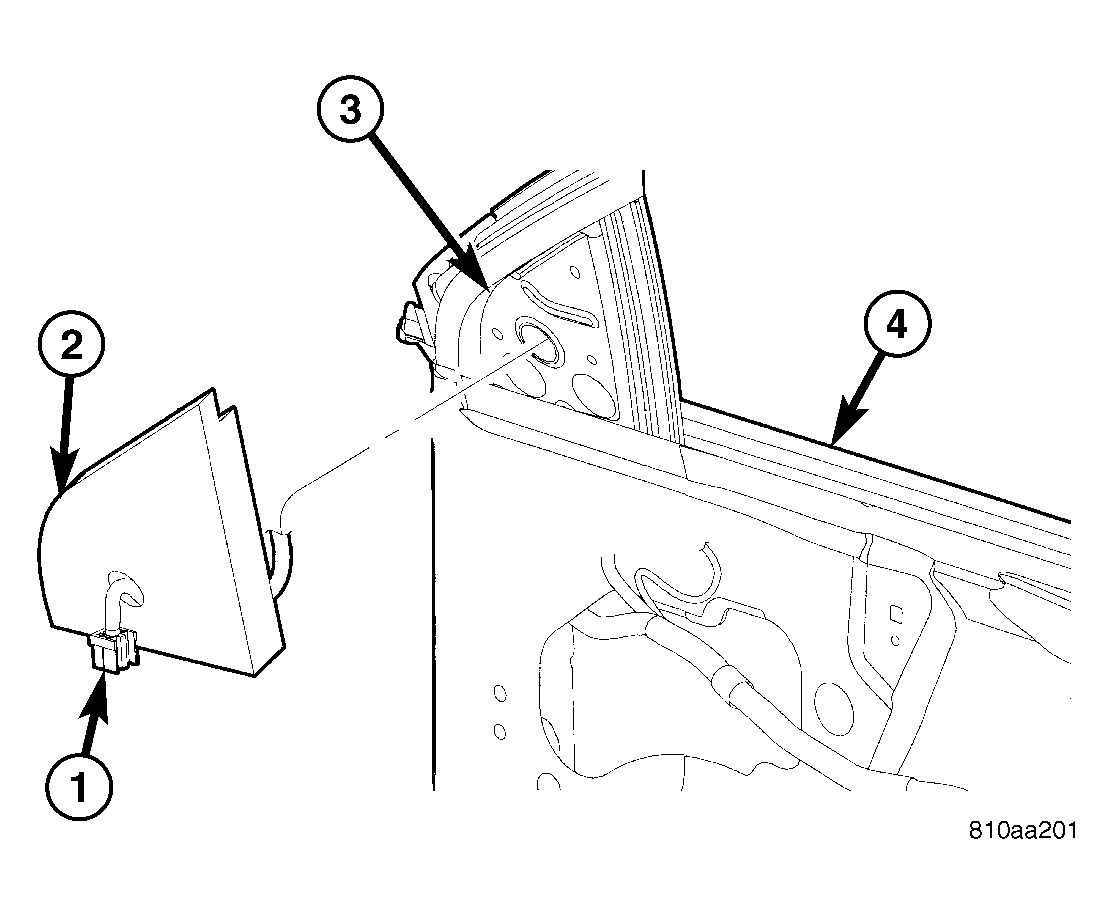

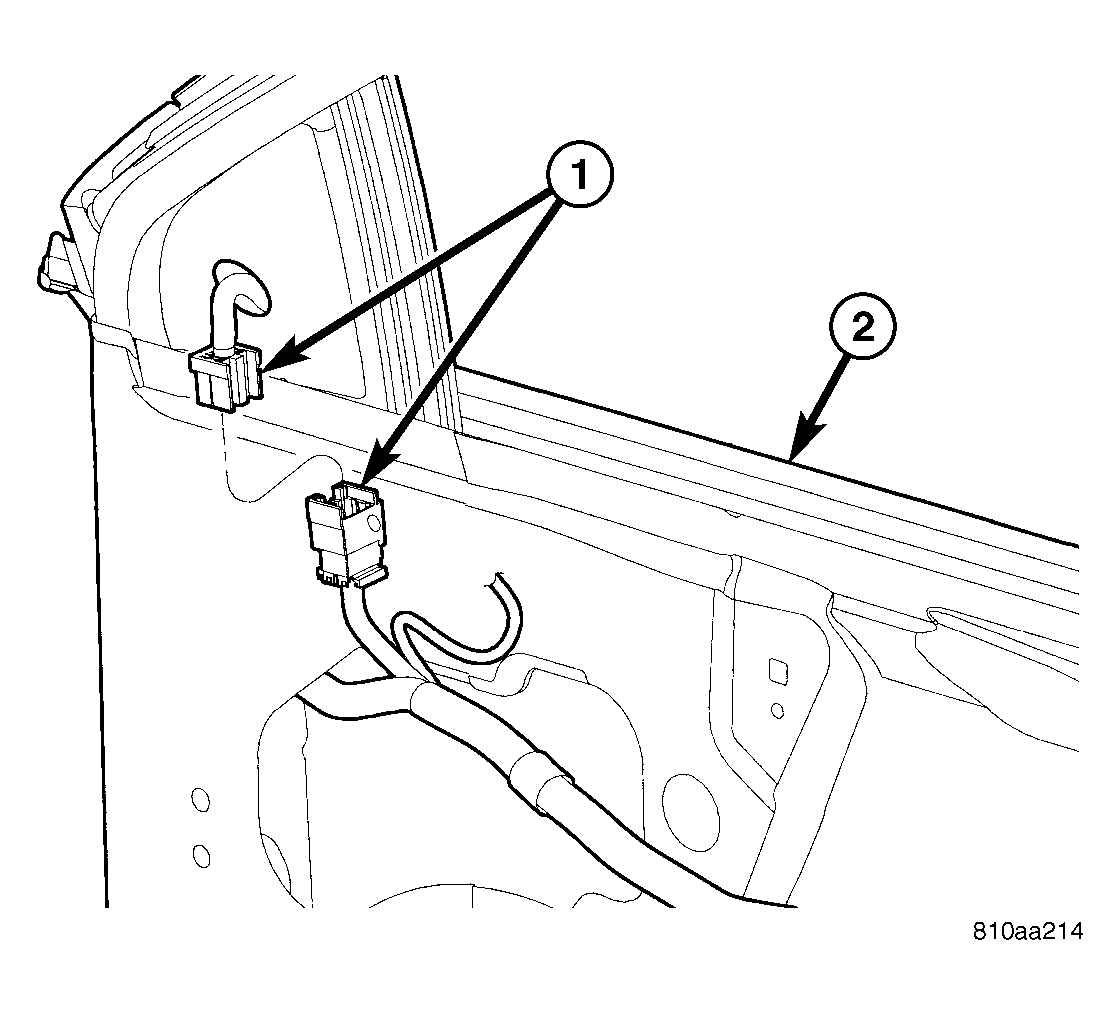

| 1 - OUTSIDE MIRROR WIRE CONNECTORS |
| 2 - DOOR ASSEMBLY |
| 1 - MIRROR WIRE CONNECTOR |
| 2 - FOAM STUFFIER |
| 3 - DOOR MIRROR FLAG REINFORCEMENT |
| 4 - DOOR ASSEMBLY |

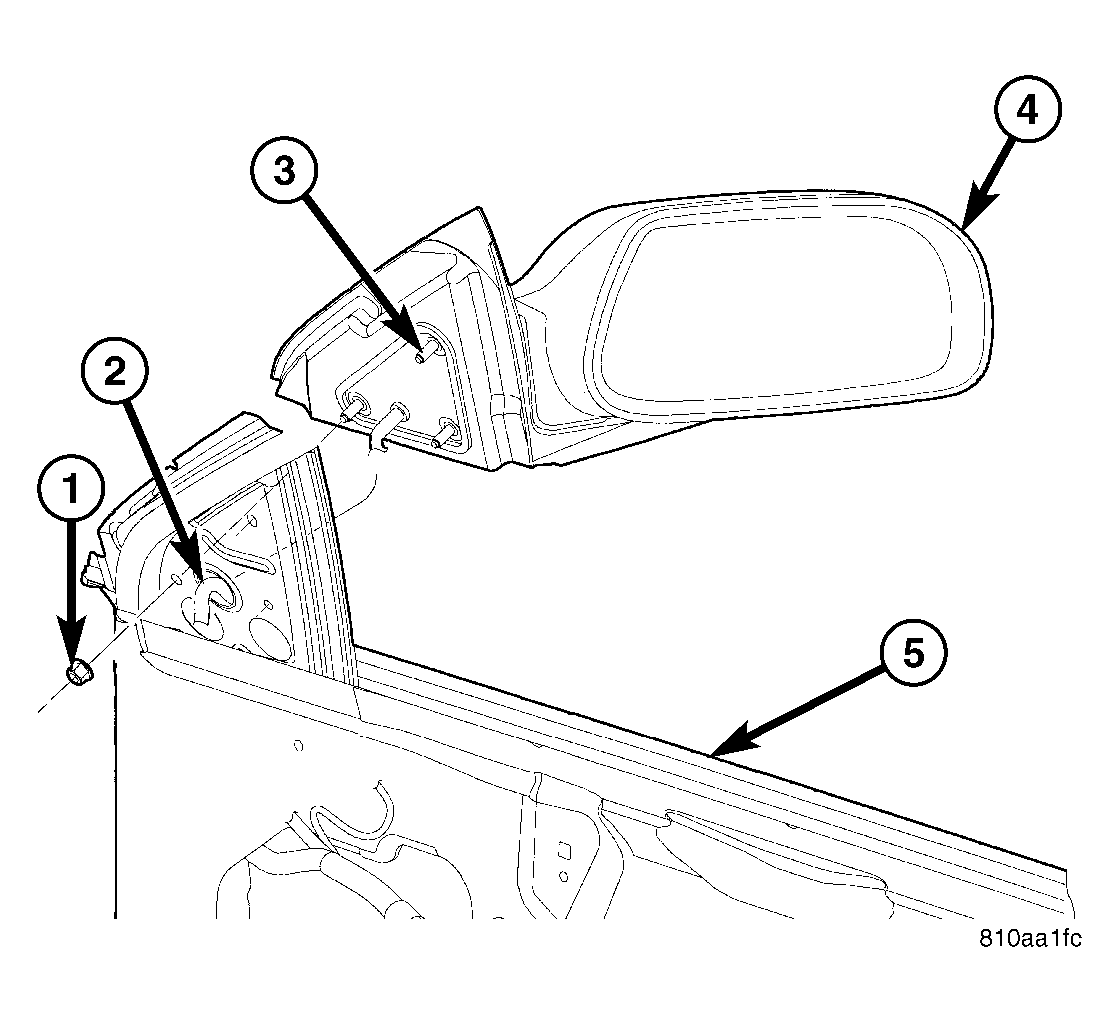

| 1 - ATTACHING NUT(S) |
| 2 - ACCESS HOLE FOR WIRE CONNECTOR |
| 3 - MIRROR STUDS |
| 4 - OUTSIDE MIRROR ASSEMBLY |
| 5 - DOOR ASSEMBLY |
