Luggage Rack: Removal
CAUTION:
The luggage rack has to be removed before the cross bars can be remove.

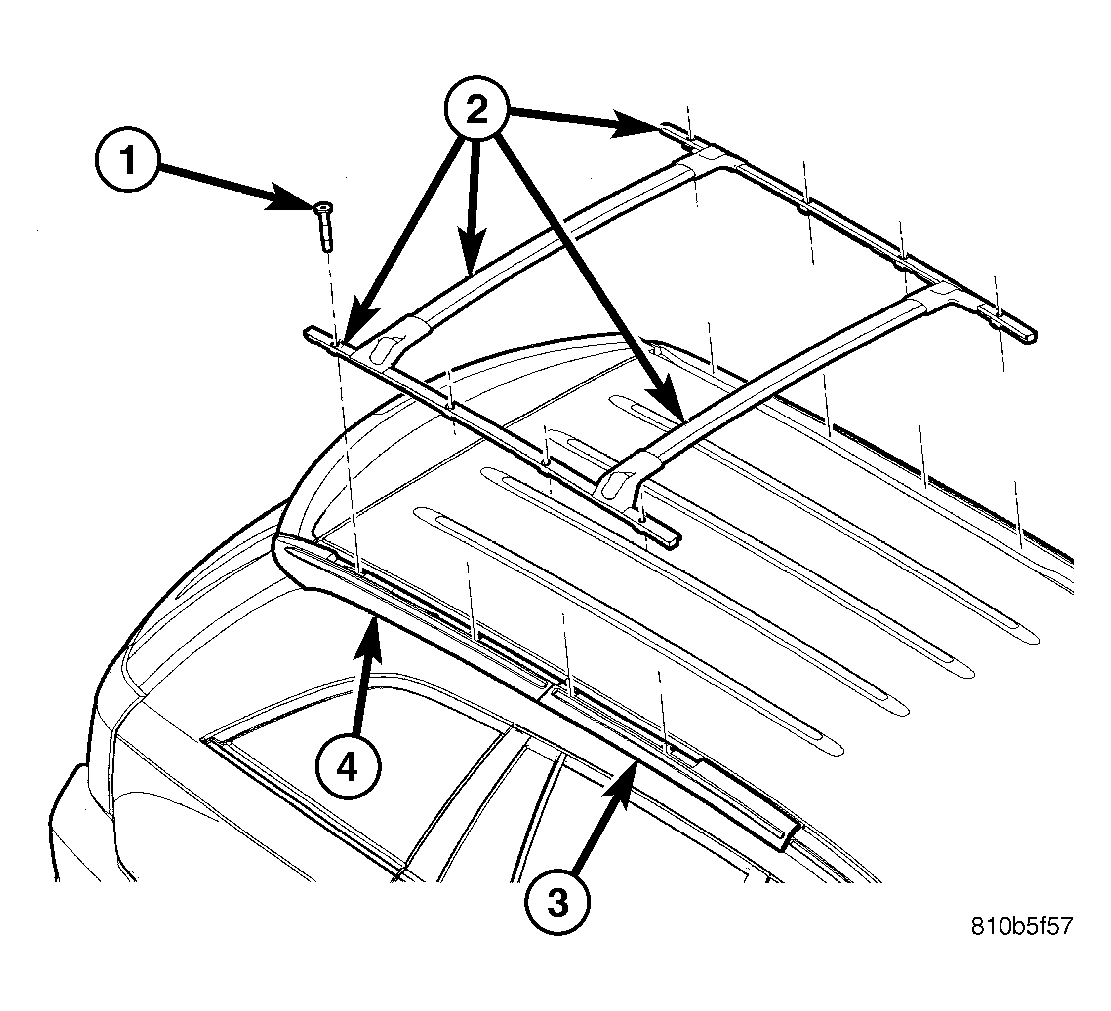

- Remove screws attaching side rails. See Fig 1.
- Remove luggage rack assembly from vehicle.
- Depress crossbar lever down on each side of crossbar to unlock.
- Remove crossbar(s) from side rails by sliding bar off the front of the side rails.
| 1 - ROOF SIDE RAIL ATTACHING SCREW(S) |
| 2 - LUGGAGE RACK ASSEMBLY |
| 3 - APERTURE APPLIQUE |
| 4 - D-PILLAR APPLIQUE |
