Front Wiper Arms: Removal

Using a trim stick (special tool #C-4755) or equivalent, gently pry the arm retaining nut cap off.
Remove the nut holding wiper arm to the wiper pivot.
Using a suitable two jaw puller, separate the wiper arm from the wiper pivot. See Fig 1.

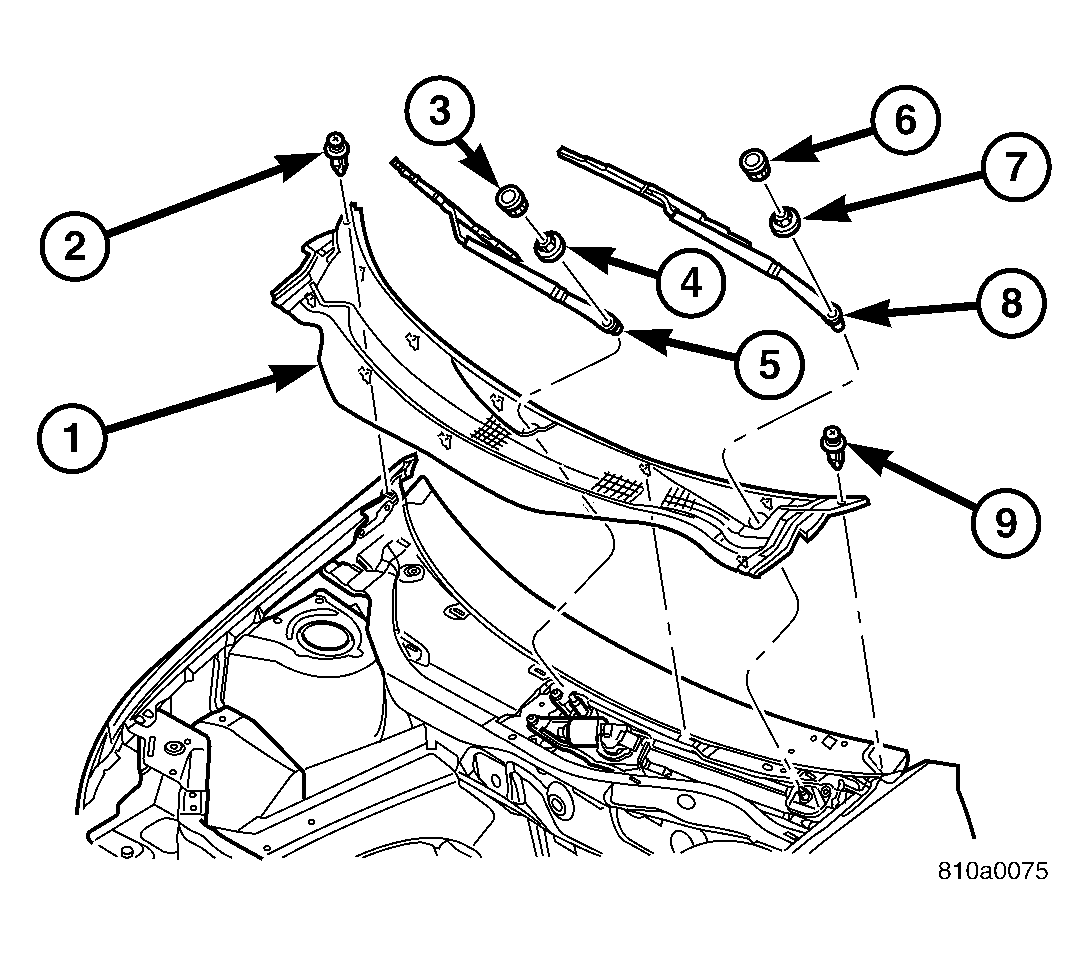

Fig 1: Front Wiper Arm - Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - COWL PANEL

2 - COWL PANEL RETAINERS

3 - RIGHT WIPER ARM RETAINING NUT COVER

4 - RIGHT WIPER ARM RETAINING NUTS

5 - RIGHT WIPER ARM

6 - LEFT WIPER ARM RETAINING NUT COVER

7 - LEFT WIPER ARM RETAINING NUT

8 - LEFT WIPER ARM

9 - COWL PANEL RETAINERS
