Park Assist Sensor: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove rear fascia REAR FASCIA .

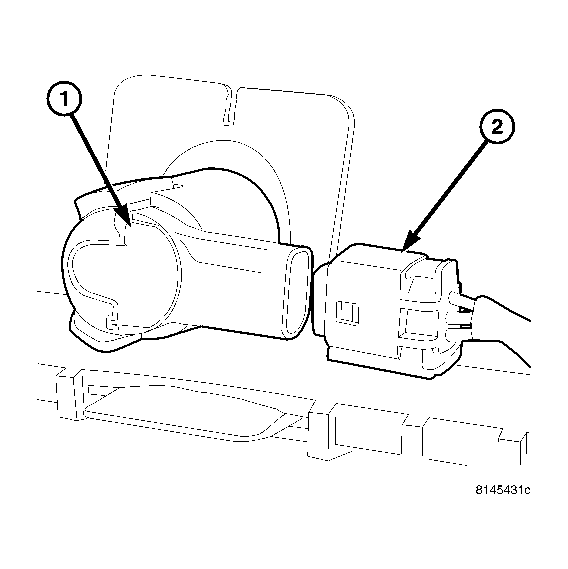

    Fig 1: Park Assist Sensor Connector
    GC0002341Courtesy of DAIMLERCHRYSLER CORP.
    1 - PARK ASSIST SENSOR
    2 - ELECTRICAL CONNECTOR
  3. Disconnect the sensor electrical connector. See Fig 1.

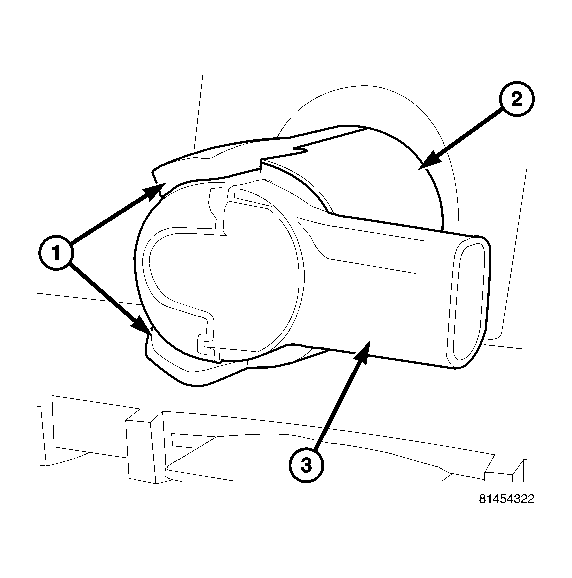

    Fig 2: Park Assist Sensor Remove/Install
    GC0002342Courtesy of DAIMLERCHRYSLER CORP.
    1 - SENSOR RETAINING TABS
    2 - SENSOR RETAINING BEZEL
    3 - PARK ASSIST SENSOR
  4. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the two retaining tabs and pull the sensor straight out of the retaining bezel. See Fig 2.
