Video Screen: Removal

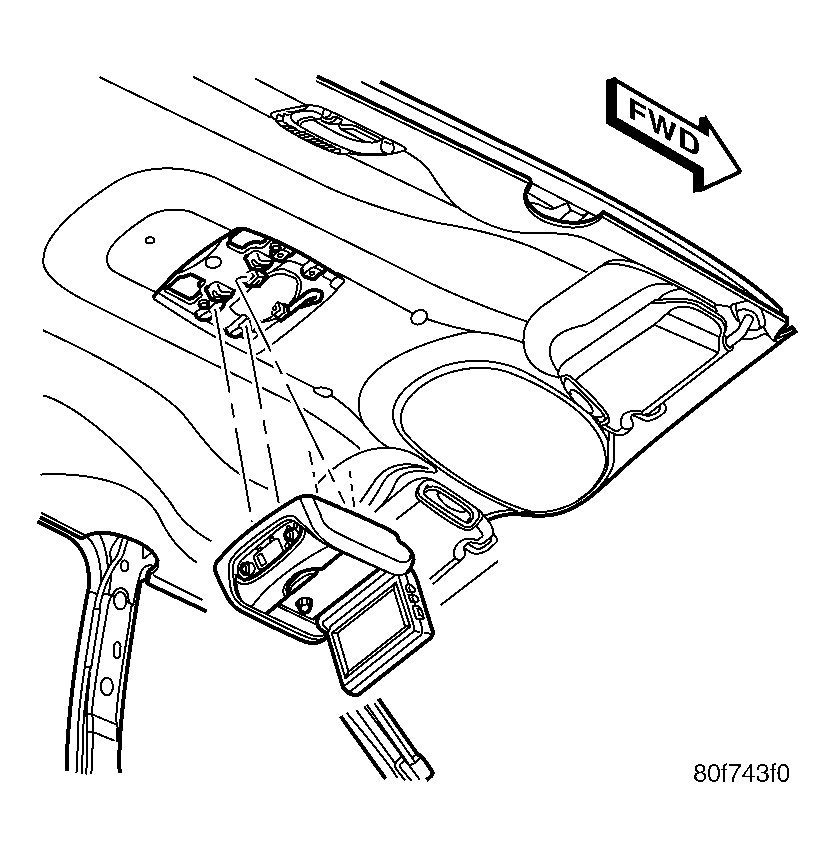

Fig 1: Video Screen
GC0002266Courtesy of DAIMLERCHRYSLER CORP.
WARNING: THIS VEHICLE CONTAINS MERCURY ADDED DEVICES ADDED BY THE MANUFACTURER: NAVIGATION DISPLAY. REMOVE DEVICES BEFORE VEHICLE DISPOSAL. UPON REMOVAL OF DEVICES, PLEASE REUSE, RECYCLE, OR DISPOSE OF AS HAZARDOUS WASTE.
  1. Disconnect and isolate the battery negative battery cable.
  2. Open the video screen.
  3. Remove the mounting fasteners. See Fig 1.
  4. Disconnect wire harness connector and remove video screen.
