Exterior Lights/Front Lighting

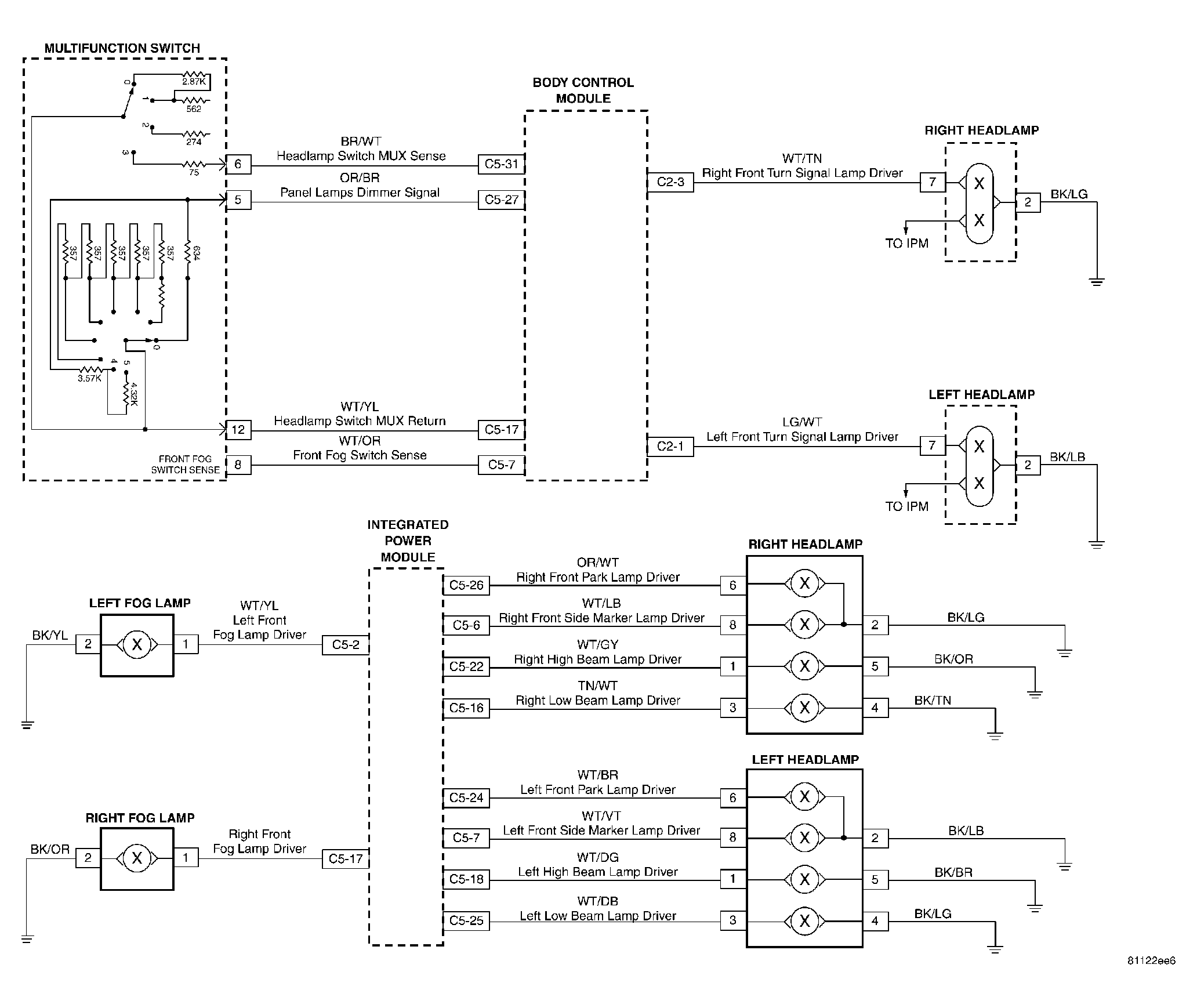

Fig 1: Exterior Lights/Front Lighting Schematic Diagrams

G04528369

Courtesy of DAIMLERCHRYSLER CORP.
