Schematic Diagrams: Chime

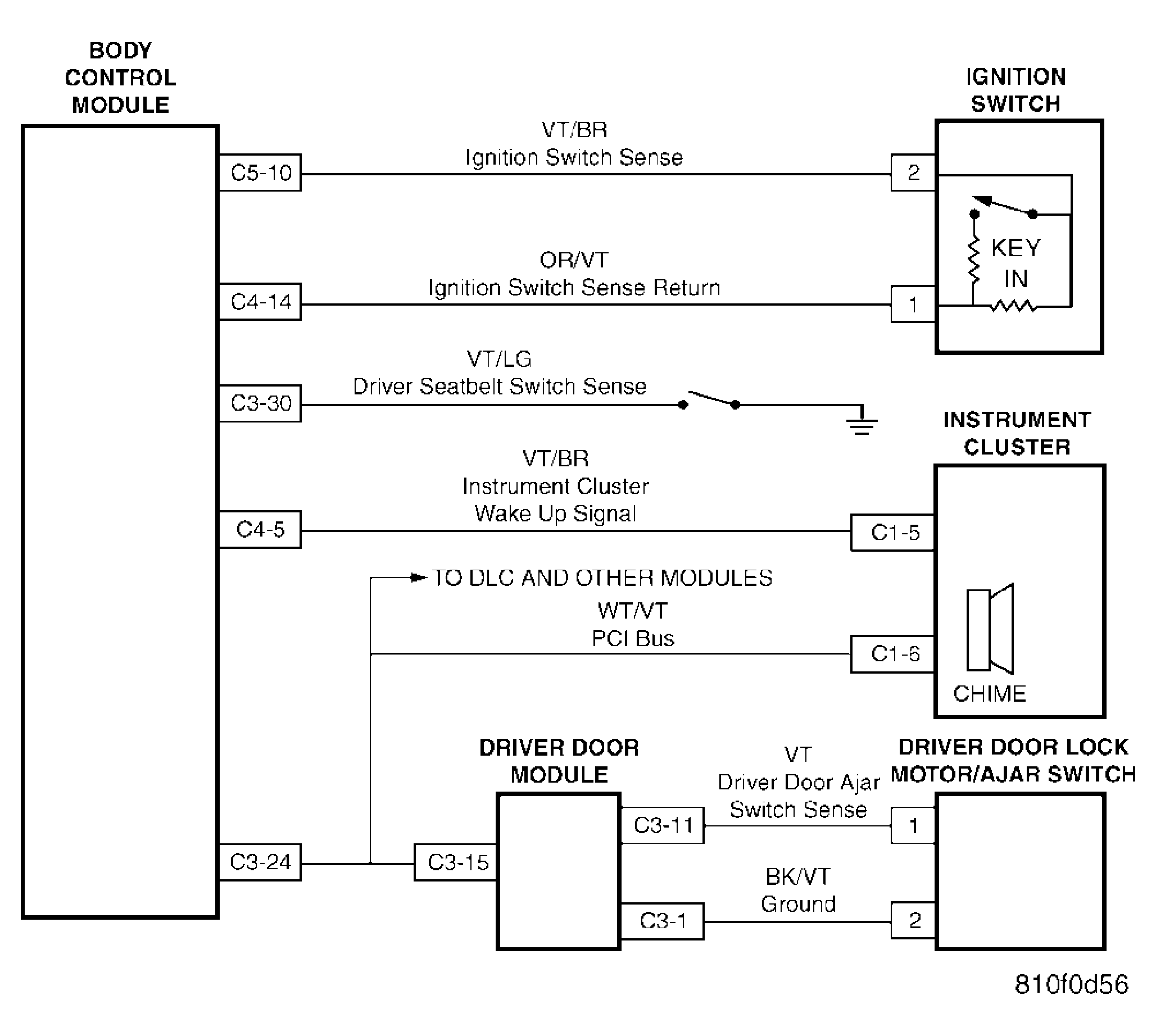

Fig 1: Chime System Schematic Diagram

G04528363

Courtesy of DAIMLERCHRYSLER CORP.
