Satellite Digital Audio Receiver (Soar) System

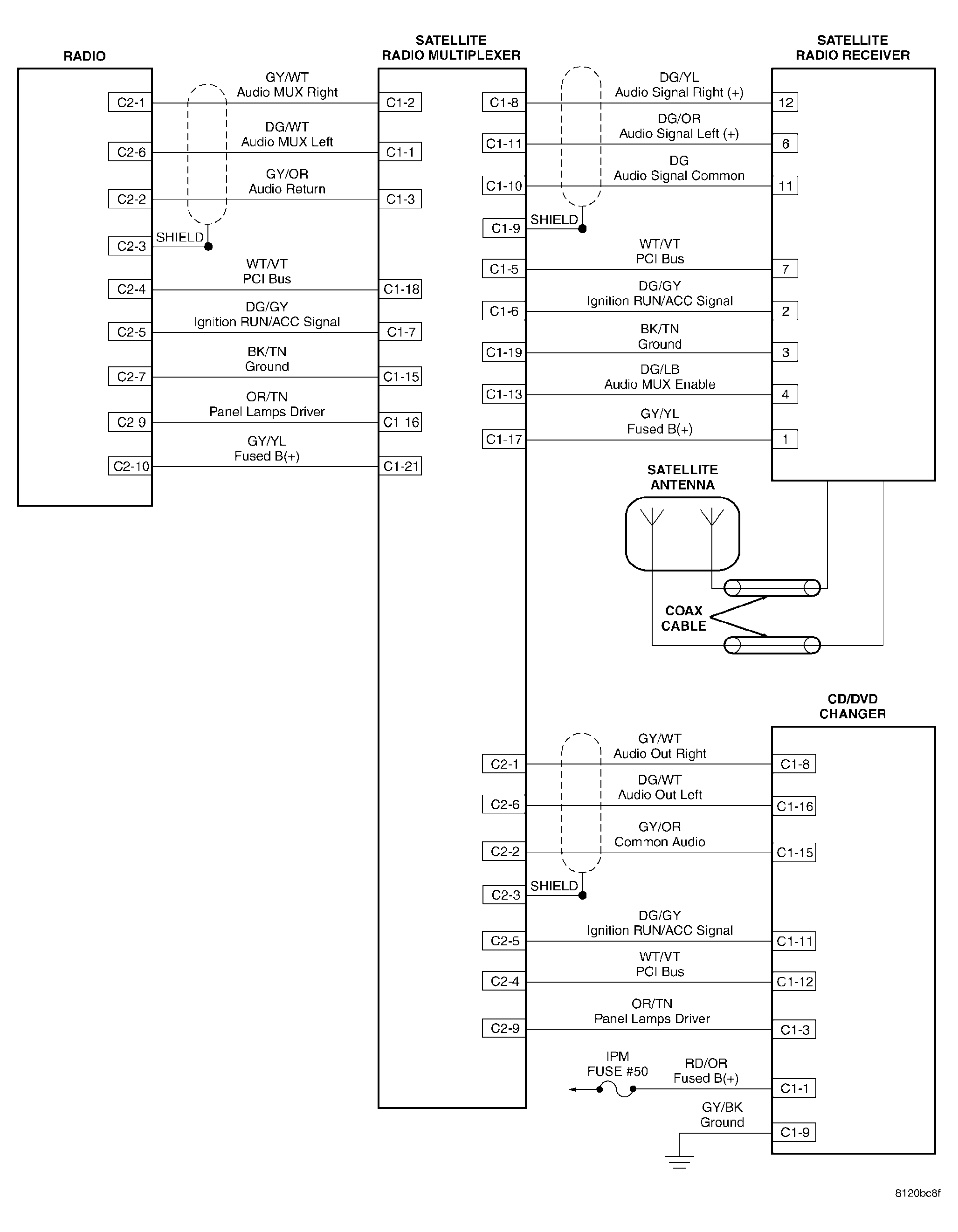

Fig 1: Satellite Digital Audio Receiver (SOAR) System Schematic Diagram

G04528362

Courtesy of DAIMLERCHRYSLER CORP.
