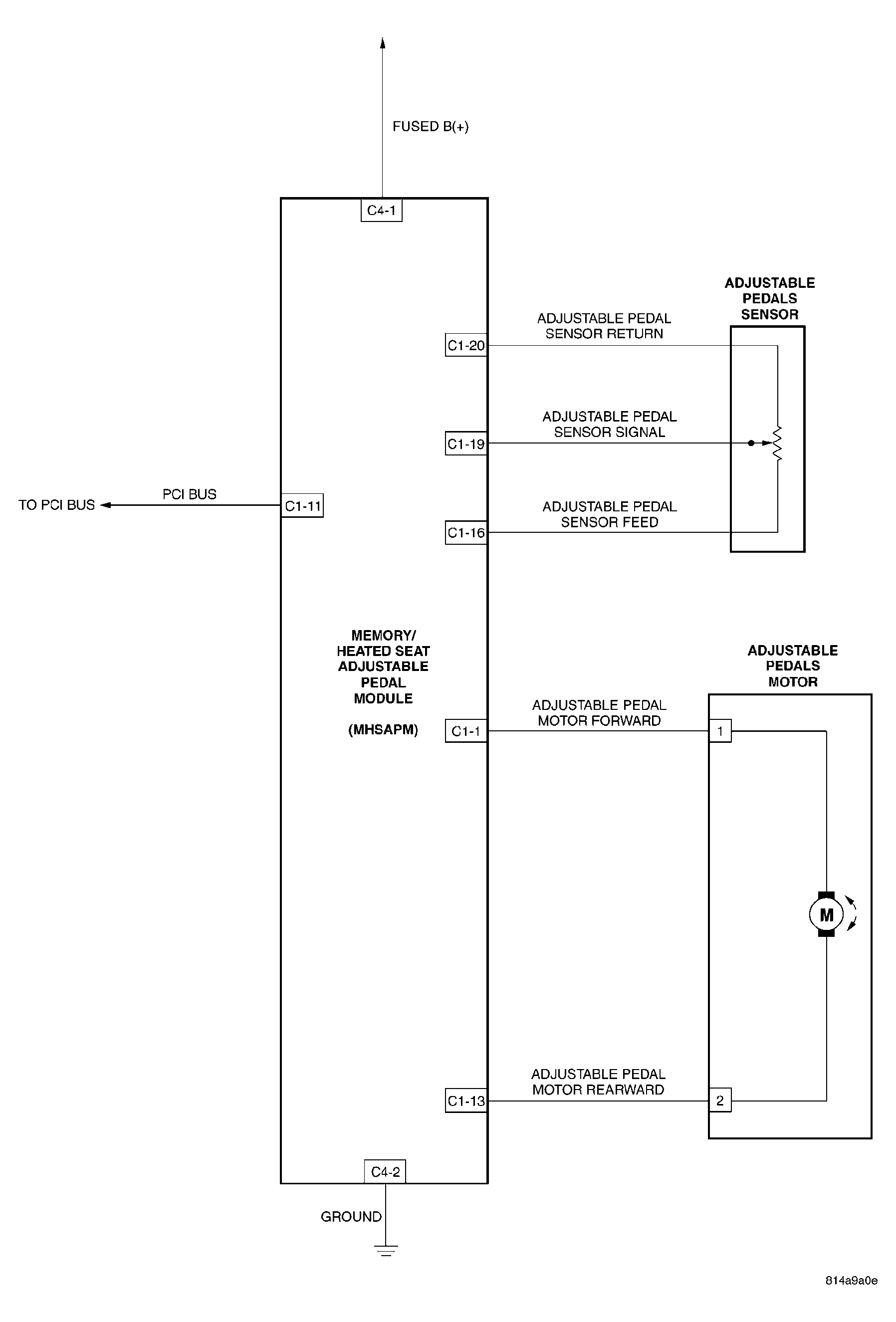

Home >> Chrysler >> 2005 >> Pacifica Limited >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Component Locations, Connector PINOUTS, Schematic Diagrams >> Schematic Diagrams >> Adjustable Pedal System
