Telecommunications - Hands Free System

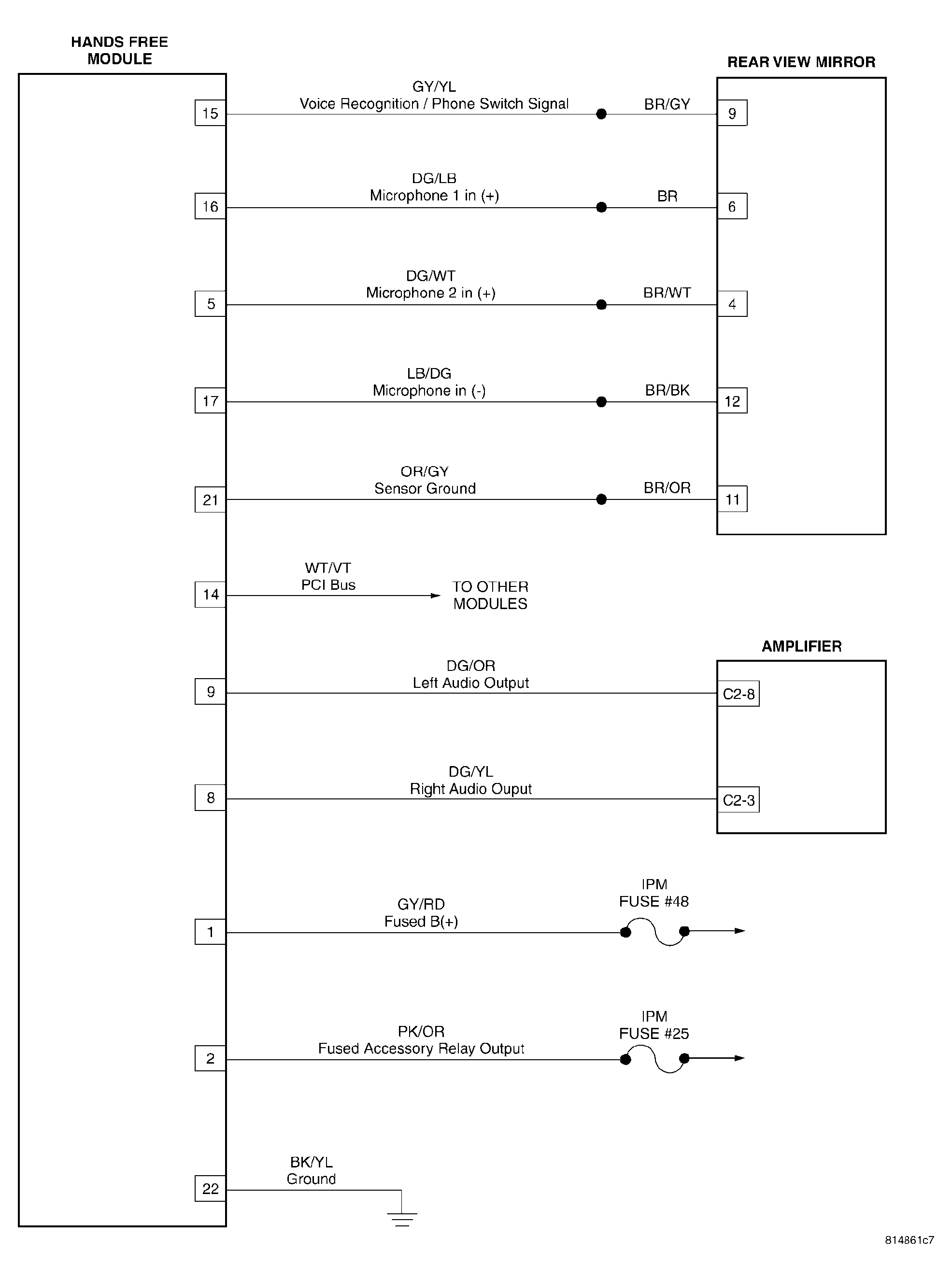

Fig 1: Telecommunications - Hands Free System Schematic Diagram

G04528386

Courtesy of DAIMLERCHRYSLER CORP.
