Speaker-Center Instrument Panel - Black 2 Way

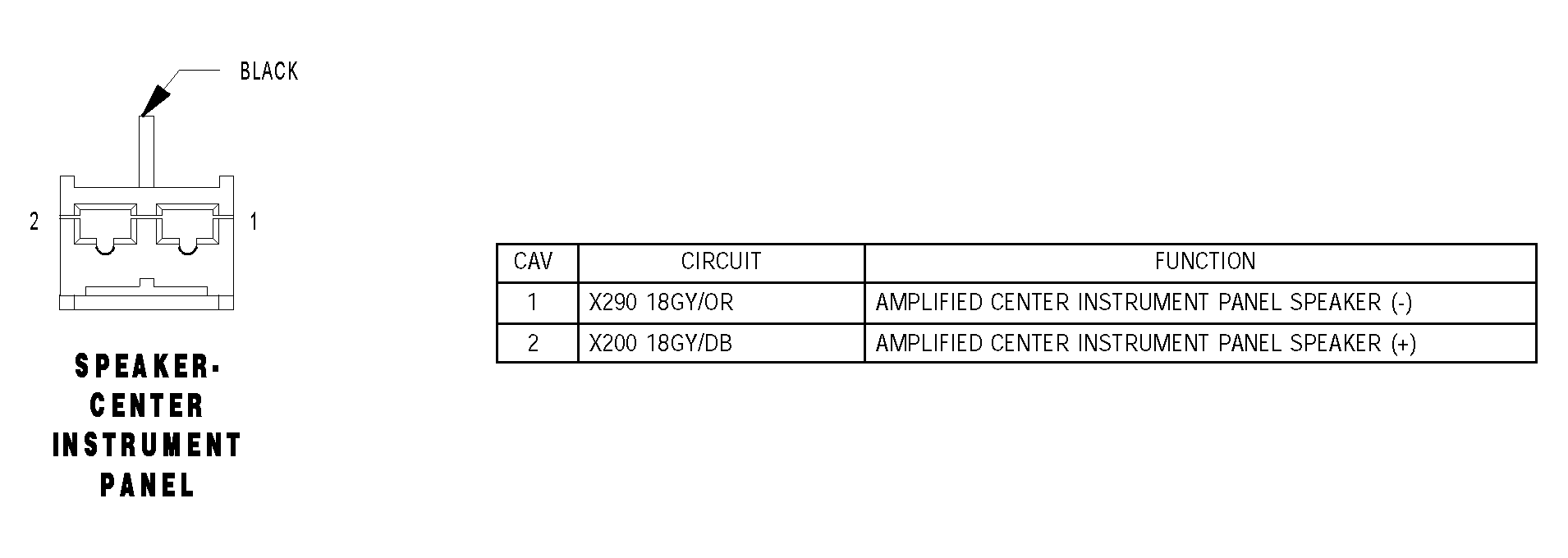

Fig 1: Identifying Speaker-Center Instrument Panel - Black 2 Way Connector Pinouts

G04528342

Courtesy of DAIMLERCHRYSLER CORP.
